Cylinder Head Assembly: Specifications

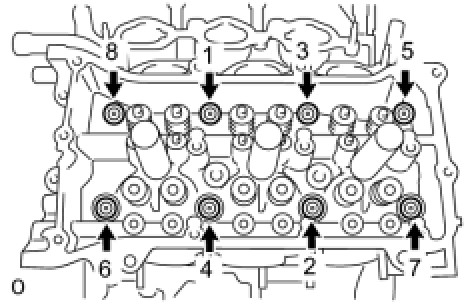

RH Cylinder Head bolts





First Pass 36 Nm (367 kgf-cm, 27 ft-lbf)
Second Pass Tighten 90°.
Final Pass Tighten 90°.

LH Cylinder Head Bolts





First Pass 36 Nm (367 kgf-cm, 27 ft-lbf)
Second Pass Tighten 90°.
Final Pass Tighten 90°.

Cylinder Head Bolt (Outside Diameter (measuring point: 103 mm (4.06 in.)))
Standard 10.85 to 11.00 mm (0.4272 to 0.4330 in.)
Minimum 10.70 mm (0.4212 in.)

Cylinder Head Lower Warpage
Standard 0.05 mm (0.00197 in.)
Maximum 0.10 mm (0.00394 in.)

Intake Warpage
Standard 0.08 mm (0.00315 in.)
Maximum 0.10 mm (0.00394 in.)

Exhaust Warpage
Standard 0.08 mm (0.00315 in.)
Maximum 0.10 mm (0.00394 in.)

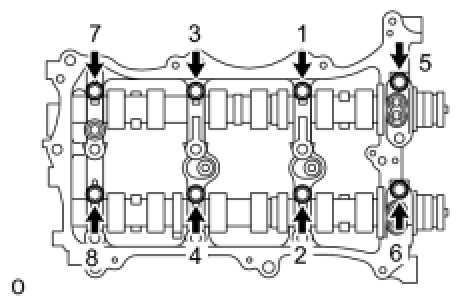

Camshaft Bearing Cap (for Bank 1) 10 Nm (102 kgf-cm, 7 ft-lbf)

CAMSHAFT HOUSING SUB-ASSEMBLY RH

Install the camshaft housing sub-assembly RH and tighten the 12 bolts in the order shown in the illustration.

RH:

Torque : 28 Nm (286 kgf-cm, 21 ft-lbf)

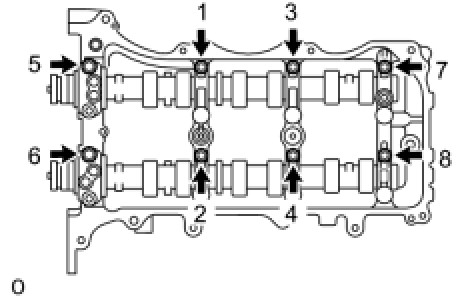

Camshaft Bearing Cap (for Bank 2) 10 Nm (102 kgf-cm, 7 ft-lbf)

CAMSHAFT HOUSING SUB-ASSEMBLY LH

Install the camshaft housing sub-assembly LH and tighten the 13 bolts in the order shown in the illustration.

LH:

Torque : 28 Nm (286 kgf-cm, 21 ft-lbf)
