System Diagram
System Diagram

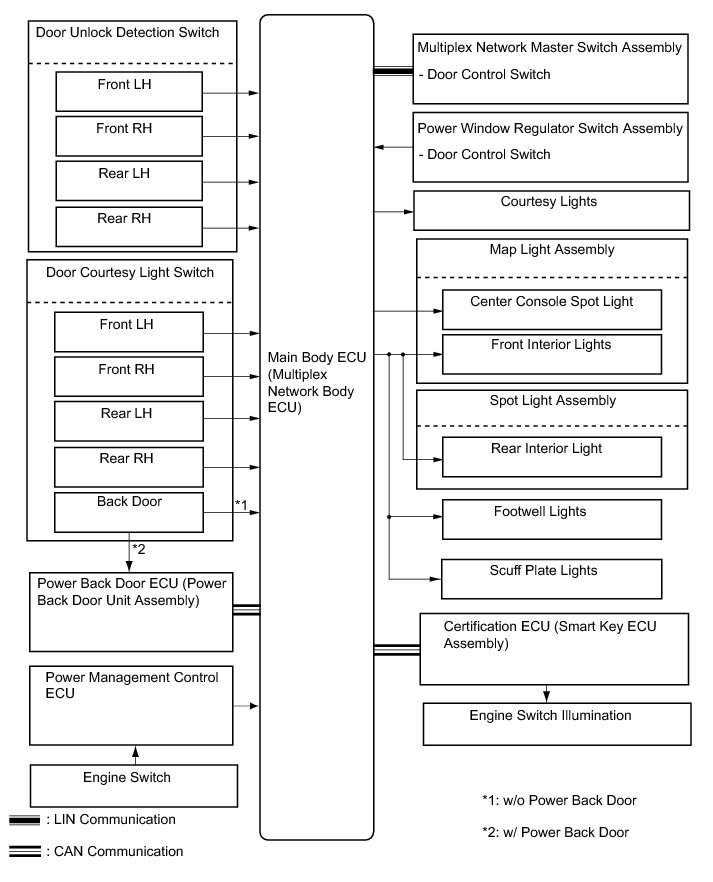

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM
1.
ILLUMINATED ENTRY SYSTEM
