System Diagram
U660E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

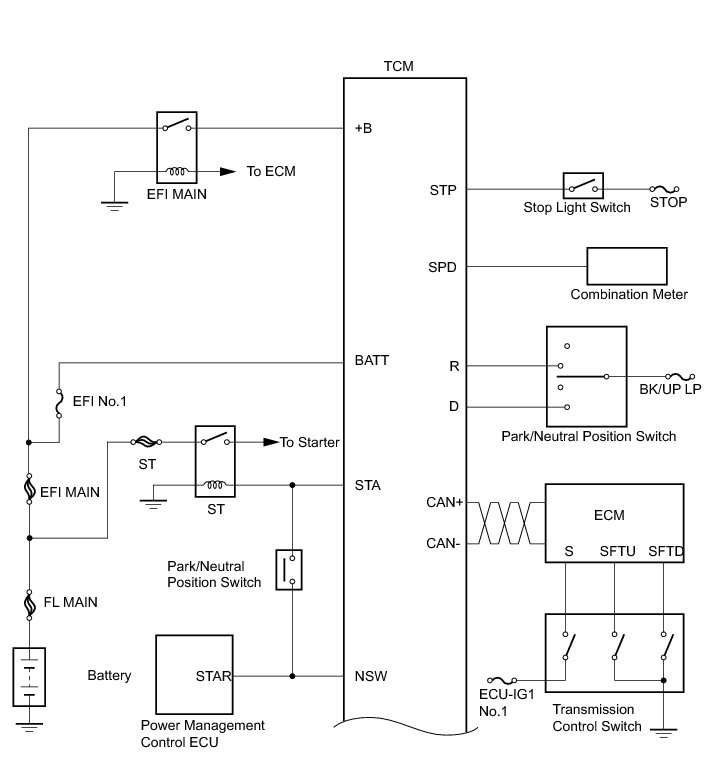

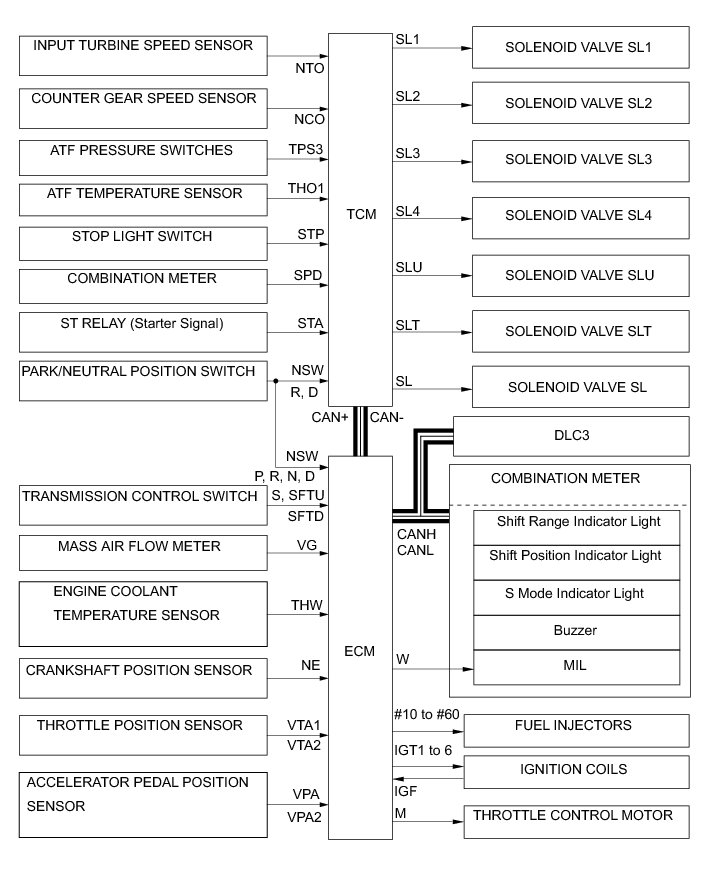

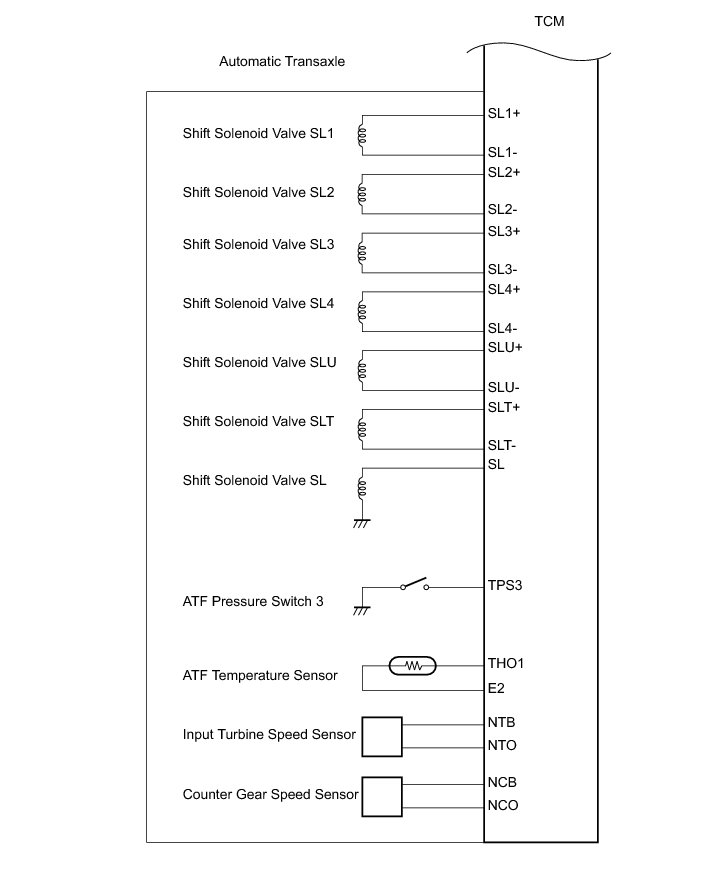

The configuration of the electronic control system in the U660E automatic transaxle is as shown in the following chart.
U660E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM
The configuration of the electronic control system in the U660E automatic transaxle is as shown in the following chart.
