System Description
METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION
1. OUTLINE OF COMBINATION METER ASSEMBLY

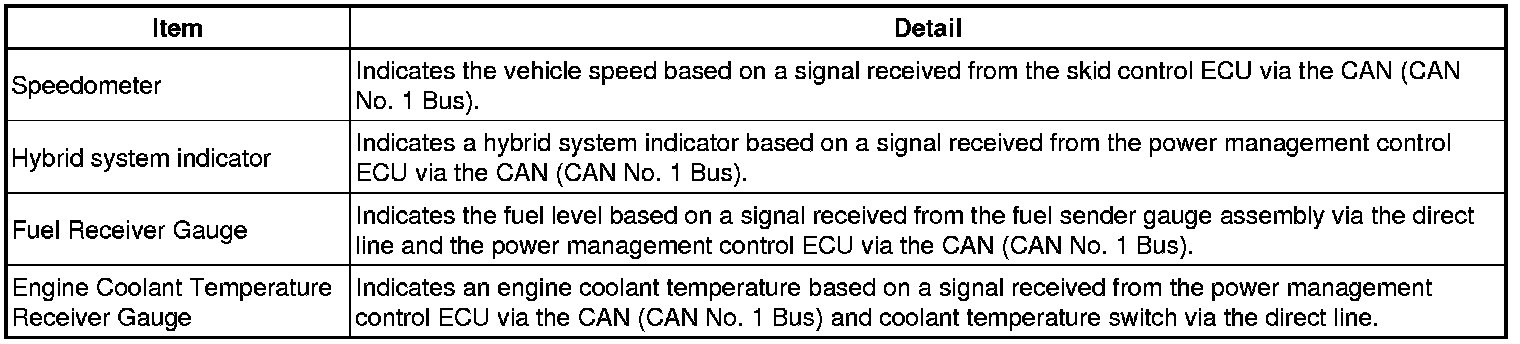

(a) Meter or Gauge

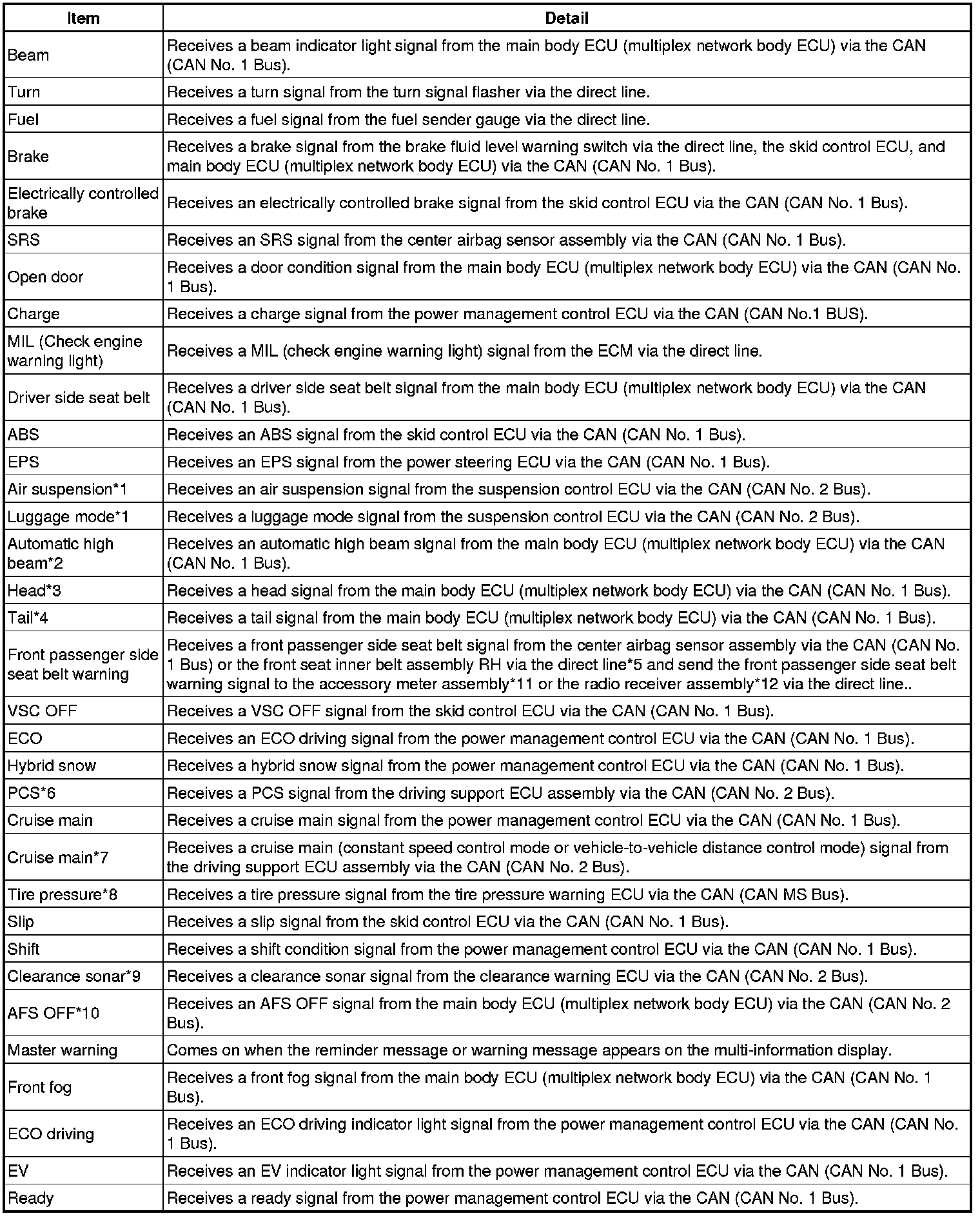

(b) Warning or Indicator
* *1: w/ Air Suspension
* *2: w/ Automatic High Beam System
* *3: for U.S.A.
* *4: except U.S.A.
* *5: w/o Occupant Classification System
* *6: w/ Pre-collision System
* *7: w/ Dynamic Radar Cruise Control System
* *8: w/ Tire Pressure Warning System
* *9: w/ Intuitive Parking Assist System
* *10: w/ AFS
* *11: w/o Navigation System
* *12: w/ Navigation System

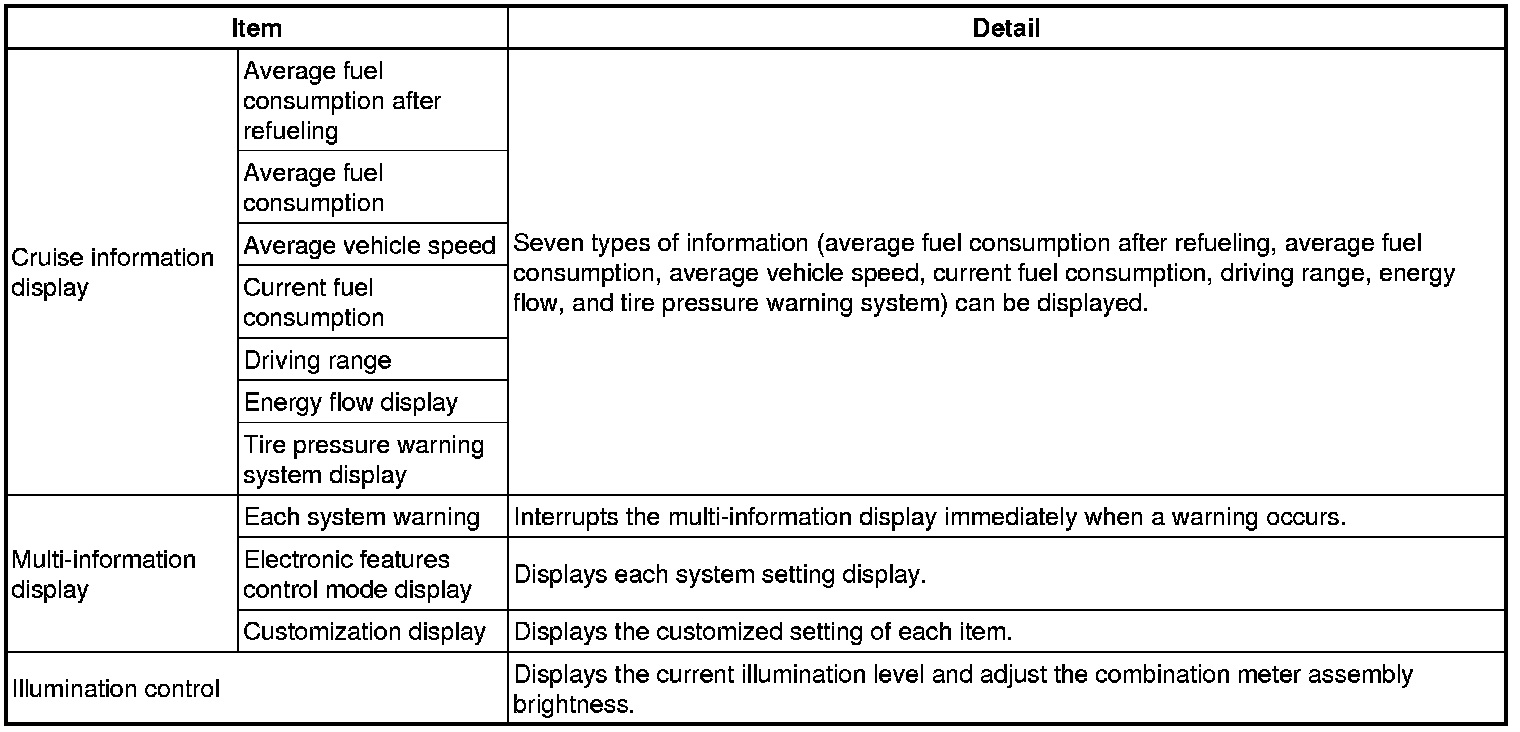

2. MULTI-INFORMATION DISPLAY
3. MULTI-INFORMATION DISPLAY FLOW CHART
(a) Multi-information display flow chart

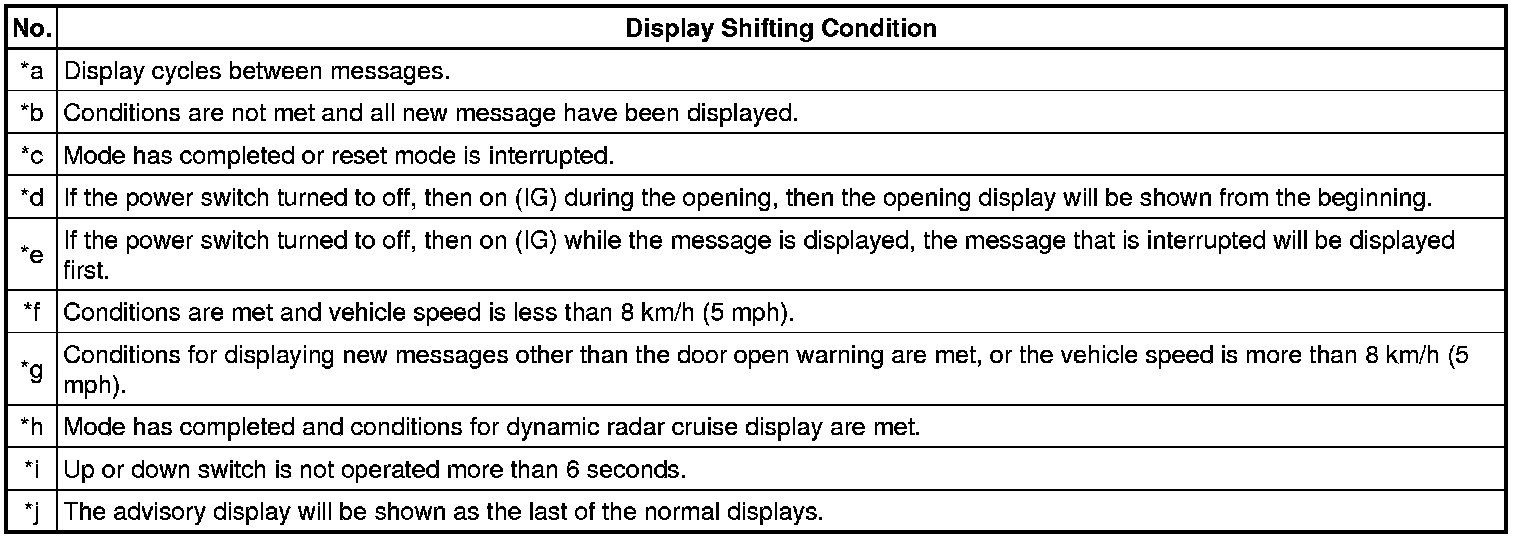

Display Shifting Condition:

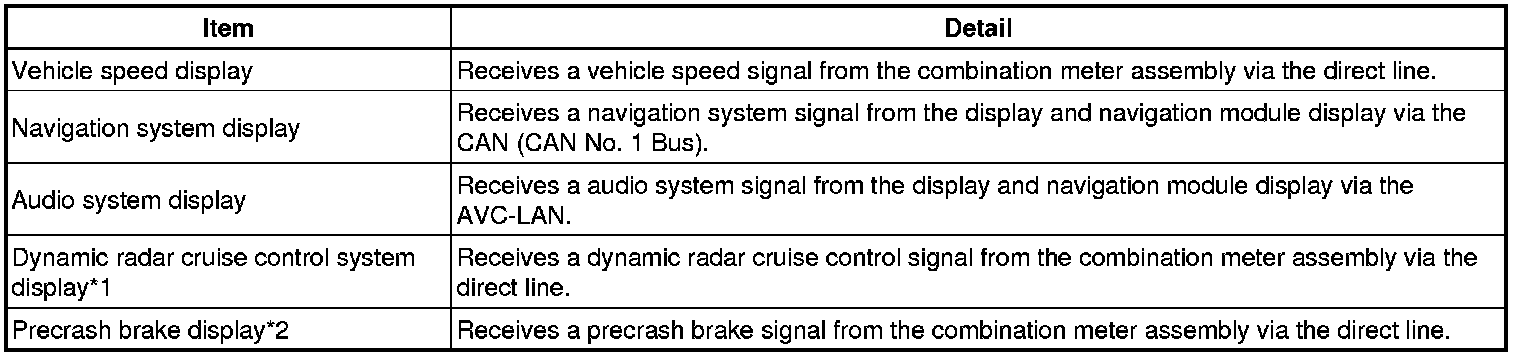

4. HEADUP DISPLAY (COMBINATION METER MIRROR ECU)
* *1: w/ Dynamic Radar Cruise Control System
* *2: w/ Pre-collision System
5. EACH WARNING DISPLAY
(a) Each warning display for combination meter assembly
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

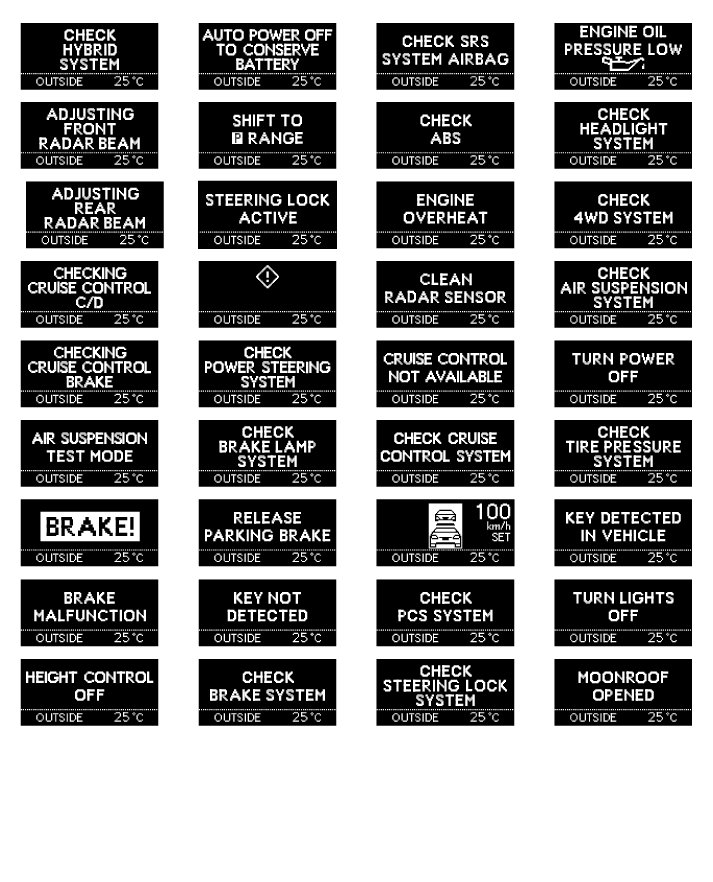

(1) for English
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

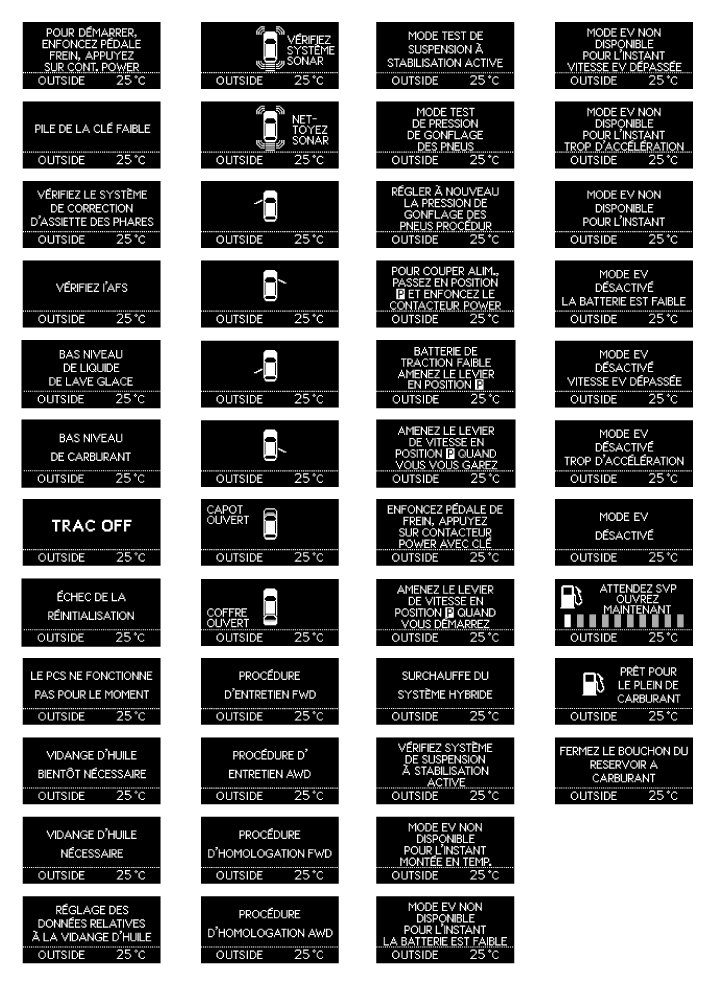

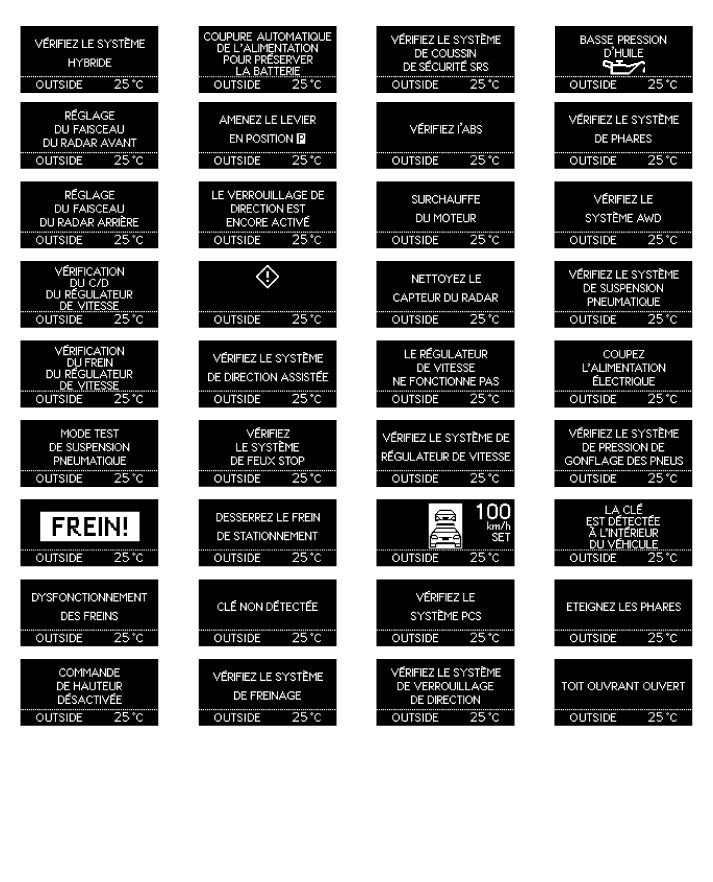

(2) for French
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.
(b) Each display for headup display (combination meter mirror ECU)
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

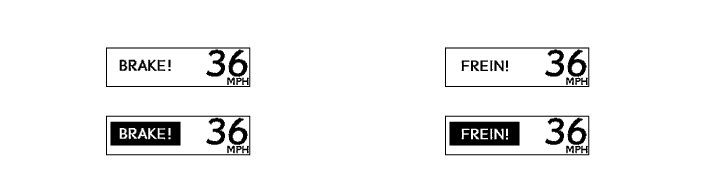

(c) Headup display (combination meter mirror ECU) for another language
HINT
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.

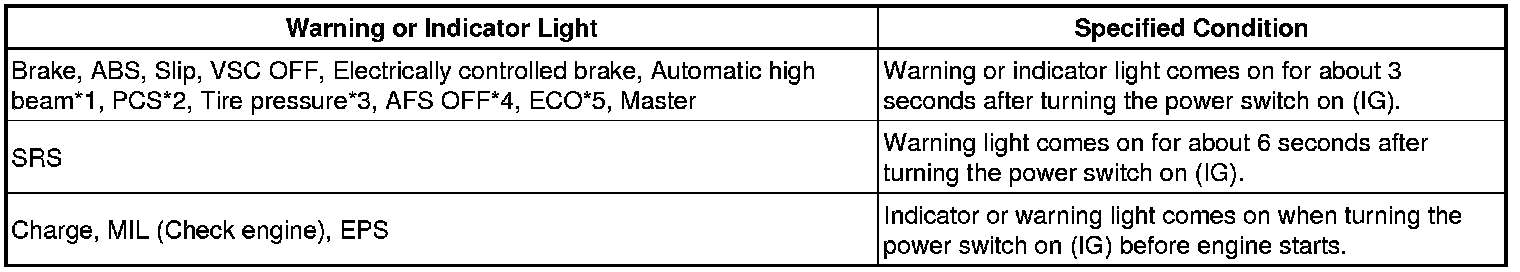

6. LED INITIAL CHECK
(a) Check the illumination function of the warning or indicator lights listed below when turning the power switch on (IG).
OK:
* *1: w/ Automatic High Beam System
* *2: w/ Pre-collision System
* *3: w/ Tire Pressure Warning System
* *4: w/ AFS
* *5: When the ECO driving indicator setting is off, the meter CPU does not perform the LED initial check.
