Timing Cover






Timing Cover Fasteners

Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts.









Fully tighten the 2 bolts





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Fully tighten the 2 bolts





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Fully tighten the 7 bolts and 2 nuts





Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Fully tighten the 12 bolts

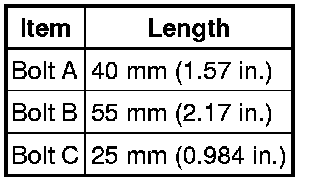

Bolt A - Torque 43 Nm (438 kgf-cm, 32 ft-lbf)

Except bolt A - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Install a new chain cover plate gasket and the chain cover plate with the 4 bolts.

Torque : 9.1 Nm (93 kgf-cm, 81 in-lbf)
