Component Inspection

INSPECTION

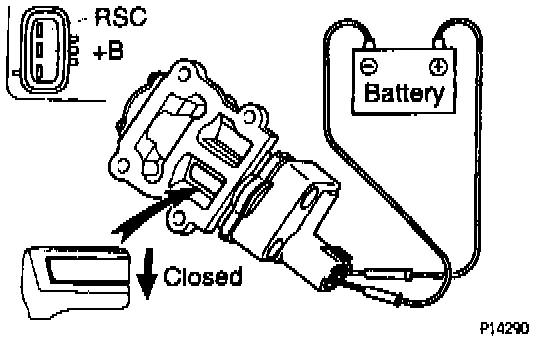

1. Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSC, and check that the valve is closed.





2. Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSO, and check that the valve is open.
3. If operation is not as specified. replace the Idle Air Control Valve.
