Home
>>
Lexus
>>
1994
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Standard Values of ECM Terminals

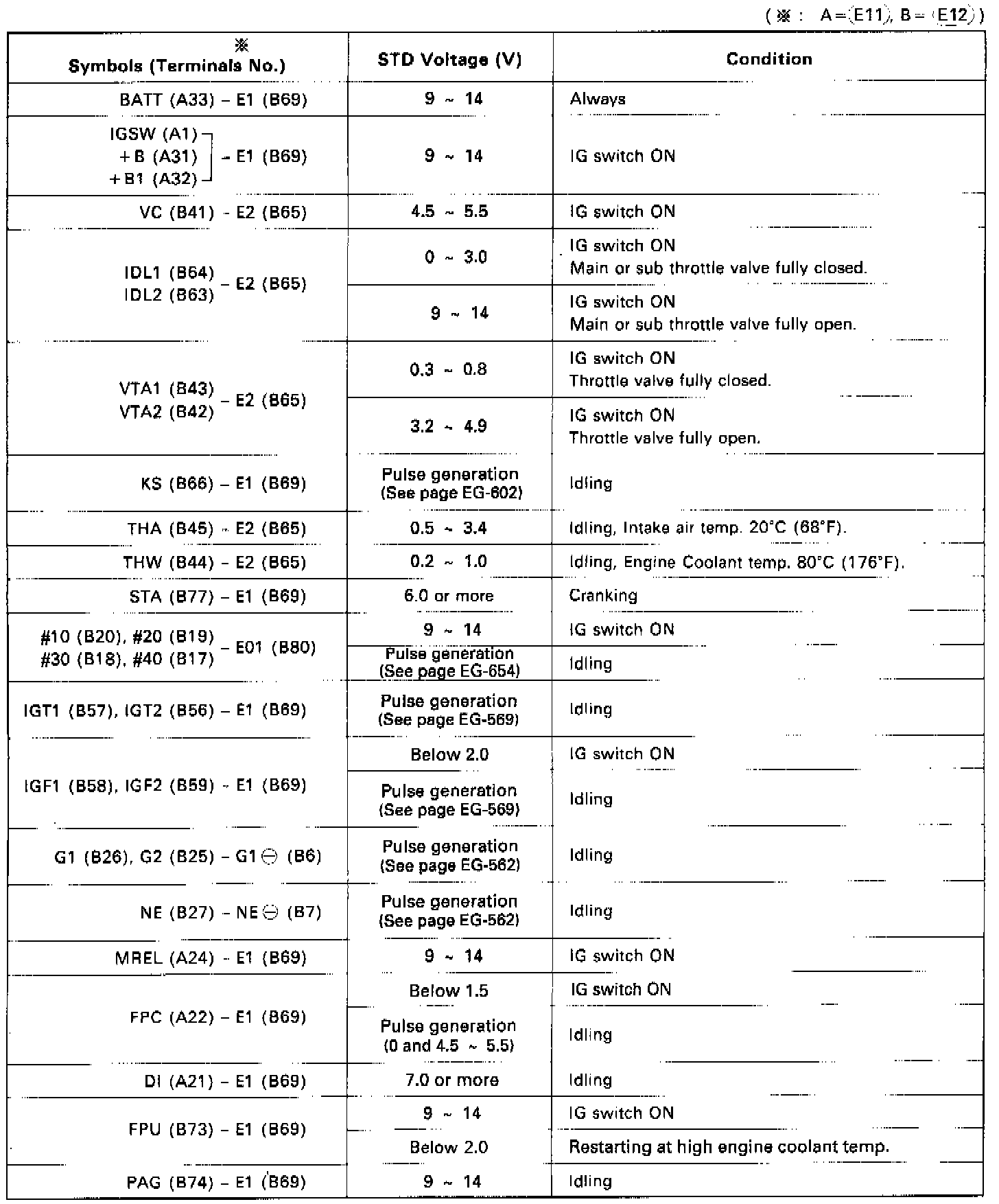

Standard Values of ECM Terminals
Chart 1 of 2
Chart 2 of 2
