Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
1995
>>
ES 300 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

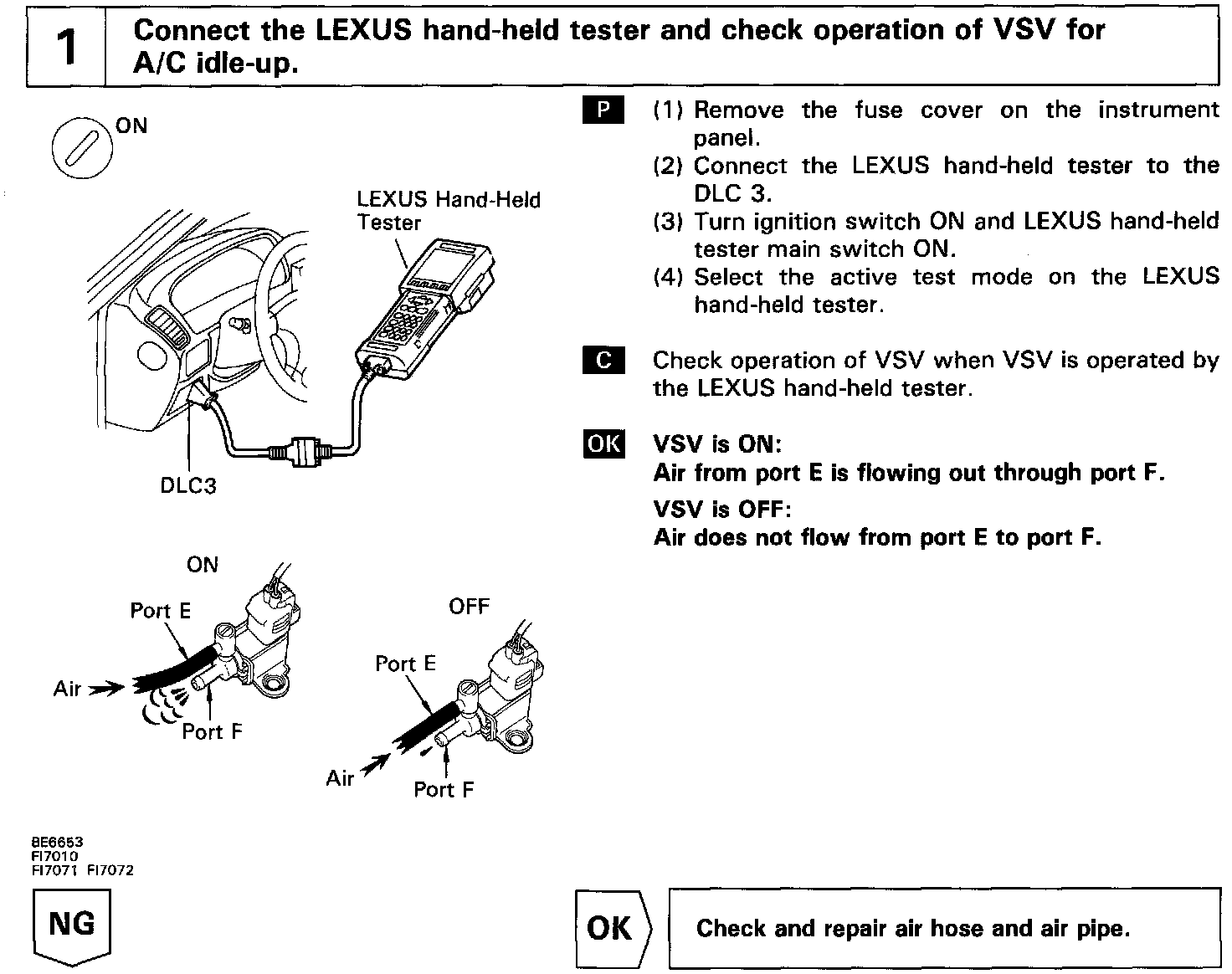

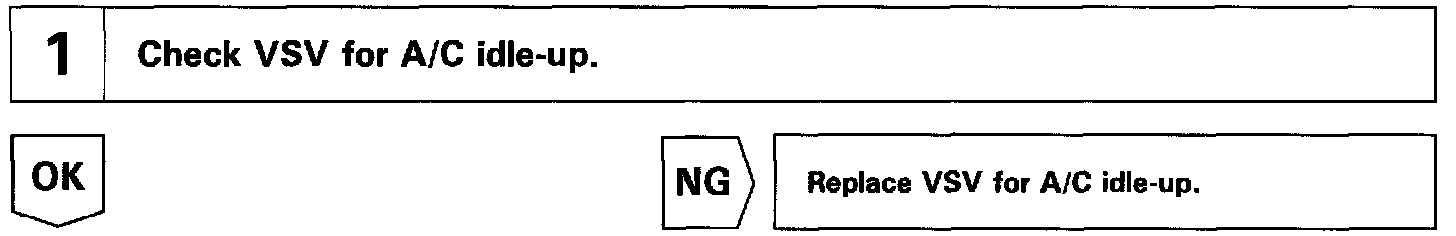

A/C Idle Up Circuit
>>
Inspection Procedure
Inspection Procedure
LEXUS HAND-HELD TESTER
NON-TROUBLE CODE CHARTS
OBD II SCAN TOOL (excluding LEXUS hand-held tester)
NON-TROUBLE CODE CHARTS
