Air Bag Control Module: Service and Repair
NOTICE:^ Do not open the cover or the case of the ECU and various computers unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electricity.)
^ Never use SRS parts from another vehicle. When replacing parts, replace with new ones.
^ Never reuse the center airbag sensor assembly involved in a collision when the airbag has deployed.
^ Never repair a sensor in order to reuse it.
Center Airbag Sensor Assembly Removal And Installation:
REMOVE AND INSTALL CENTER AIRBAG SENSOR ASSEMBLY
a. Disconnect and connect the connector.
NOTICE: Removal and installation of the connector is done with the sensor assembly installed.
Center Airbag Sensor Assembly Removal And Installation:

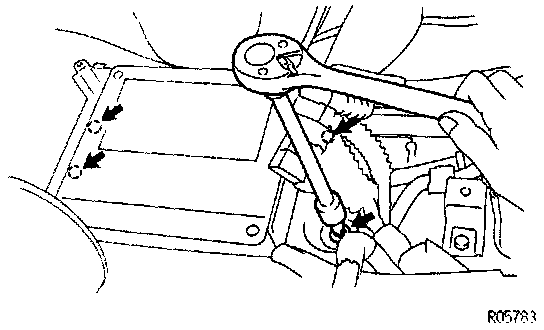

b. Using a torx wrench, loosen and tighten the 4 screws. Torx wrench: T40 (Part No. 09042-00020 or locally manufactured tool)
Torque: 20 N.m (200 kgf.cm, 15 ft. lbf)
NOTICE:
^ Make sure the sensor assembly is installed to the specified torque.
^ If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
^ When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
^ After installation, shake the sensor assembly to check that there is no looseness.
