Fail-Safe Operation
Fail-Safe Operation

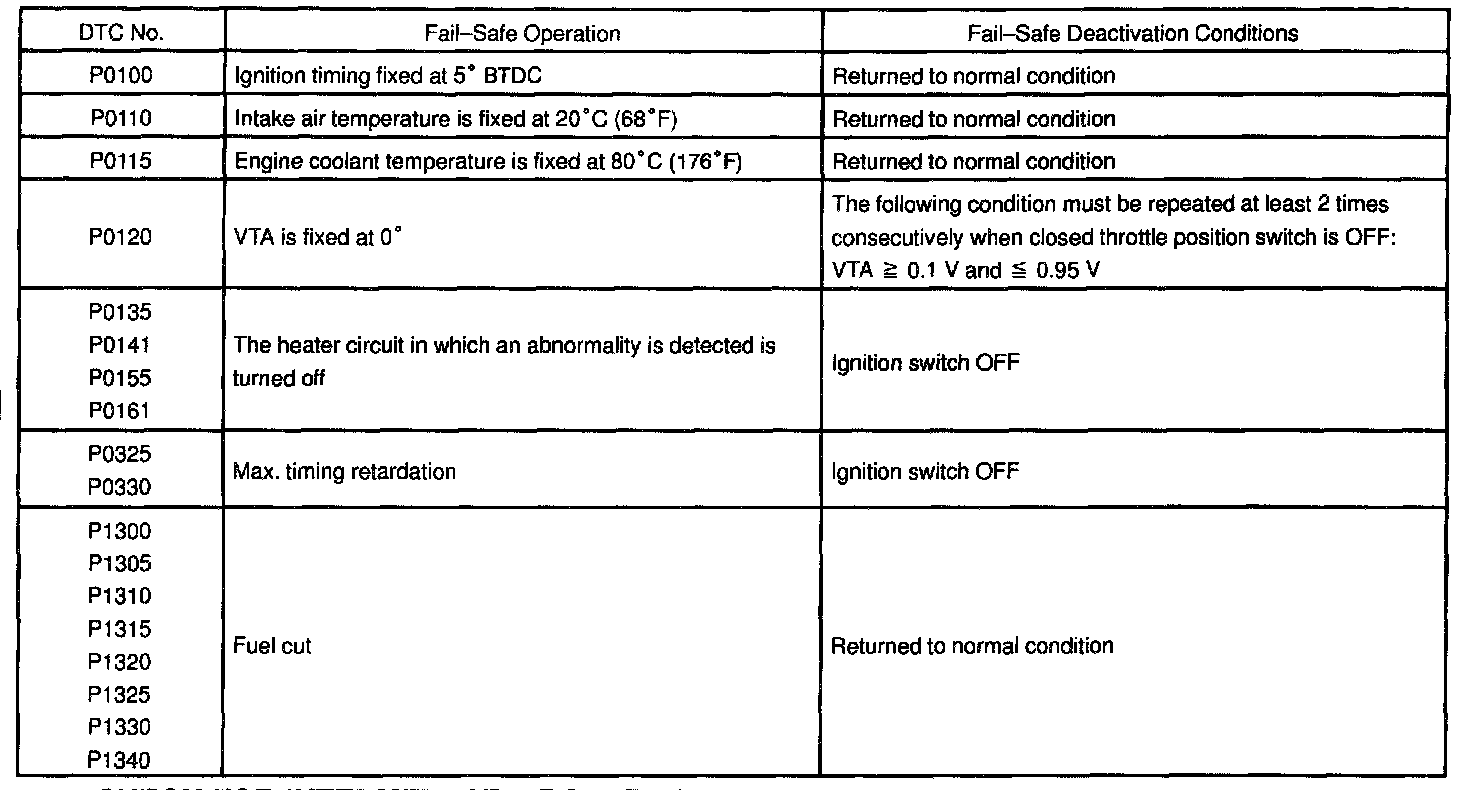

FAIL-SAFE CHART
If any of the codes shown are recorded, the ECM enters fail-safe mode.
