Actuator Power Source Circuit

Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the motors.

Wiring Diagram:

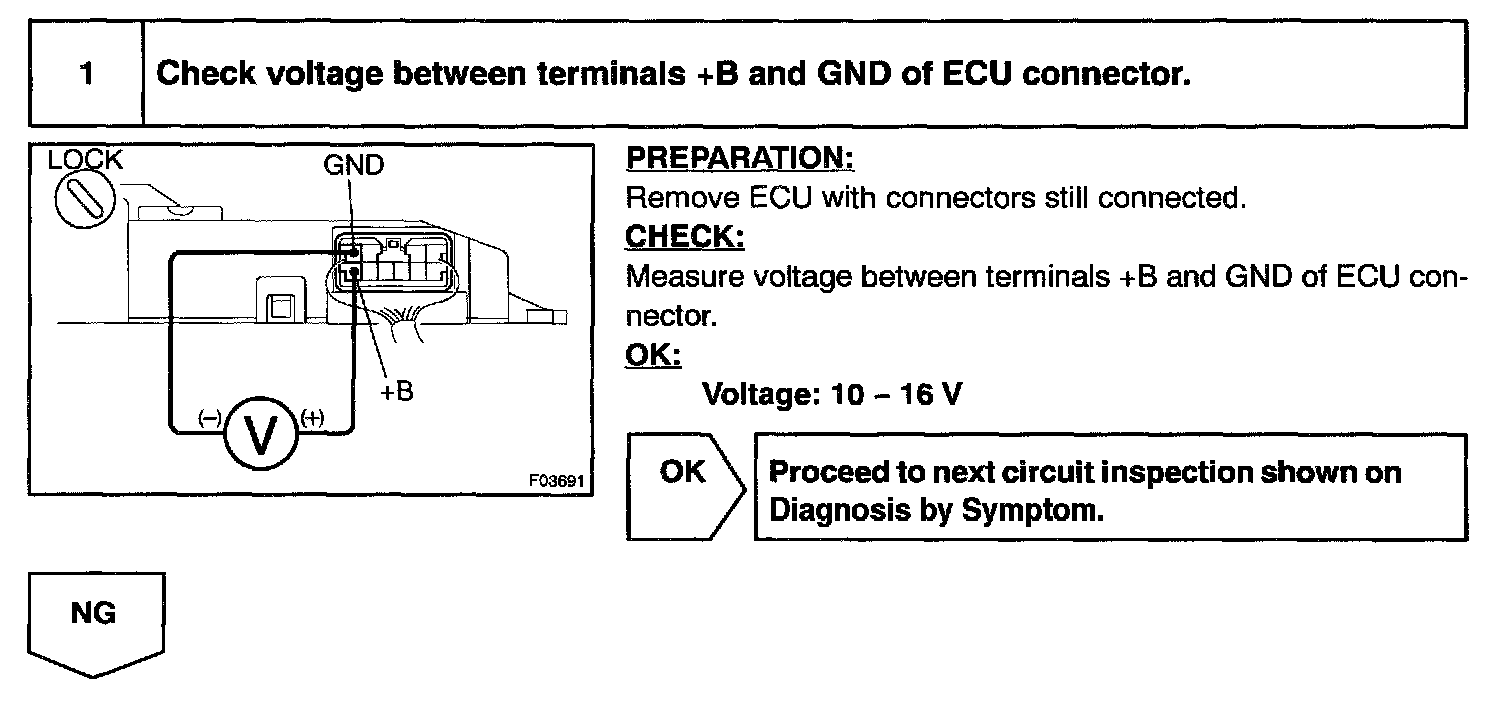

Step 1:




Steps 2 - 3:




INSPECTION PROCEDURE
