Outer Foot Light Circuit

CIRCUIT DESCRIPTION

The outer foot light is built in the outer mirror assembly.




When the battery voltage is supplied to the terminal as follows, the outer foot light functions accordingly.

Wiring Diagram:

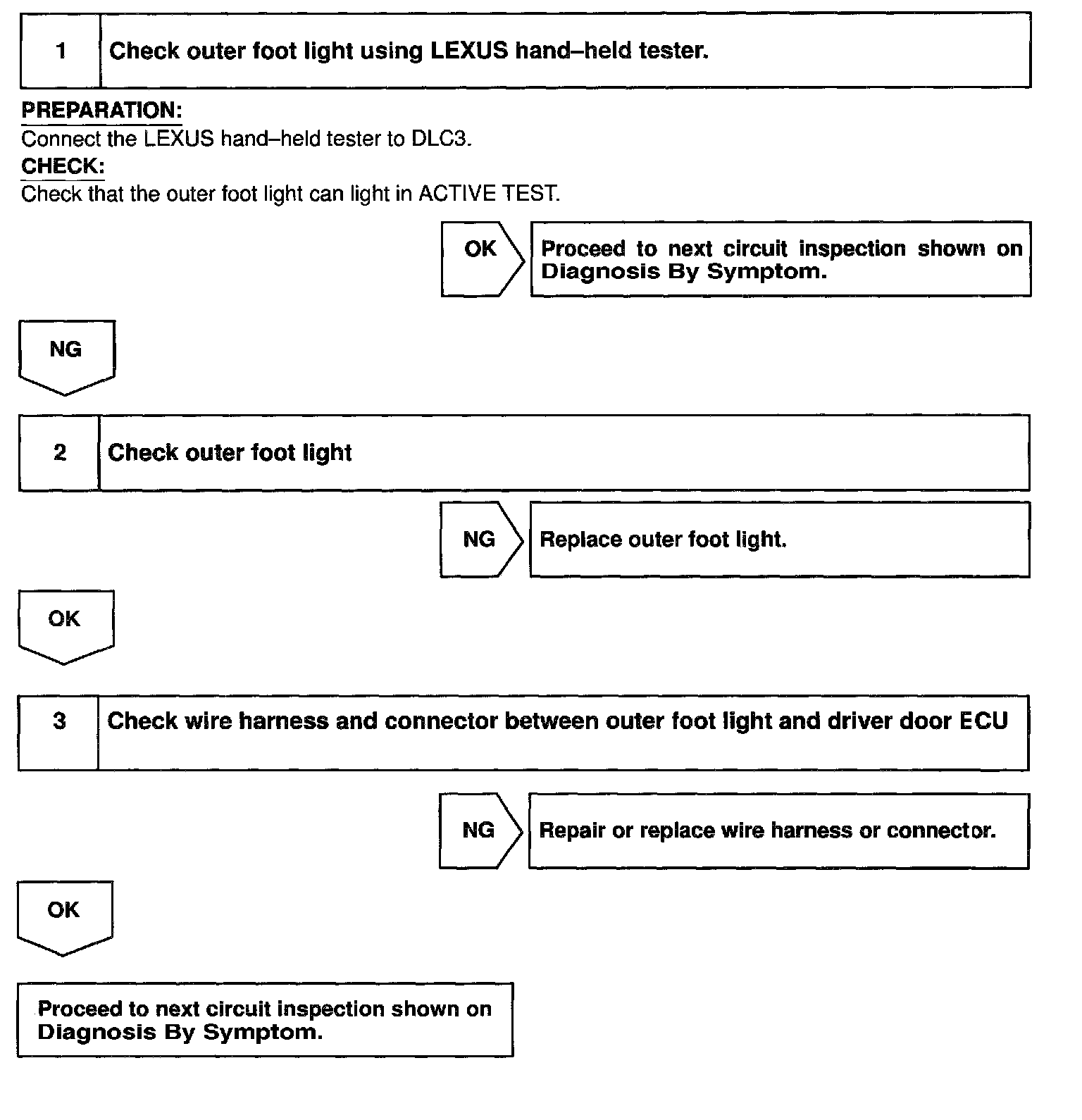

Steps 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
