Wiper Motor Circuit

CIRCUIT DESCRIPTION

The passenger side J/B ECU controls the wiper motor.

Even ECU is in the failure; its circuit structures enables to operate the wiper with "HIGH" mode.

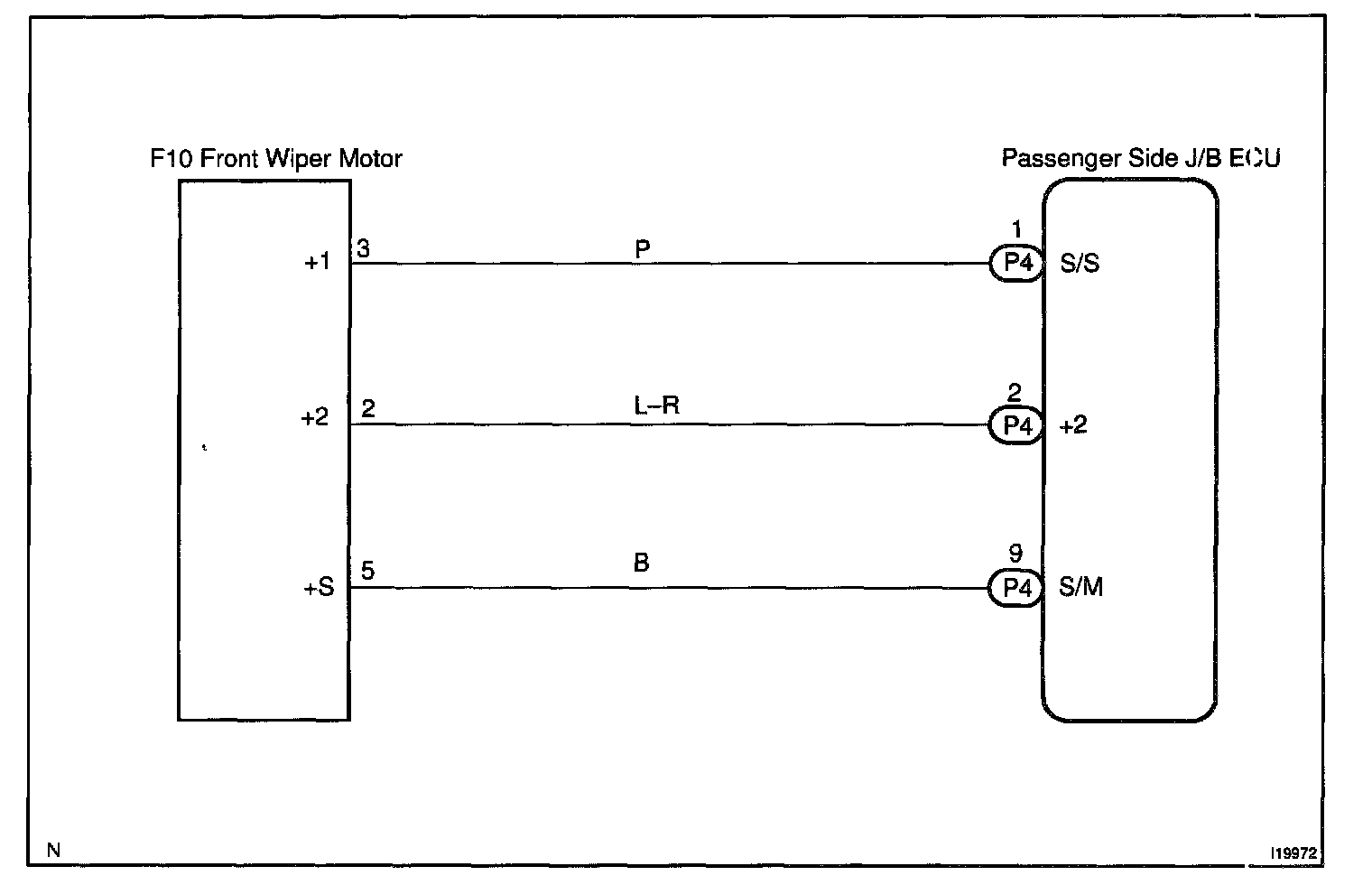

Wiring Diagram:






Steps 1 - 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
