Licence Plate Light Circuit

CIRCUIT DESCRIPTION

Receiving the light control switch TAIL signal from the luggage room J/B ECU makes the licence light come on.

Wiring Diagram:

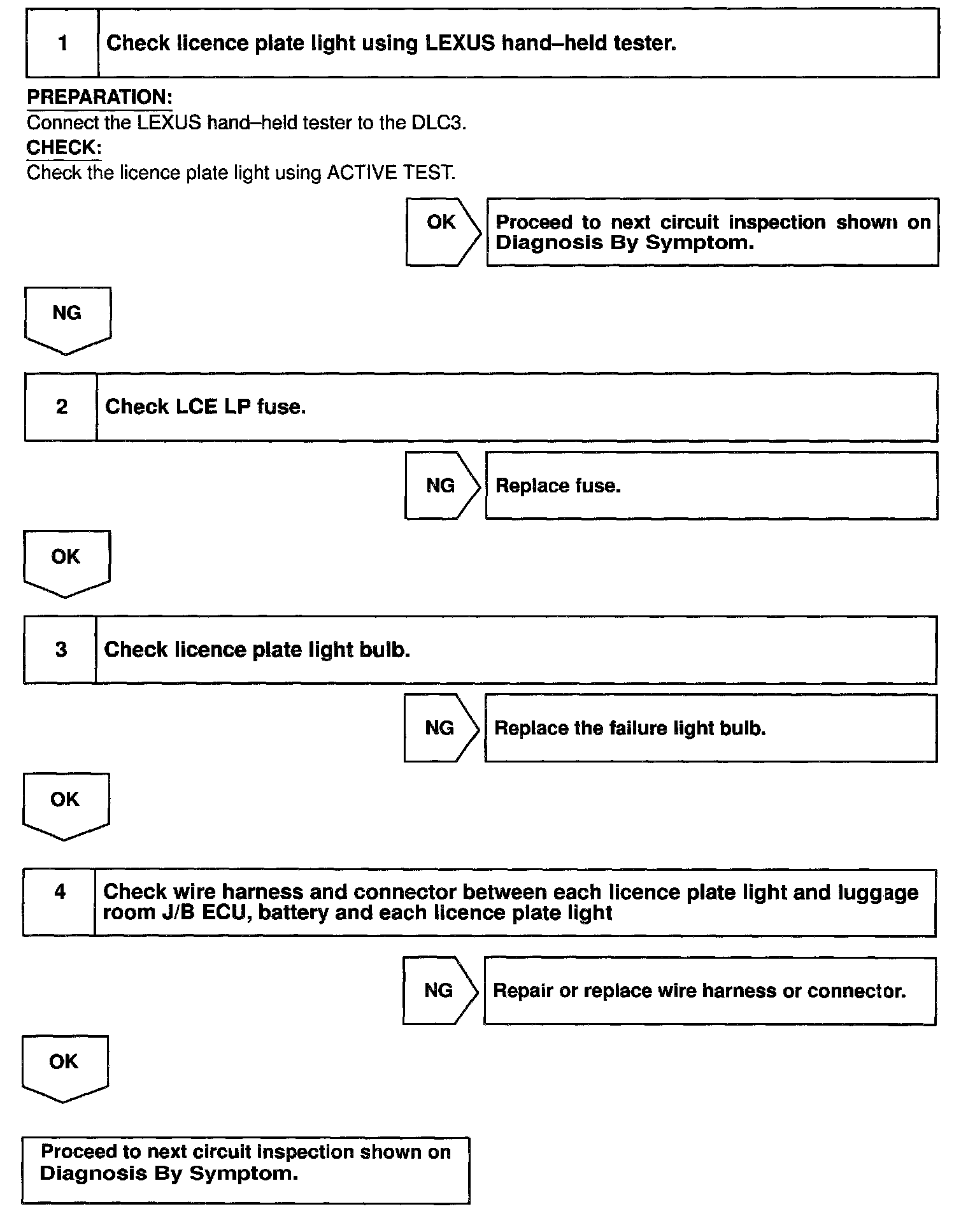

Steps 1 - 4:
