System Specifications

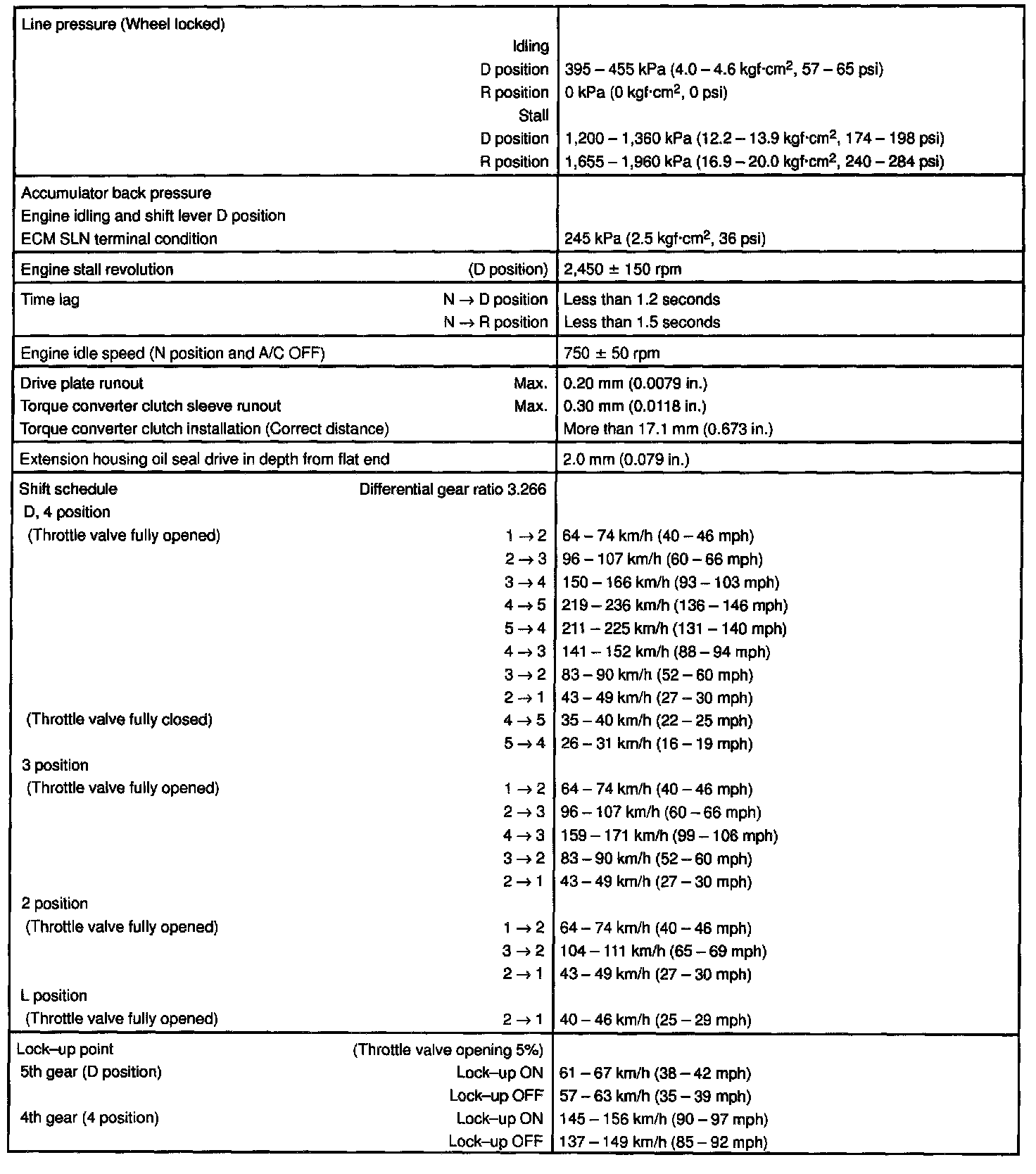

TECHNICAL DATA





AUTOMATIC TRANSMISSION UNIT











FLOOR SHIFT ASSEMBLY
