SFI System

DIAGNOSTIC TROUBLE CODE CHART

P0010 - P0057:

P0058 - P0128:

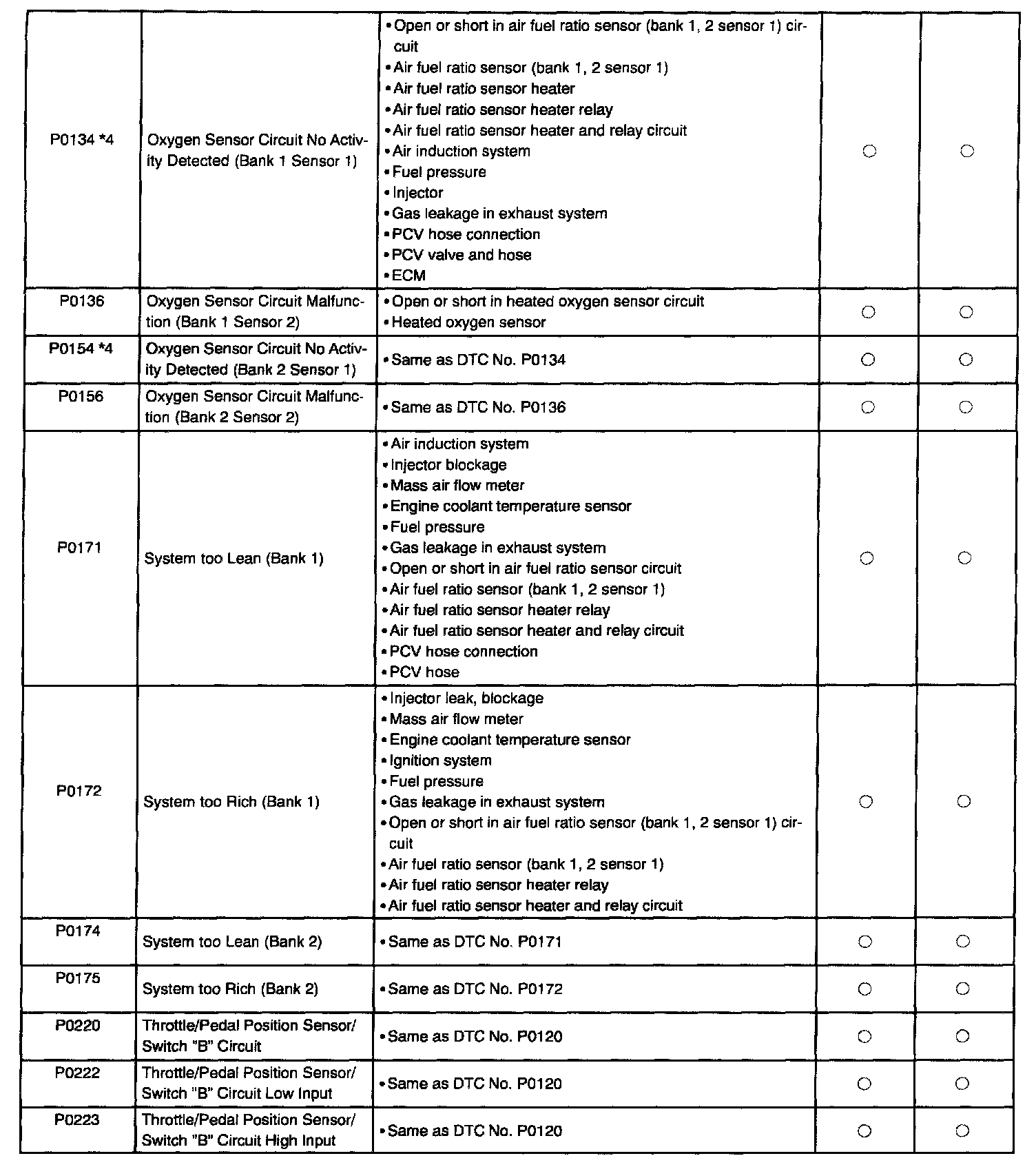

P0134 - P0223:

P0300 - P0430:

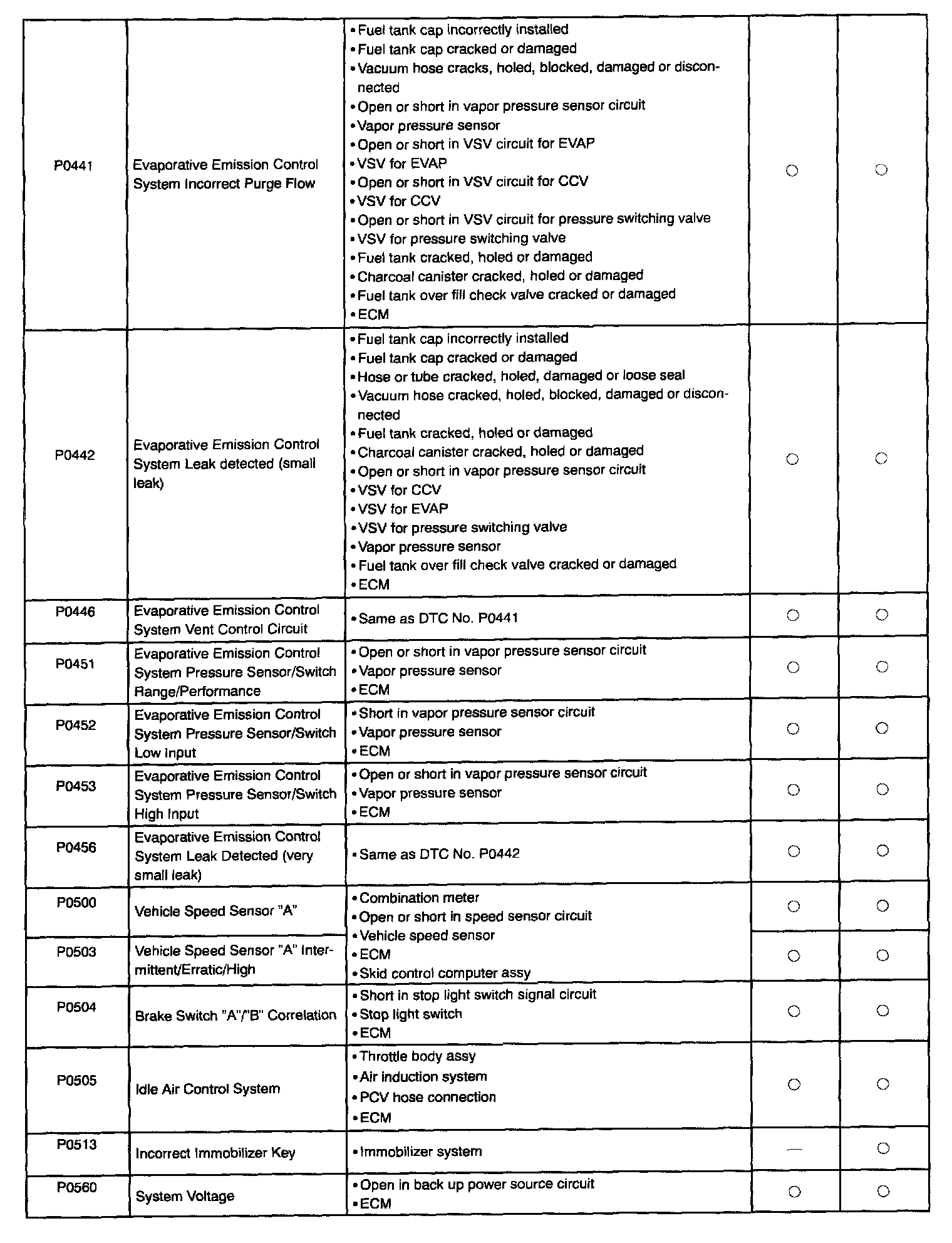

P0441 - P0560:

P0571 - P0796:

P0798 - P2198:

P2237 - B2798:

HINT:
- As for the vehicle for Brazil, Korea, refer to 2002 LEXUS ES300 diagnostic information.
- Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".
