Mirror Position Sensor Circuit (W/ Memory)

CIRCUIT DESCRIPTION
When seat memory switch M1 and M2 are pressed, the memory seat ECU transmits the memorized mirror facing direction multiply to mirror ECU, then the mirror ECU drives the mirror motor

Wiring Diagram:

Step 1 - 2:

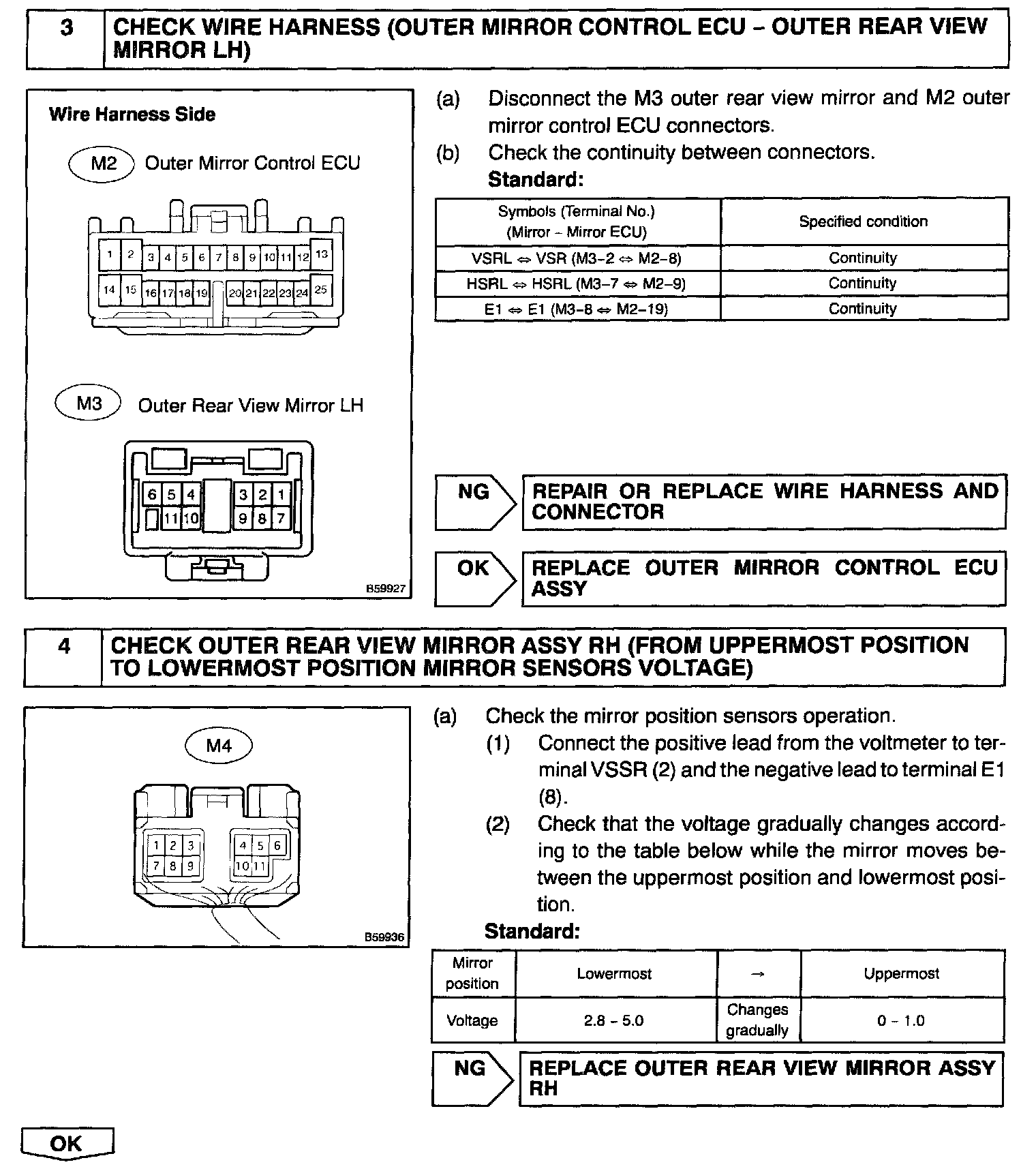

Step 3 - 4:

Step 5 - 6:

INSPECTION PROCEDURE
