Entire Combination Meter Does Not Operate
Entire Combination Meter Does Not Operate
Wiring Diagram:
Step 1:

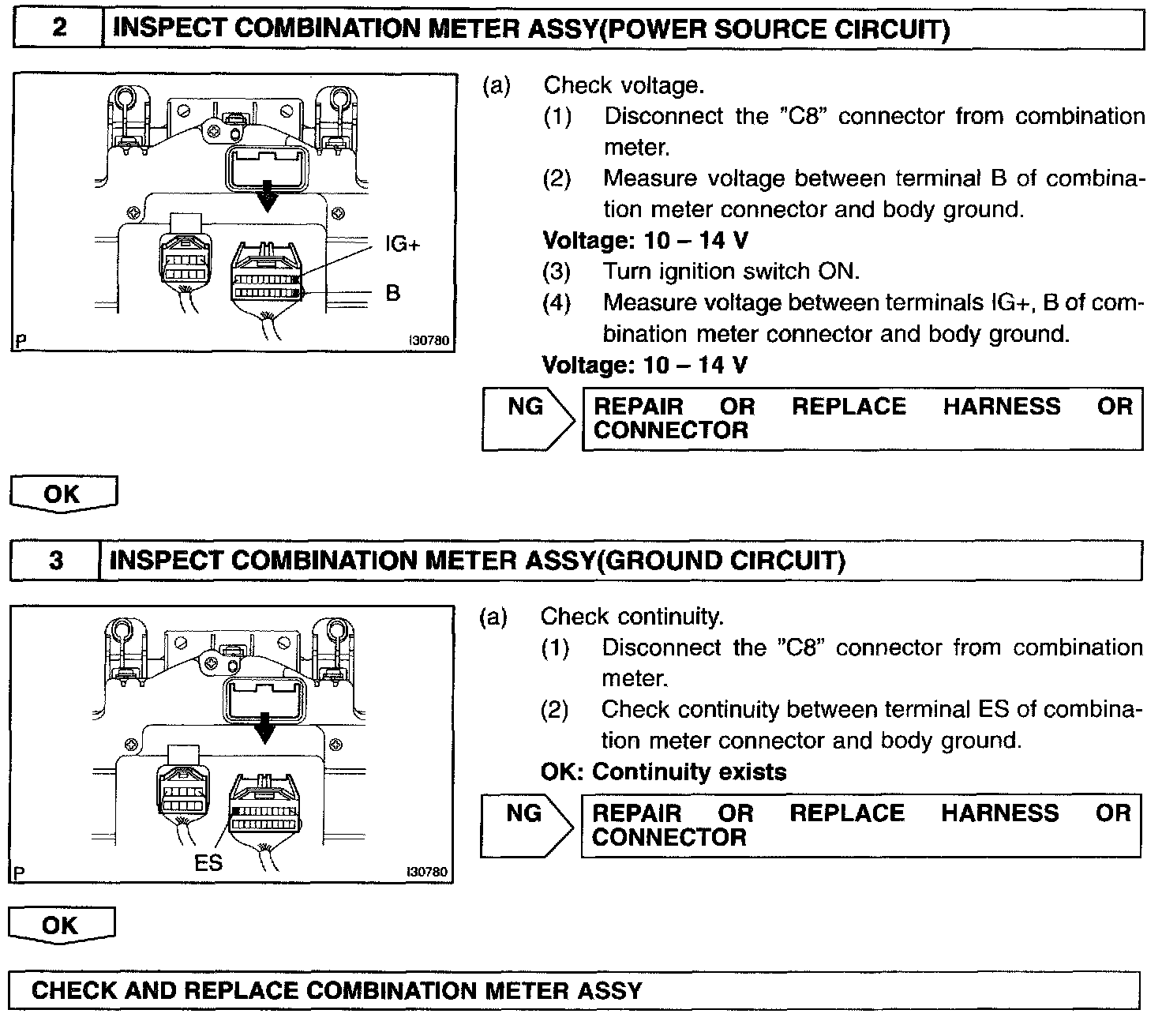

Step 2 - 3:
INSPECTION PROCEDURE
