Parking Brake Switch Circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This is circuit from the parking brake switch to the multi-display.

Wiring Diagram:






Step 1 - 3:

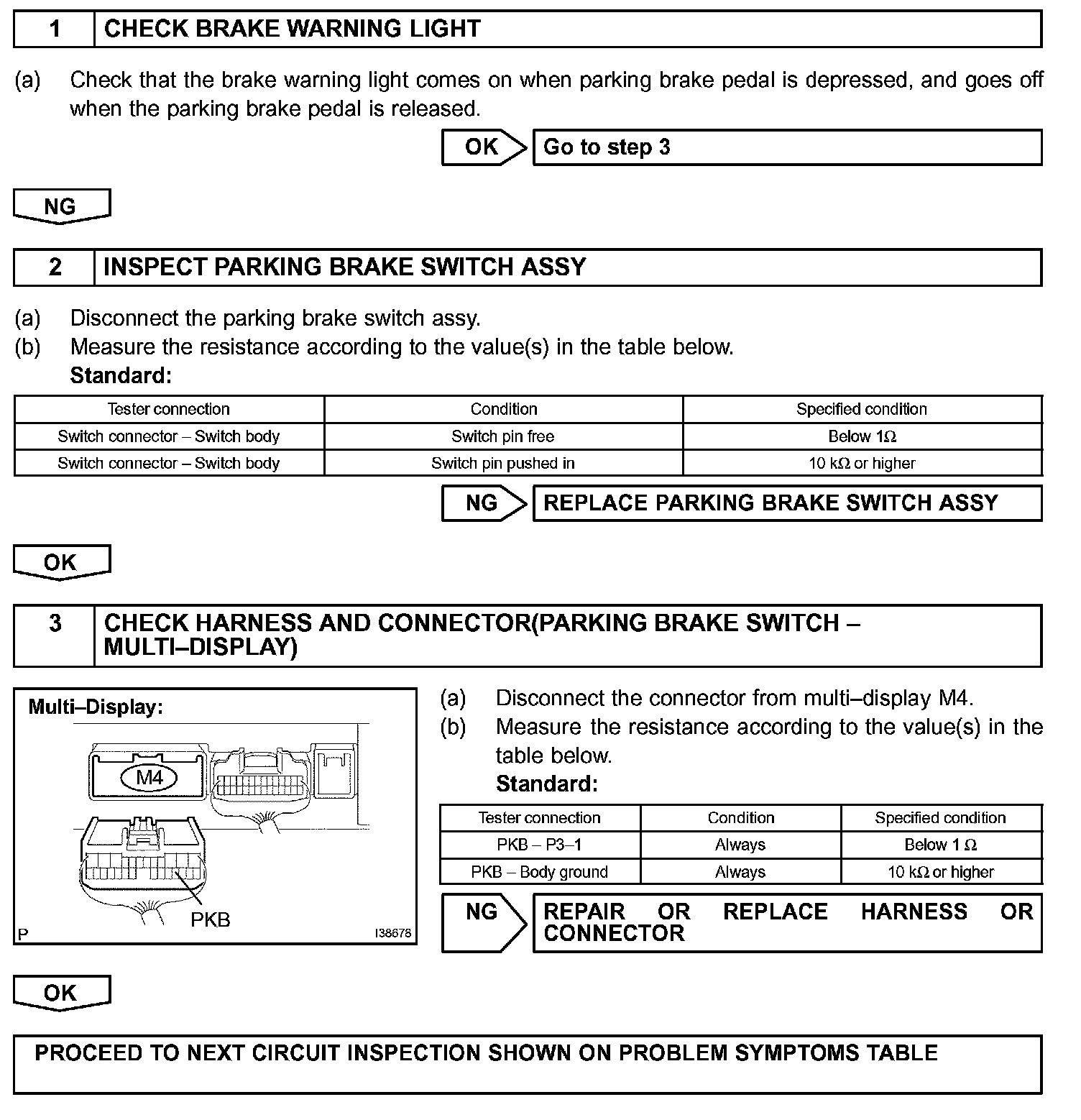

INSPECTION PROCEDURE
