Steering and Suspension
>>
System Diagram
>>
Rear Suspension

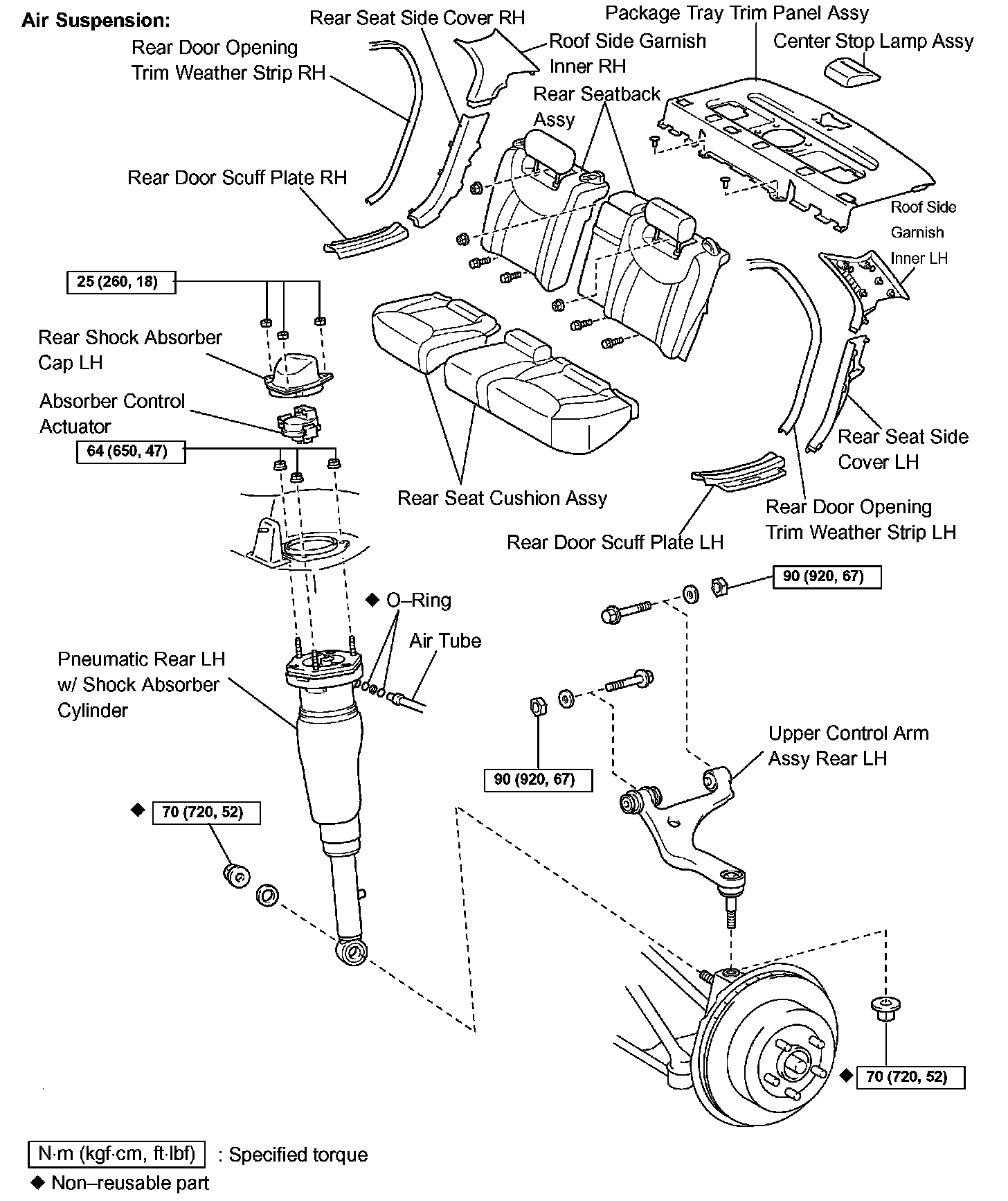

Rear Suspension
REAR
SUSPENSION
COMPONENTS
