Rear Seat Assembly

REAR SEAT ASSEMBLY

Rear Seat Assembly:

Rear Seat Assembly:

DISASSEMBLY

1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

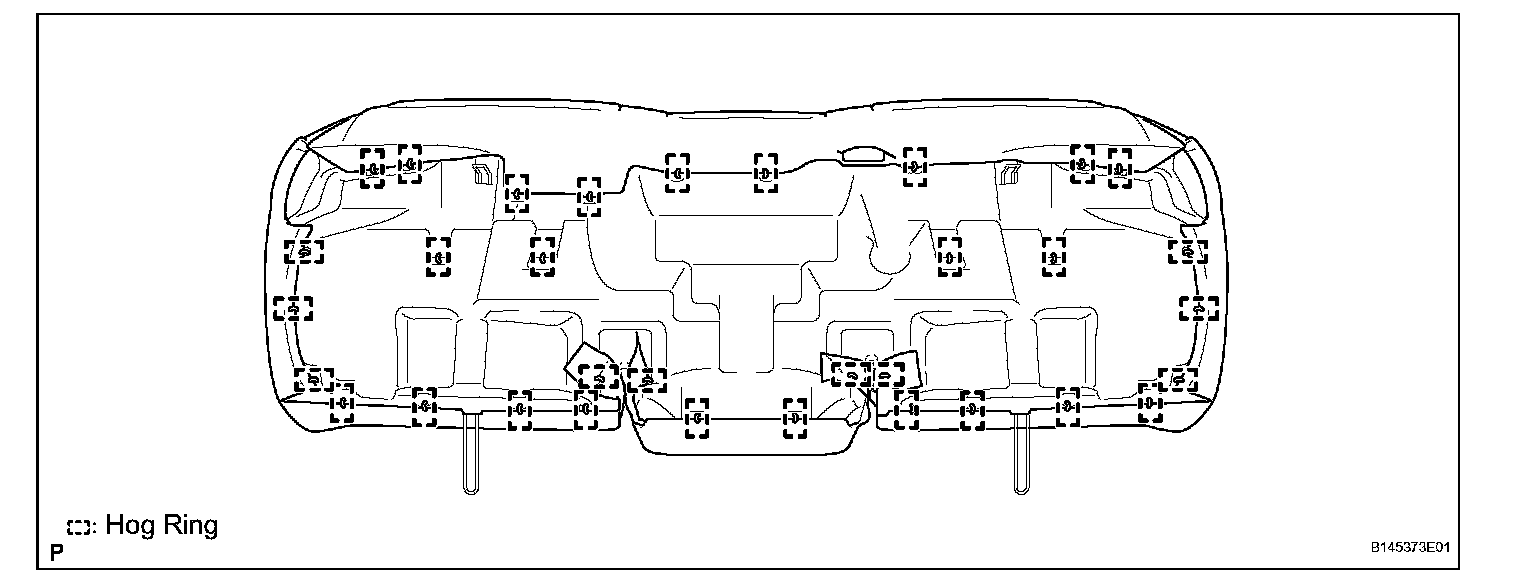

a. Remove the 33 hog rings.





b. Remove the 20 hog rings and seat cushion cover from the seat cushion frame (with pad).





2. REMOVE INNER CENTER SEAT ARMREST PLATE





a. Disengage the 11 claws and remove the inner center seat armrest plate.

3. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY





a. Remove the 2 nuts.
b. Disengage the 2 claws and remove the rear center seat armrest assembly.

4. REMOVE REAR SEAT HEADREST SUPPORT
a. Disengage the 6 claws and remove the 3 rear seat headrest supports.





5. REMOVE REAR SEAT HEADREST SUPPORT
6. REMOVE REAR SEAT SHOULDER BELT GUIDE RH





a. Remove the 3 screws and rear seat shoulder belt guide RH.

7. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

HINT: Use the same procedure for the RH side and LH side.

8. REMOVE REAR SEAT CENTER SHOULDER BELT GUIDE





a. Remove the 2 screws and rear seat center shoulder belt guide.

9. REMOVE REAR BENCH TYPE SEATBACK COVER
a. Remove the 55 hog rings.





b. Remove the 20 hog rings and rear bench type seatback cover from the seatback frame (with pad).





REASSEMBLY

1. INSTALL REAR BENCH TYPE SEATBACK COVER
a. Using hog ring pliers, install 20 new hog rings.





NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

b. Using hog ring pliers, install the rear bench type seatback cover to the seatback frame (with pad) with 55 new hog rings.





NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

2. INSTALL REAR SEAT CENTER SHOULDER BELT GUIDE





a. Install the rear seat center shoulder belt guide with the 2 screws.

3. INSTALL REAR SEAT SHOULDER BELT GUIDE RH





a. Install the rear seat shoulder belt guide RH with the 3 screws.

4. INSTALL REAR SEAT SHOULDER BELT GUIDE LH

HINT: Use the same procedure for the RH and LH side.

5. INSTALL REAR SEAT HEADREST SUPPORT
a. Engage the 6 claws and install the 3 rear seat headrest supports.





6. INSTALL REAR SEAT HEADREST SUPPORT
7. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY





a. Engage the 2 claws and install the rear center seat armrest assembly with the 2 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

8. INSTALL INNER CENTER SEAT ARMREST PLATE





a. Engage the 11 claws and install the inner center seat armrest plate.

9. INSTALL REAR BENCH TYPE SEAT CUSHION COVER
a. Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion frame (with pad) with 20 new hog rings.





NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.

b. Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion frame (with pad) with 33 new hog rings.





NOTICE:
- Be careful not to damage the cover.
- When installing the hog rings, avoid wrinkling the cover.
