Speedometer Malfunction

Speedometer Malfunction

Wiring Diagram:






Step 1:

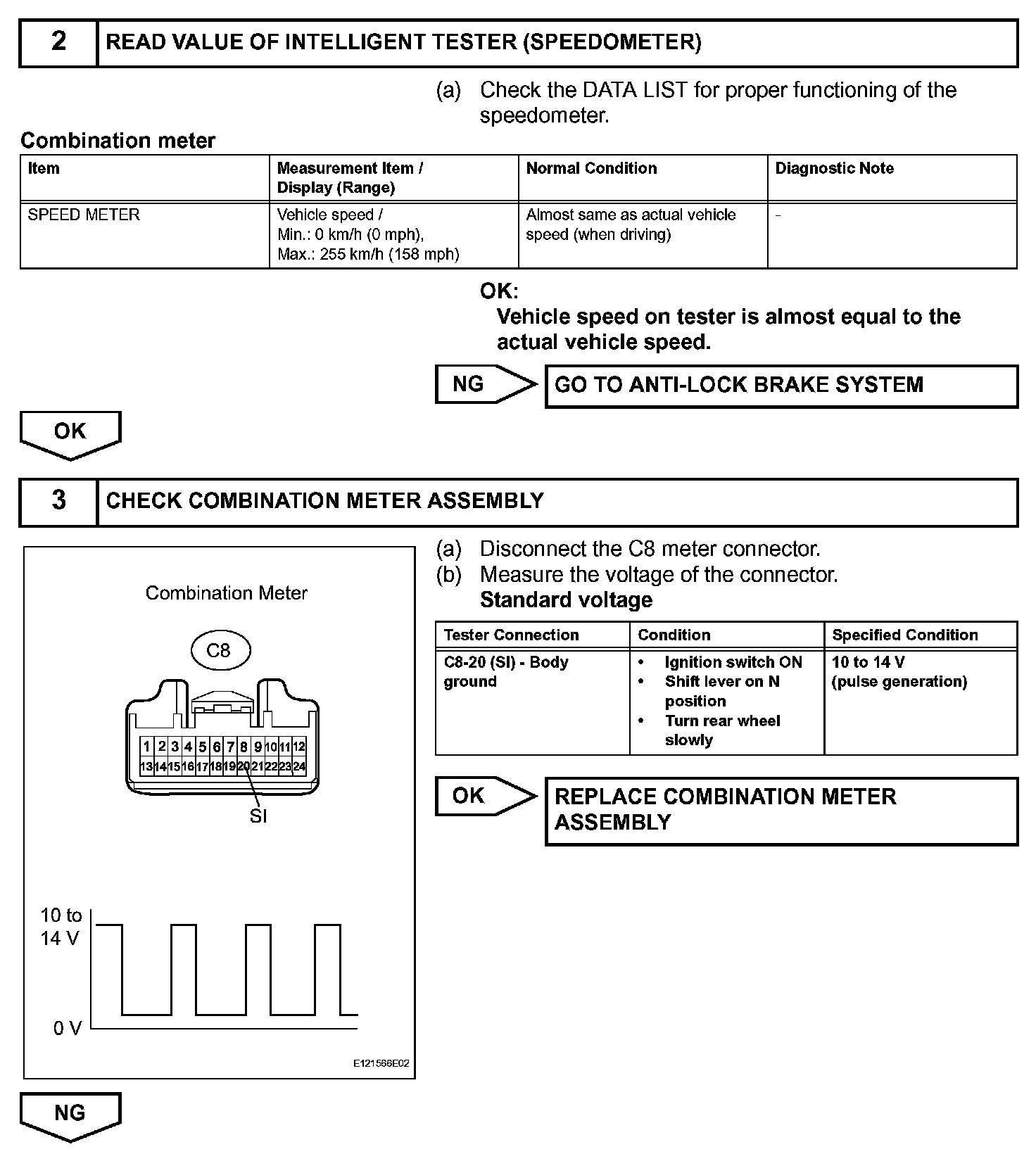

Step 2-3:




Step 4:




INSPECTION PROCEDURE
