Removal and Replacement

Fog Light Assembly:

FOG LIGHT ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE RADIATOR GRILLE
3. REMOVE FRONT FENDER LINER LH
4. REMOVE FRONT FENDER LINER RH
5. REMOVE FRONT BUMPER COVER




6. REMOVE FOG LIGHT UNIT LH

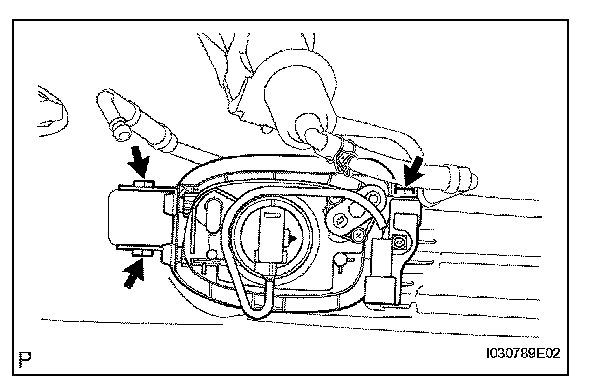

a. Remove the 3 bolts and fog light.
b. Remove the screw and fog light bracket LH.

INSTALLATION




1. INSTALL FOG LIGHT UNIT LH
a. Install the fog light bracket LH with the screw.
b. Install the fog light with the 3 bolts.

2. INSTALL FRONT BUMPER COVER
3. INSTALL FRONT FENDER LINER LH
4. INSTALL FRONT FENDER LINER RH
5. INSTALL RADIATOR GRILLE
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
