Active Control Engine Mount System

2GR-FE ENGINE CONTROL SYSTEM: ACTIVE CONTROL ENGINE MOUNT SYSTEM:

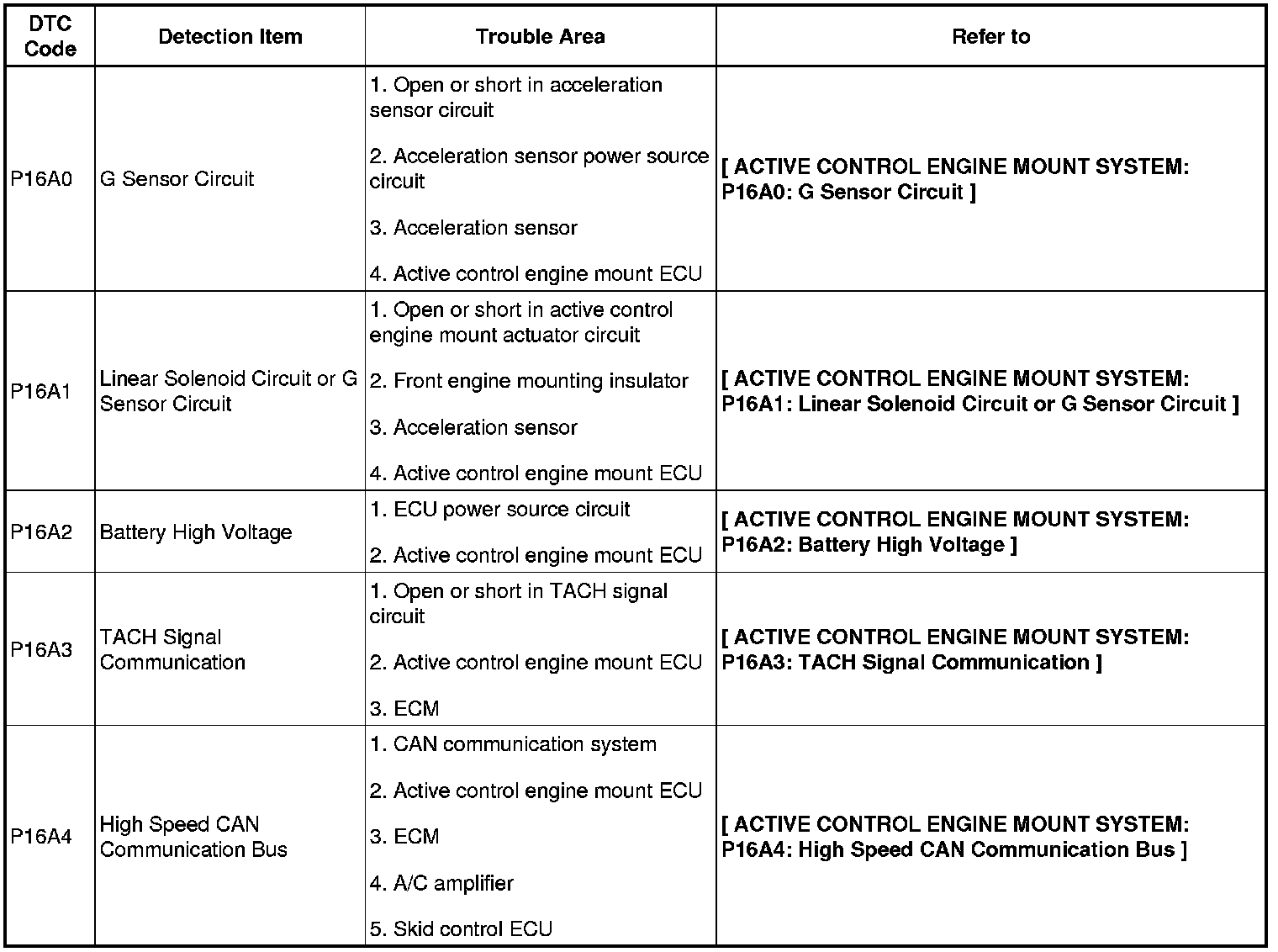

DIAGNOSTIC TROUBLE CODE CHART

If any trouble code is displayed during DTC check, check the circuit corresponding to the code in the table below.

ACTIVE ENGINE MOUNTING:
