Seat Belt Tensioner
Seat Belt Tensioner

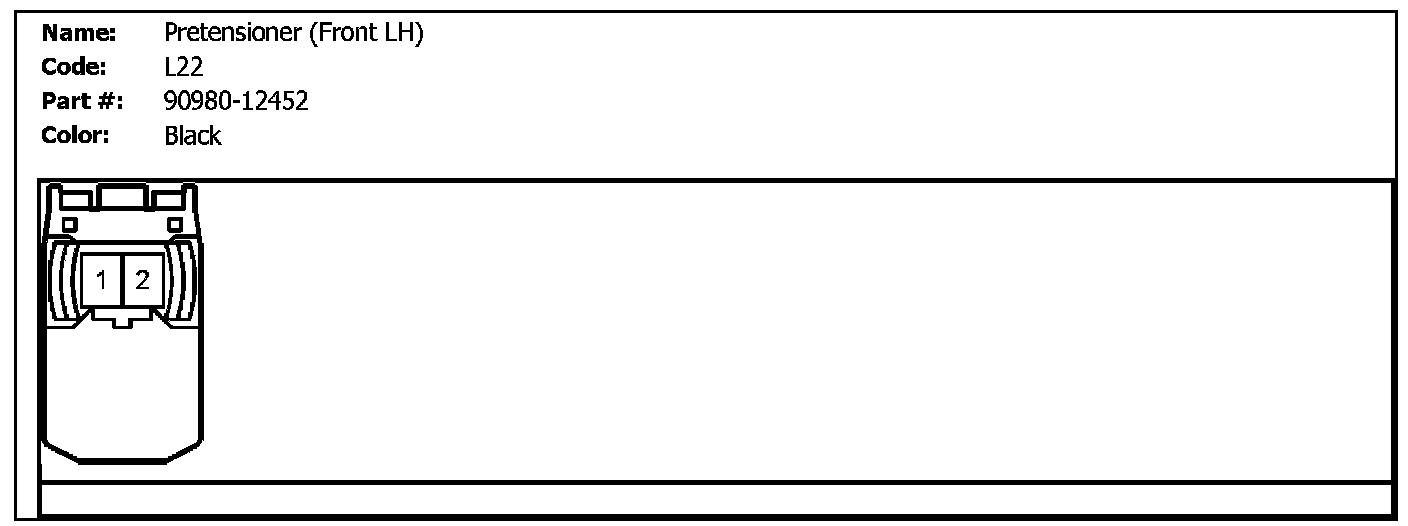

L22 (Pretensioner (Front LH)):
L23 (Pretensioner (Rear LH)):

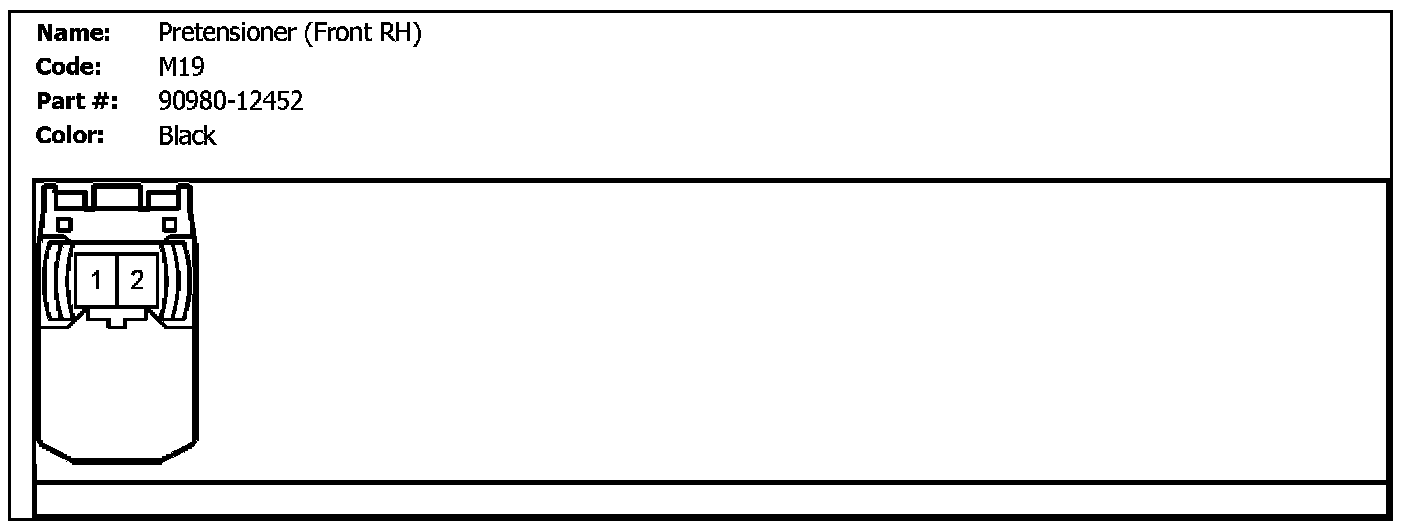

M19 (Pretensioner (Front RH)):

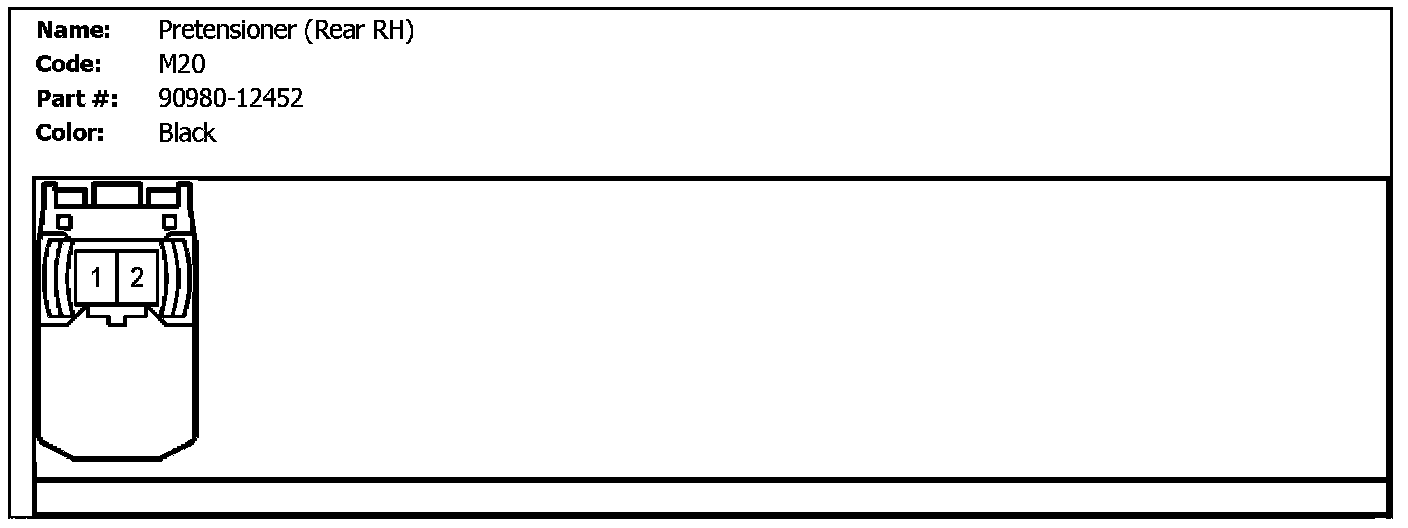

M20 (Pretensioner (Rear RH)):

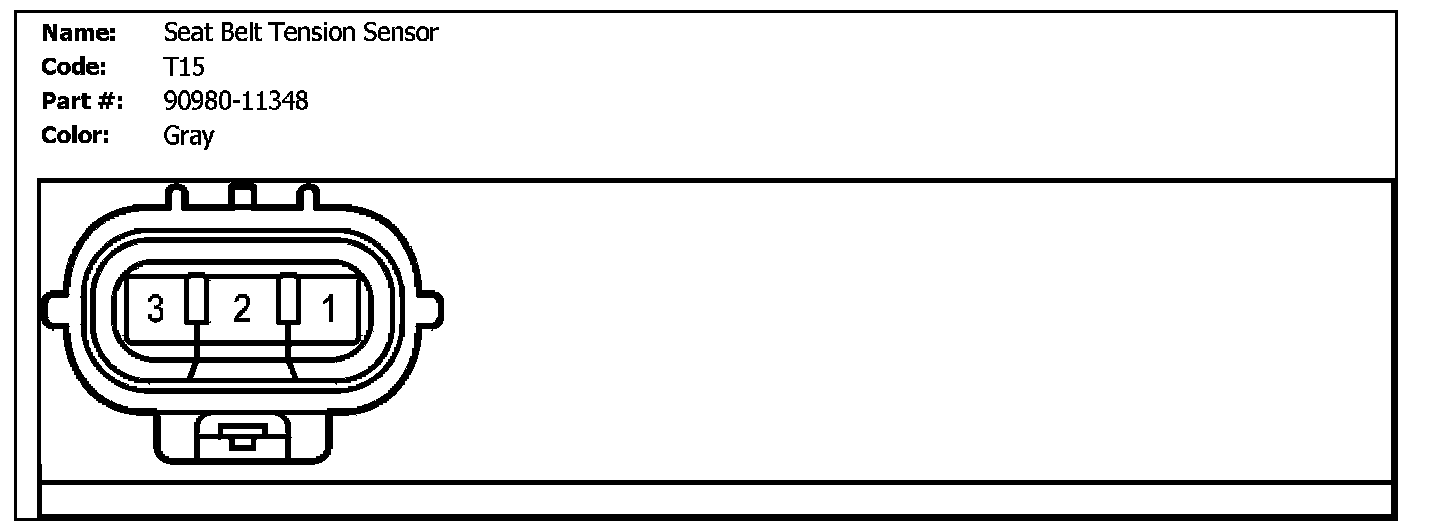

T15 (Seat Belt Tension Sensor):
