Part 3

2GR-FE ENGINE MECHANICAL: ENGINE UNIT:

REASSEMBLY (Continued)

34. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY

(a) Install the No. 2 chain tensioner with the bolt.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
(b) While pushing in the tensioner, insert a pin of dia1.0 mm (0.039 in.) into the hole to fix it.
35. INSTALL CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 1)

(a) Align the mark plates (yellow) with the timing marks (1-dot mark) of the camshaft timing gears as shown in the illustration.
(b) Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
(c) Align the knock pin of the camshaft with the pin hole of the camshaft timing gear. Install the camshaft timing gear and camshaft timing exhaust gear RH with the No. 2 chain installed.

(d) Hold the hexagonal portion of the camshaft with a wrench, and tighten the 2 bolts.
Torque: 100 Nm (1020 kgf-cm, 74 ft-lbf)
(e) Remove the pin from the chain tensioner.
36. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY

(a) Install the chain tensioner with the bolt.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
(b) While pushing in the tensioner, insert a pin of dia1.0 mm (0.039 in.) into the hole to hold it.
37. INSTALL CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 2)

(a) Align the mark plates (yellow) with the timing marks (2-dot mark) of the camshaft timing gears as shown in the illustration.
(b) Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
(c) Align the knock pin of the camshaft with the pin hole of the camshaft timing gear. Install the camshaft timing gear and camshaft timing exhaust gear LH with the No. 2 chain installed.

(d) Hold the hexagonal portion of the camshaft with a wrench, and tighten the 2 bolts.
Torque: 100 Nm (1020 kgf-cm, 74 ft-lbf)
(e) Remove the pin from the chain tensioner.
38. INSTALL NO. 1 CHAIN VIBRATION DAMPER

(a) Install the chain vibration damper with the 2 bolts.
Torque: 23 Nm (230 kgf-cm, 17 ft-lbf)
39. INSTALL NO. 2 CHAIN VIBRATION DAMPER
(a) Install the 2 chain vibration dampers.
40. INSTALL CRANKSHAFT TIMING SPROCKET

(a) Install the 2 timing gear set keys and timing sprocket as shown in the illustration.
41. INSTALL IDLE SPROCKET ASSEMBLY

(a) Apply a light coat of engine oil to the rotating surface of the No. 1 idle gear shaft.
(b) Temporarily install the No. 1 idle gear shaft and idle sprocket with the No. 2 idle gear shaft while aligning the knock pin of the No. 1 idle gear with the knock pin groove of the cylinder block.
NOTE: Be sure to install the idle gear shaft in the correct direction.
HINT: Check that no foreign objects are on the No. 1 and No. 2 idle gear shafts.

(c) Using a 10 mm hexagon wrench, tighten the No. 2 idle gear shaft.
Torque: 60 Nm (612 kgf-cm, 44 ft-lbf)
HINT: After installing the idle sprocket assembly, check that the idle sprocket turns smoothly.

42. INSTALL CHAIN SUB-ASSEMBLY

(a) Align the mark plates with the timing marks as shown in the illustration and install the chain.
HINT: The color of the camshaft mark plates is orange.

(b) Do not pass the chain over the crankshaft, just temporarily place it on the crankshaft.

(c) Turn the camshaft timing gear assembly on the RH bank counterclockwise to tighten the chain between the banks.
NOTE: When the idle sprocket is reused, align the chain plate with the mark where the plate had been in order to tighten the chain between the banks.

(d) Align the mark plate and timing marks as shown in the illustration and install the chain onto the crankshaft timing sprocket.
HINT: The color of the crankshaft mark plate is yellow.

(e) Temporarily tighten the pulley set bolt.

(f) Turn the crankshaft clockwise to set it to the RH block bore center line (TDC / compression).
43. INSTALL CHAIN TENSIONER SLIPPER
(a) Install the chain tensioner slipper.
44. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

(a) Move the stopper plate upward to release the lock, and push the plunger deep into the tensioner.
(b) Move the stopper plate downward to set the lock, and insert a hexagon wrench into the hole of the stopper plate.

(d) Remove the hexagon wrench from the chain tensioner. Check that each timing mark is aligned with the crankshaft at the TDC / compression.
(e) Remove the pulley set bolt.
45. INSTALL TIMING CHAIN CASE OIL SEAL

(a) Using SST, tap in a new oil seal until its surface is flush with the timing gear case edge.
SST: 09223-22010
SST: 09506-35010
NOTICE :
- Keep the lip free of foreign matter.
- Do not tap on the oil seal at an angle.
- Make sure that the oil seal edge does not stick out of the timing chain case.

46. INSTALL WATER PUMP ASSEMBLY

(a) Install a new gasket and the water pump with the 8 bolts.
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
NOTE: Be sure to replace the bolts indicated by A with new ones or reuse them after applying adhesive 1344.

47. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY
(a) Apply seal packing in a continuous line to the engine unit as shown in the following illustration.

Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Seal diameter:
3.0 mm (0.118 in.)
NOTICE:
- Be sure to clean and degrease the contact surfaces, especially the surfaces indicated by C in the illustration.
- If the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
- Install the chain cover within 3 minutes.
- Do not start the engine for at least 2 hours after installation.

(b) Apply seal packing in a continuous line to the timing chain cover as shown in the following illustration.

Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Toyota Genuine Seal Packing Black 1282B, Three Bond 1282B or equivalent
NOTICE:
- If the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
- Install the chain cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installation.

Apply seal packing as follows:

(d) Align the oil pump's drive rotor spline and the crankshaft as shown in the illustration. Install the spline and chain cover to the crankshaft.
(e) Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts.

Bolt length:

NOTE: Make sure that there is no oil on the bolt and nut threads.

(f) Fully tighten the bolts in this order: Area 1 and Area 2.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
(g) Fully tighten the bolts in Area 3.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
HINT: Tighten the bolts and nuts in the order of upper to lower as shown in the illustration.

(h) Fully tighten the bolts in Area 4.
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)for bolt A
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)for bolts except bolt A
HINT: Tighten the bolts in the order of lower to upper as shown in the illustration.

(i) Install a new gasket and the chain cover plate with the 4 bolts.
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
48. INSTALL WATER INLET HOUSING

(a) Install 2 new O-rings.
HINT: Apply a small amount of water or soapy water to O-ring (A) in the illustration before installing it.

(b) Install the stud bolts.
Torque: 4.0 Nm (41 kgf-cm, 35 in-lbf)

(c) Install the water inlet with the 2 bolts and nut.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
NOTE: Be careful that the O-ring does not get caught between the parts.

(d) Connect the No. 1 water by-pass hose.
(e) Apply adhesive around the drain cock.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
(f) Install the drain cock to the water inlet housing.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)
(g) Install the drain cock plug to the water drain cock.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)
(h) Install a new gasket to the thermostat.

(i) Align the thermostat jiggle valve with the upper stud bolt, and insert the thermostat in the water inlet housing.
HINT: The jiggle valve may be set within 10° of either side of the prescribed position.

(j) Install the water inlet with the 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
49. INSTALL FRONT ENGINE MOUNTING BRACKET NO. 1 LH

(a) Install the engine mounting bracket with the 6 bolts.
Torque: 54 Nm (551 kgf-cm, 40 ft-lbf)
NOTICE :
- Install the water inlet and mounting bracket within 15 minutes after installing the chain cover.
- Do not start the engine for at least 2 hours after installation.

(b) When replacing a stud bolt, install it by using an E8 "TORX" socket wrench.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
50. INSTALL OIL PAN BAFFLE PLATE NO.1

(a) Install the oil pan baffle plate with the 7 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

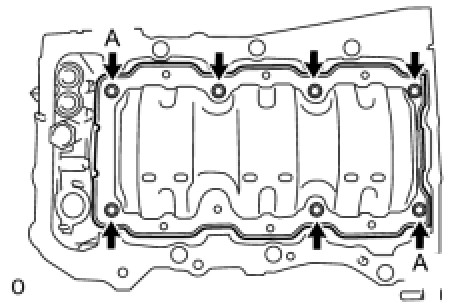

HINT: Temporarily tighten the 7 bolts. Fully tighten 2 bolts A shown in the illustration before tightening the other bolts.

51. INSTALL OIL PAN SUB-ASSEMBLY
(a) When replacing a stud bolt, install it by using an E8 "TORX" socket wrench.

Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Install 2 new O-rings.

(c) Apply seal packing in a continuous line as shown in the illustration.
Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Seal diameter:
3.0 to 4.0 mm (0.118 to 0.156 in.)
NOTICE :
- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installation.

(d) Install the oil pan with the 16 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
52. INSTALL OIL STRAINER SUB-ASSEMBLY

(a) Using an E6 "TORX" socket, install the stud bolts as shown in the illustration.
Torque: 4.0 Nm (41 kgf-cm, 35 in-lbf)

(b) Install a new gasket and the oil strainer with the bolt and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
53. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

(a) Using an E6 "TORX" socket, install the stud bolts as shown in the illustration.
Torque: 4.0 Nm (41 kgf-cm, 35 in-lbf)

(b) Apply seal packing in a continuous line as shown in the illustration.
Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Seal diameter:
3.0 to 4.0 mm (0.118 to 0.156 in.)
NOTICE :
- Remove any oil from the contact surface.
- Install the oil pan No. 2 within 3 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installation.

(c) Install the oil pan with the 16 bolts and 2 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
54. INSTALL OIL PAN DRAIN PLUG

(a) Install a new gasket and the drain plug.
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf)
55. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 1)

(a) Apply seal packing as shown in the illustration.
Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
NOTICE :
- Remove any oil from the contact surface.
- Install the head cover within 3 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installation.

(b) Install 3 new gaskets as shown in the illustration.
(c) Install a new gasket to the head cover.

(d) Install the head cover with the 12 bolts and a new washer.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
HINT: After tightening all bolts, check the tightening torque of bolts 1 and 11. Retighten the bolts if necessary.

56. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 2)

(b) Install 3 new gaskets as shown in the illustration.
(c) Install a new gasket to the head cover.

(d) Install the head cover with the 12 bolts and a new washer.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
HINT: After tightening all bolts, check the tightening torque of bolts 1 and 10. Retighten the bolts if necessary.

57. INSTALL WATER OUTLET

(a) Install 2 new gaskets and a new O-ring.
HINT: Apply soapy water to the O-ring.

(b) Install the water by-pass joint with the 2 bolts and 4 nuts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Torque: 10 Nm (103 kgf-cm, 7 ft-lbf)
NOTE: Be careful that the O-ring does not get caught between the parts.

58. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the pulley, and slide it on the pulley.

(b) Using SST, install the pulley bolt.
SST: 09213-70011
09213-70020
SST: 09330-00021
Torque: 250 Nm (2550 kgf-cm, 184 ft-lbf)
59. INSTALL OIL FILTER ELEMENT

(a) Clean the inside of the oil filter cap, the threads and O-ring groove.
(b) Apply a light coat of engine oil to a new O-ring and install it to the oil filter cap.
(c) Set a new oil filter element to the oil filter cap.
(d) Remove dirt or foreign matter from the installation surface of the engine.
(e) Apply a light coat of engine oil to the O-ring again and install the oil filter cap.
NOTICE:
- Be careful that the O-ring does not get caught between the parts.
- The O-ring must not be twisted on the groove.

(f) Using SST, tighten the oil filter cap.
SST: 09228-06501
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)
NOTE: Make sure that the oil filter is installed securely as shown in the illustration.

(g) Apply a light coat of engine oil to a new O-ring and install it to the oil filter cap.
NOTE: Remove all dirt and foreign matter from the installation surface.

(h) Install the oil filter drain plug to the oil filter cap.
Torque: 13 Nm (127 kgf-cm, 9 ft-lbf)
NOTE: Make sure that the O-ring does not get caught between the parts.

60. INSTALL CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY

(a) Apply adhesive around the drain cocks.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(b) Install the water drain cocks as shown in the illustration.
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)
NOTE: Do not rotate the drain cocks more than 1 revolution (360°) after tightening the drain cocks to the specified torque.

(c) Install the water drain cock plugs to the water drain cocks.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)
61. INSTALL NO. 1 OIL PIPE
(a) Make sure that there is no foreign matter on the mesh of the oil control valve filter LH.
NOTE: Do not touch the mesh when installing the oil control valve filter.

(b) Install the oil control valve filter LH to the oil pipe union. Install new gaskets and temporarily install the oil pipe (on the head cover side).
(c) Install a new gasket and temporarily install the oil pipe (on the cylinder head side) with the oil check valve bolt.
(d) Tighten the oil pipe union (on the head cover side).
Torque: 65 Nm (663 kgf-cm, 48 ft-lbf)
(e) Tighten the oil pipe union (on the cylinder head side).
Torque: 65 Nm (663 kgf-cm, 48 ft-lbf)
NOTE: If the link that connects the gaskets is broken, remove the connecting link by using nippers or similar tools.

62. INSTALL OIL PIPE
(a) Make sure that there is no foreign matter on the mesh of the oil control valve filter RH.
NOTE: Do not touch the mesh when installing the oil control valve filter.

(b) Install the oil control valve filter RH to the oil pipe union. Install new gaskets and temporarily install the oil pipe (on the head cover side).
(c) Install a new gasket and temporarily install the oil pipe (on the cylinder head side) with the oil check valve bolt.
(d) Install the bolt (A) to the cylinder head.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(e) Tighten the oil pipe union (on the head cover side).
Torque: 65 Nm (663 kgf-cm, 48 ft-lbf)
(f) Tighten the oil pipe union (on the cylinder head side).
Torque: 65 Nm (663 kgf-cm, 48 ft-lbf)
NOTE: If the link that connects the gaskets is broken, remove the connecting link by using nippers or similar tools.

63. INSTALL CRANKSHAFT POSITION SENSOR

(a) Install the sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
64. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

(a) Install the 4 oil control valves with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
65. INSTALL CAMSHAFT POSITION SENSOR

(a) Install the 4 sensors with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
66. INSTALL VENTILATION VALVE SUB-ASSEMBLY
(a) Apply adhesive around the ventilation valve.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(b) Install the ventilation valve.
Torque: 27 Nm (275 kgf-cm, 20 ft-lbf)
67. INSTALL SPARK PLUG
(a) Install the 6 spark plugs.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)
68. INSTALL OIL FILLER CAP SUB-ASSEMBLY
(a) Install a new gasket.
(b) Install the oil filler cap.
