Audible Warning Device: Testing and Inspection

BRAKE CONTROL: SKID CONTROL BUZZER:

INSPECTION

1. INSPECT SKID CONTROL BUZZER

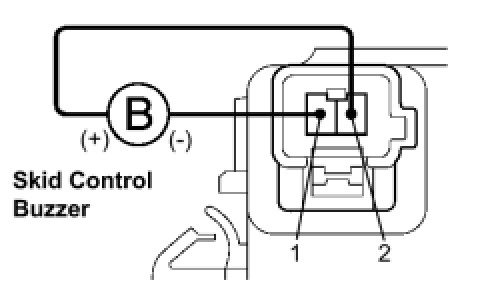

(a) Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
OK:
The skid control buzzer sounds.
If the skid control buzzer does not sound, replace the skid control buzzer.
