Instrument Panel, Gauges and Warning Indicators: Locations








METER / GAUGE SYSTEM:

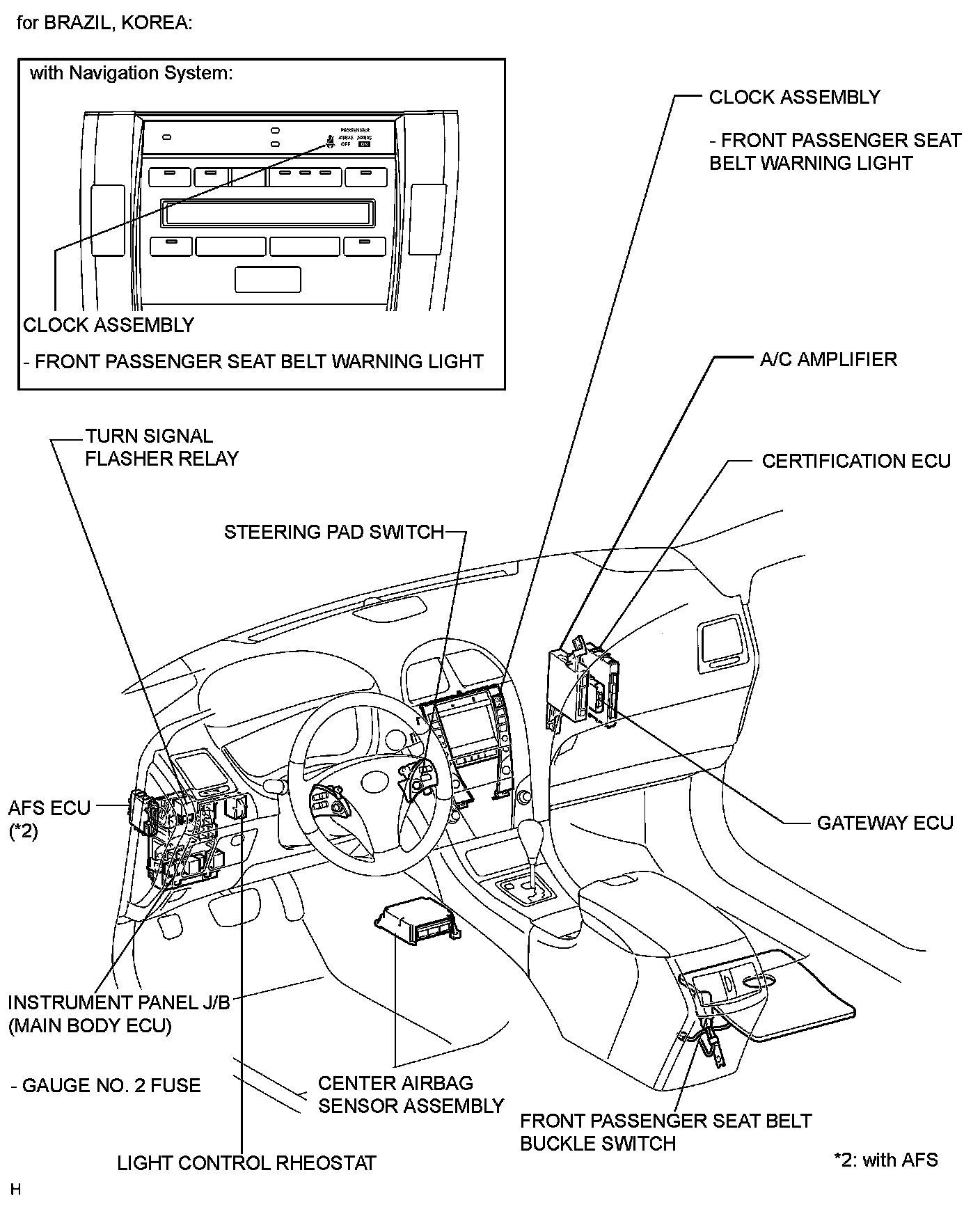

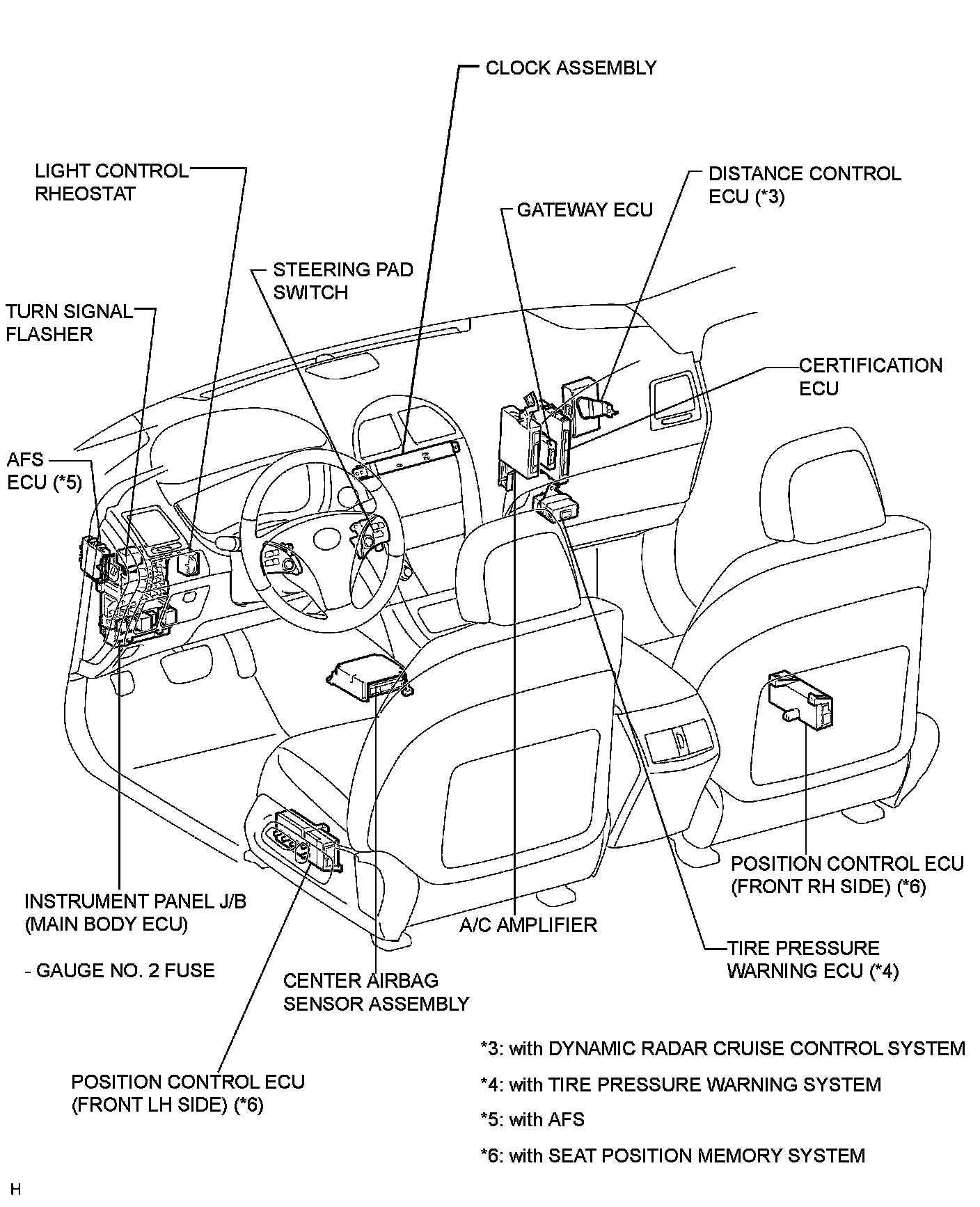

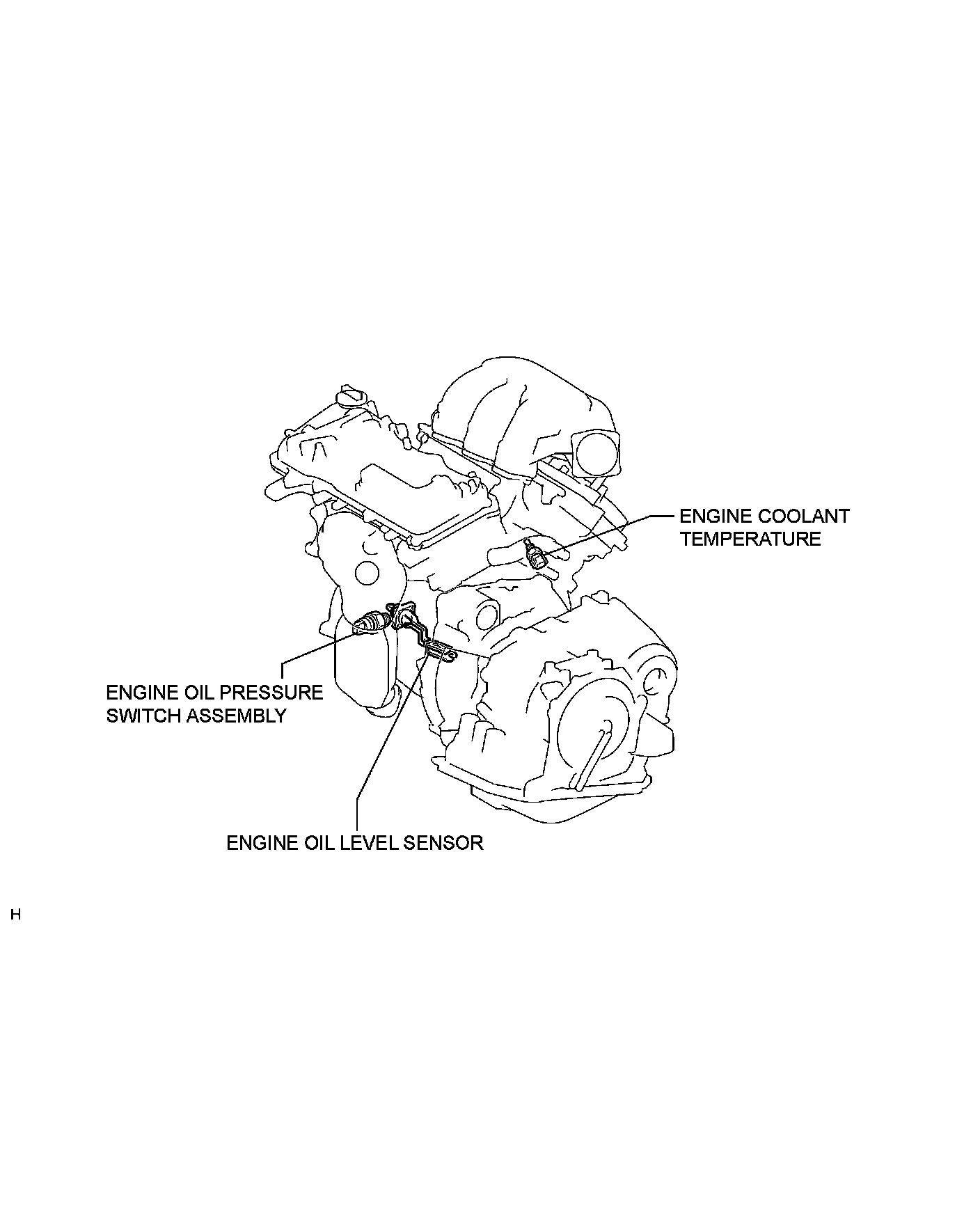

PARTS LOCATION
