ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

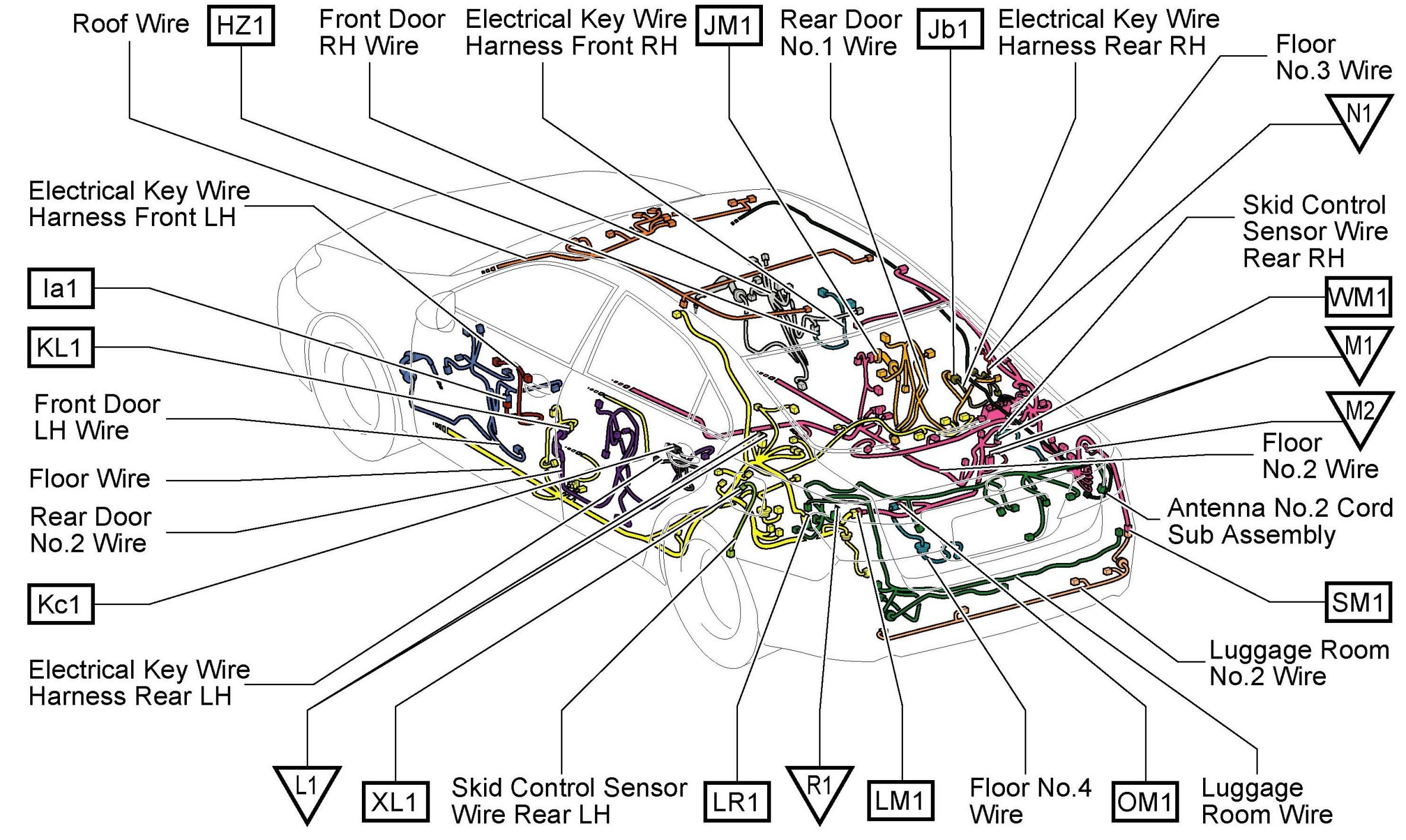

Wire and Wire , Ground Points In Body
Wire and Wire , Ground Points In Body

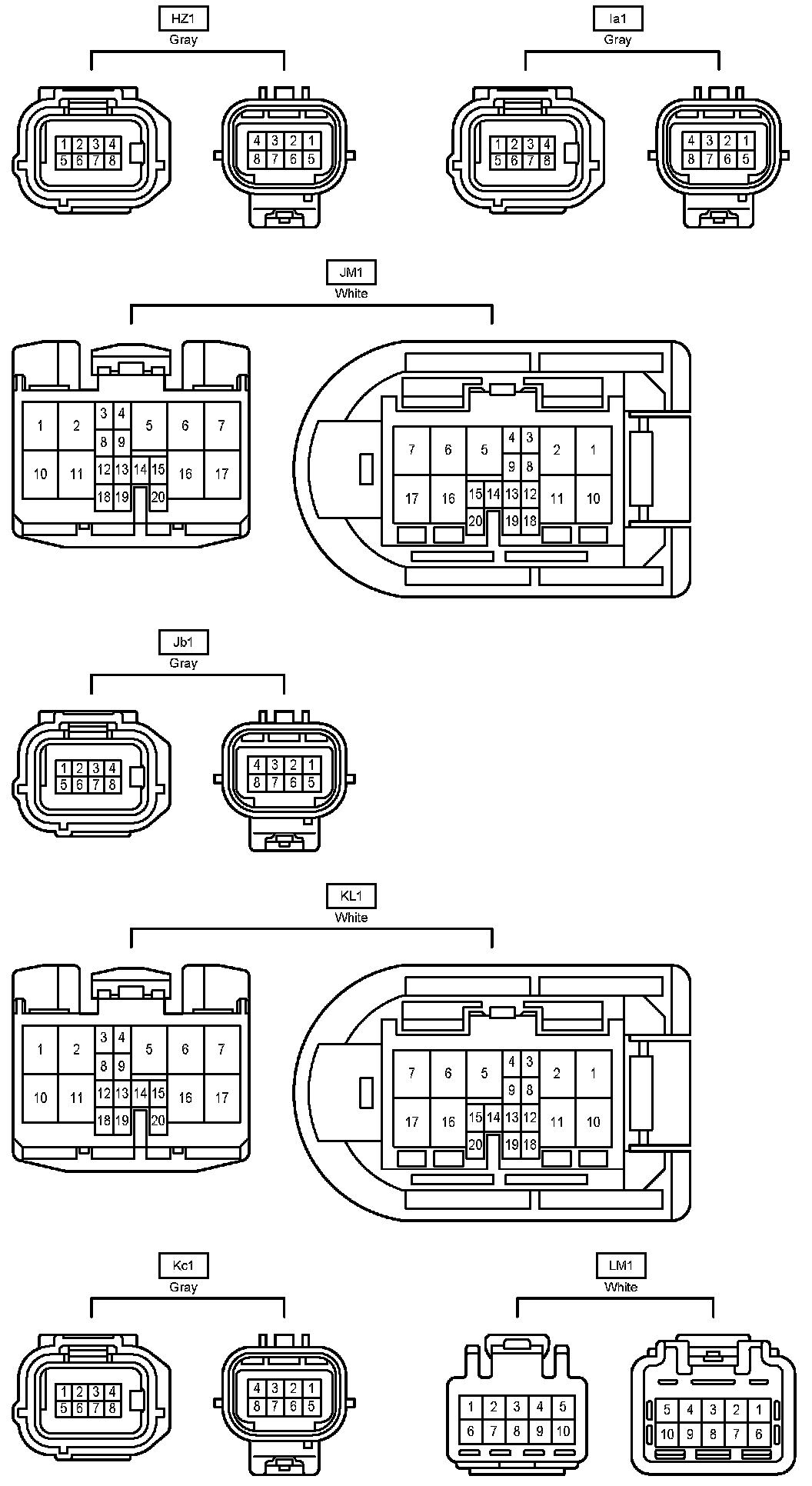

L1-R1, HZ1-XL1:
HZ1-LM1:

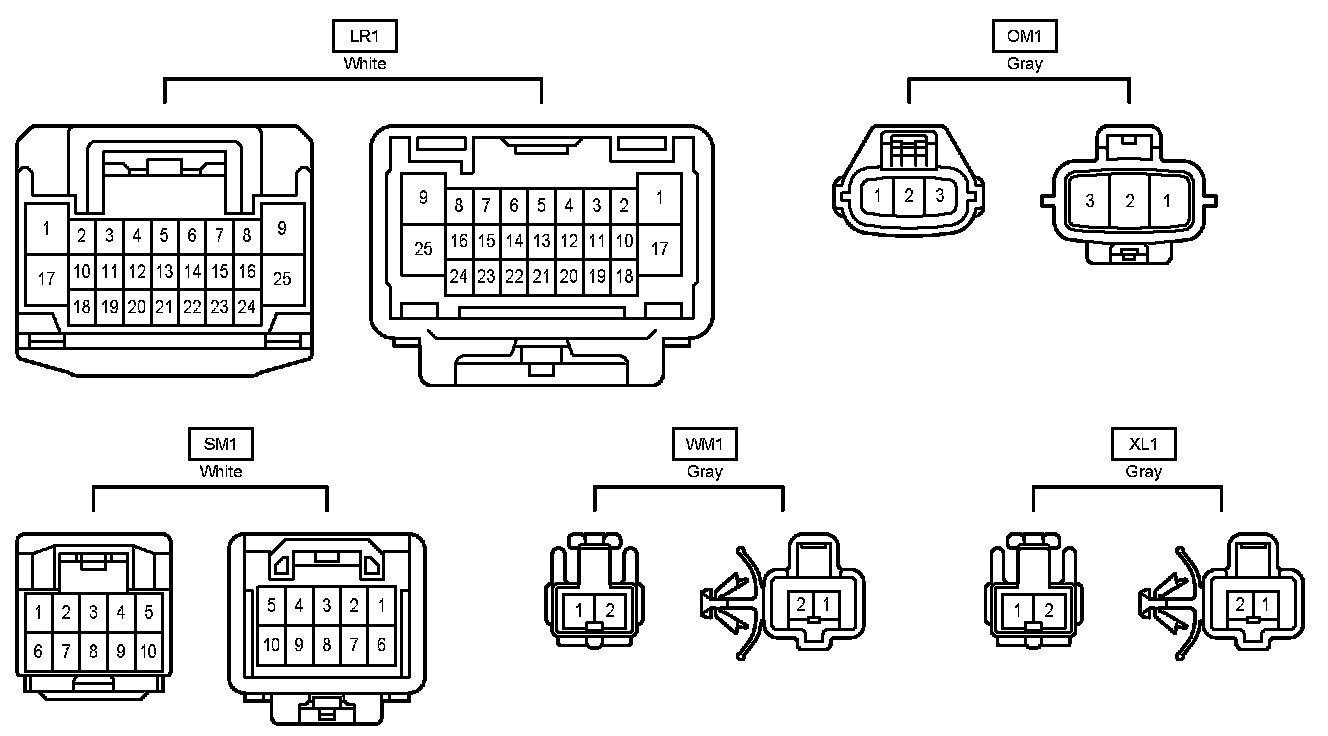

LR1-XL1:
