Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

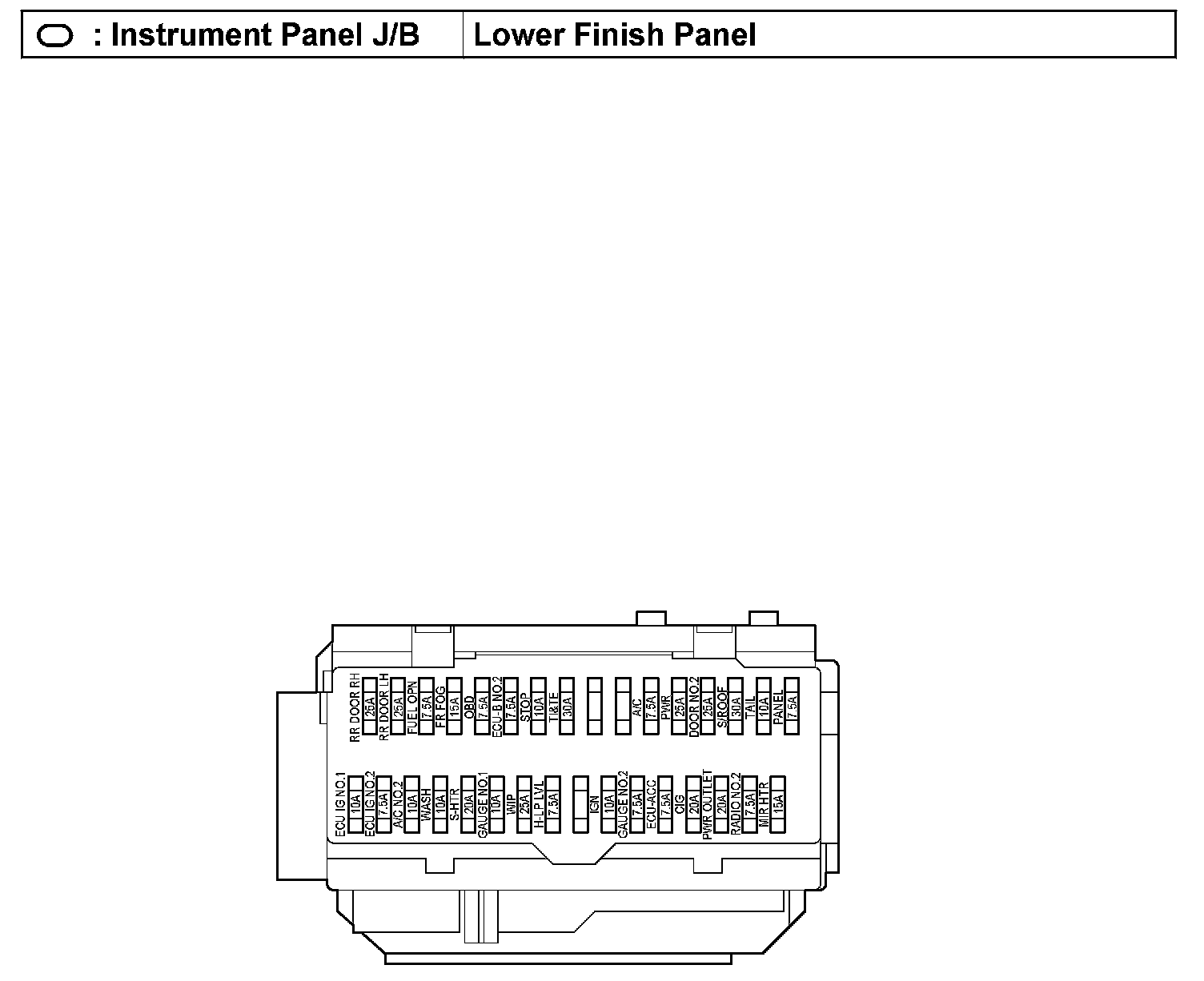

Instrument Panel J/B - Lower Finish Panel:

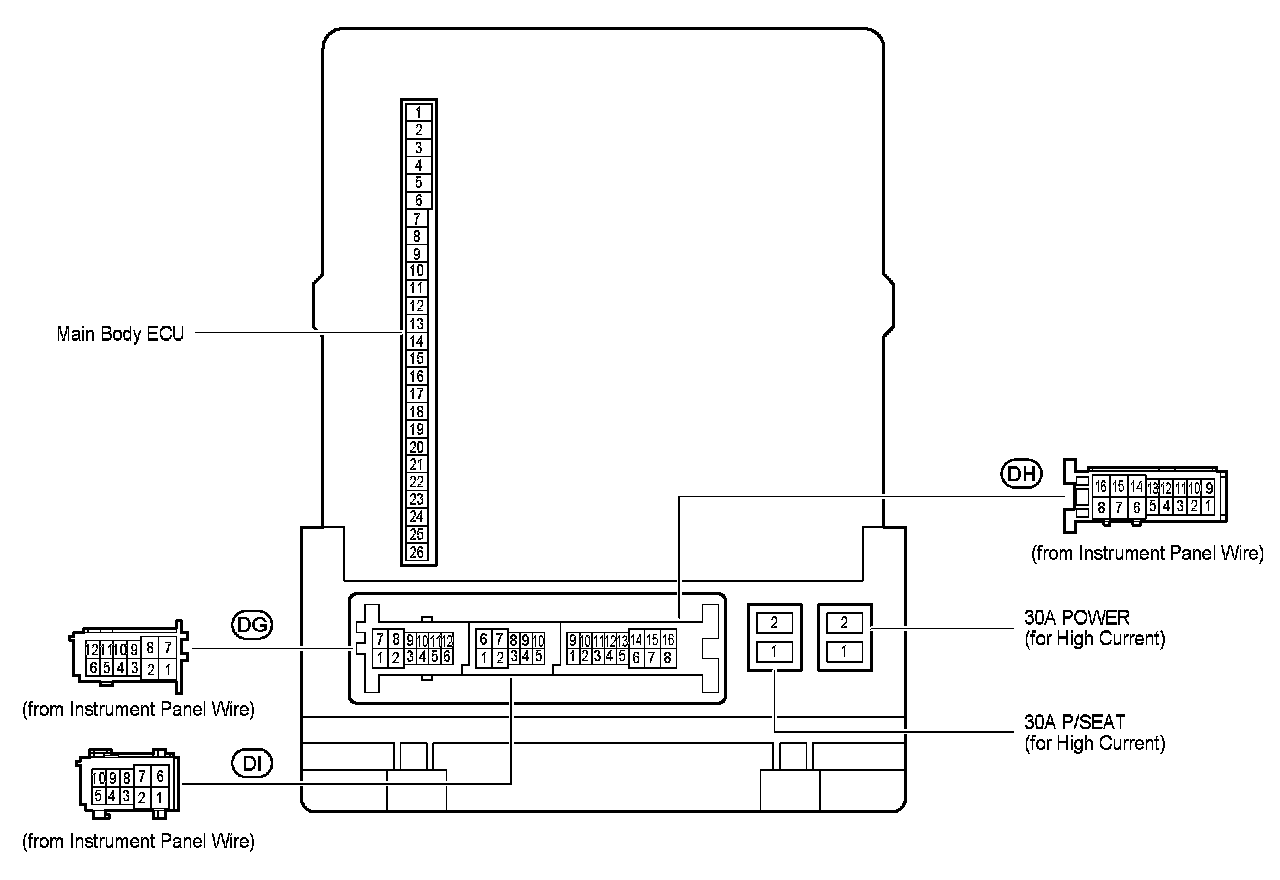

Instrument Panel J/B - Lower Finish Panel:
Engine Room R/B, J/B - Engine Compartment Left:
