Canada - Brakes - Rear Brake Squeak/Premature Pad Wear
Bulletin2361R
Issue Date
December 29, 2006
Title
REAR BRAKE SQUEAK AND/OR PREMATURE PAD WEAR
Component
BRAKES
Models
'07 - '08 ES 350
TSB REVISION NOTICE:
September 19, 2007: The information contained in this TSB supersedes previous version.
Previous version is now obsolete and should be discarded.
INTRODUCTION:
Some customers may experience rear brake squeak noise when moving forward slowly (less than 10 mph [16 km/h]) with low pressure applied to the brake pedal. Updated rear disc brake pad support plates (fitting kit) are available to improve this condition.

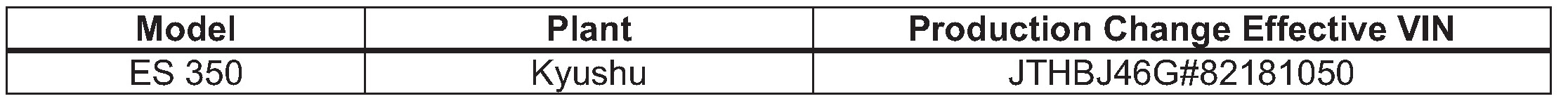

PRODUCTION CHANGE INFORMATION:
- 2007 - 2008 model year ES 350 vehicles produced BEFORE the Production Change Effective VIN shown.

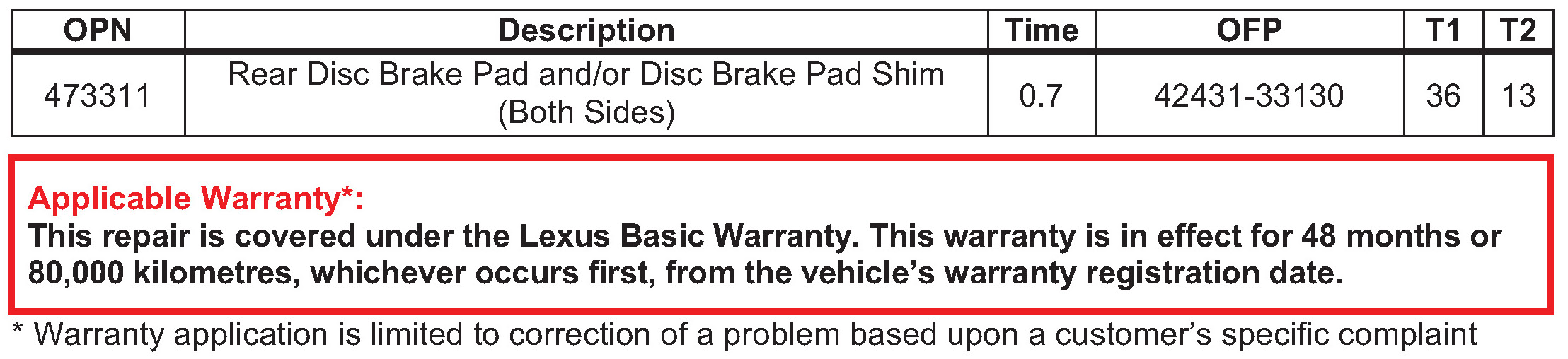

WARRANTY INFORMATION:

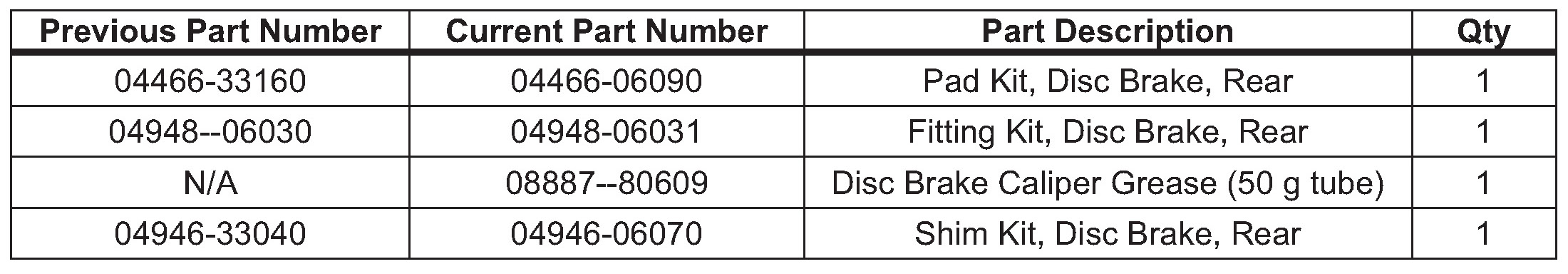

PARTS INFORMATION:

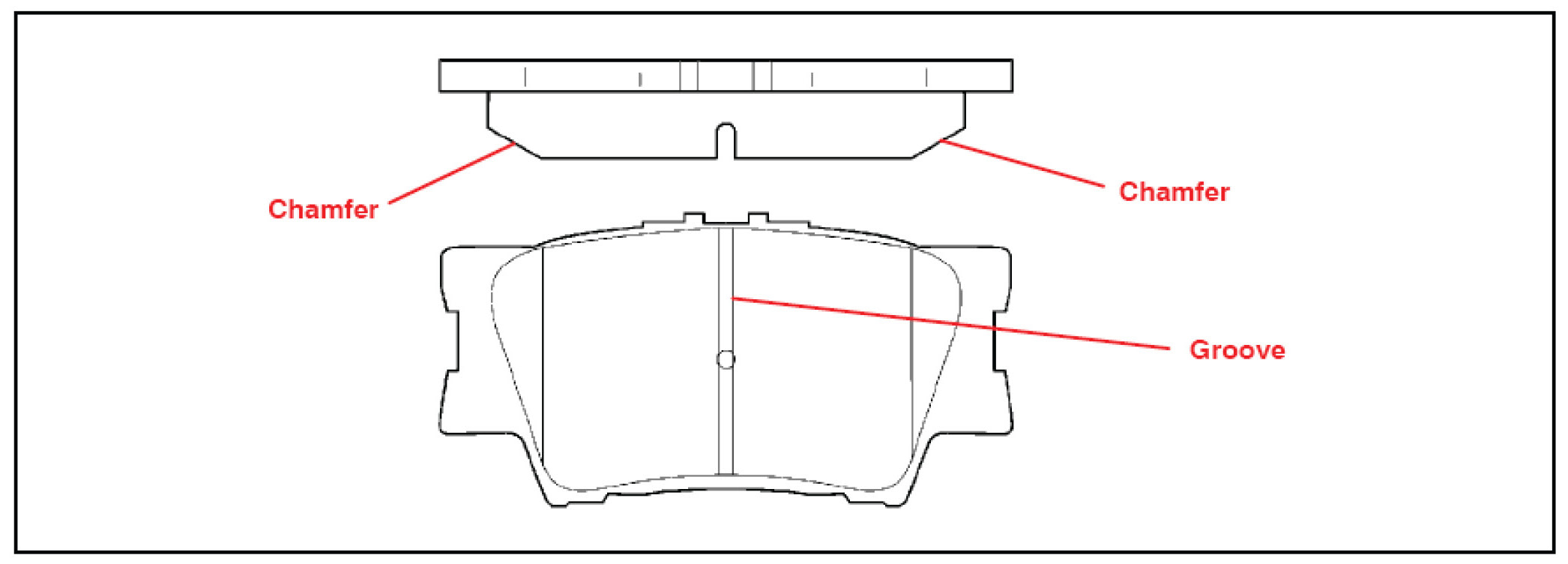

REPAIR PROCEDURE:
1. Conduct a road test to verify the rear brake squeak.
2. Remove and replace the rear disc brake pad support plate (2 per each rear caliper), the rear disc brake pads, and/or anti-squeal shims.
NOTE:
Use the same procedures for the RH side and LH side.
A. Remove the rear wheel.
B. Remove the rear disc brake caliper assembly by holding the 2 rear disc brake caliper slide pins and removing the 2 bolts.
C. Remove the 2 rear disc brake pads with the anti-squeal shims.
D. Remove the 2 anti-squeal shims and the 2 pad wear indicator plates from each pad.
E. Remove the No. 1 rear disc brake pad support plate.
a. Remove the No. 1 rear disc brake pad support plate from the rear disc brake caliper mounting.
b. Clean the area where the support plate sits.
F. Remove the No. 2 rear disc brake pad support plate
a. Remove the No. 2 rear disc brake pad support plate from the rear disk brake caliper mounting.
b. Clean the area where the support plate sits.
G. Install the No. 1 rear disc brake pad support plate to the rear disc brake caliper mounting.
H. Install the No. 2 rear disc brake pad support plate to the rear disc brake caliper mounting.
I. Install the rear anti-squeal shim kit
a. Apply disc brake grease to the inside of the anti-squeal shims.
NOTE:
- When replacing worn pads, the anti-squeal shims MUST be replaced together with the pads.
- If pads are worn out, then inspect anti-squeal shims for heat discoloration.
- Apply disc brake grease to the area that contacts the anti-squeal shim.
- Disc brake grease can come out slightly from the area where the anti-squeal shim is installed.
- Make sure that disc brake grease is NOT applied onto the lining surface.
b. Install the 2 anti-squeal shims and the pad wear indicators to each of the 2 brake pads.
NOTE:
Install the pad wear indicators and anti-squeal shims in the correct positions and directions.
c. Apply a small amount of the disc brake grease (1 -- 2 mm [0.04 -- 0.08 in.] thick) to the areas shown in the illustration.
NOTE:
Do NOT apply grease to the friction surfaces of the brake pads or the disc rotor.
J. Install the 2 rear brake pads with anti-squeal shim kit.
K. Install the rear disc brake cylinder assembly with the 2 bolts.
Torque: 62 N-m (630 kgf-cm, 46 ft-lbf)
NOTE:
Do NOT twist the brake hose when installing the rear disc brake caliper assemblies.
L. Install the rear wheel.
3. Road test the vehicle to confirm the condition has been corrected..
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
