Vehicle - Lifting Procedure

PRODUCT GENERAL INFORMATION
PG005-07

October 11, 2007

Title:
LIFTING PROCEDURE

Models:
'07 - '08 ES 350

Introduction

The purpose of this TSIB is to prevent possible damage to the rocker cladding and lower door molding. The following procedure outlines the correct method for using a lift to raise a 2007 - 2008 model year ES 350.

Applicable Vehicles
^ 2007 - 2008 model year ES 350.

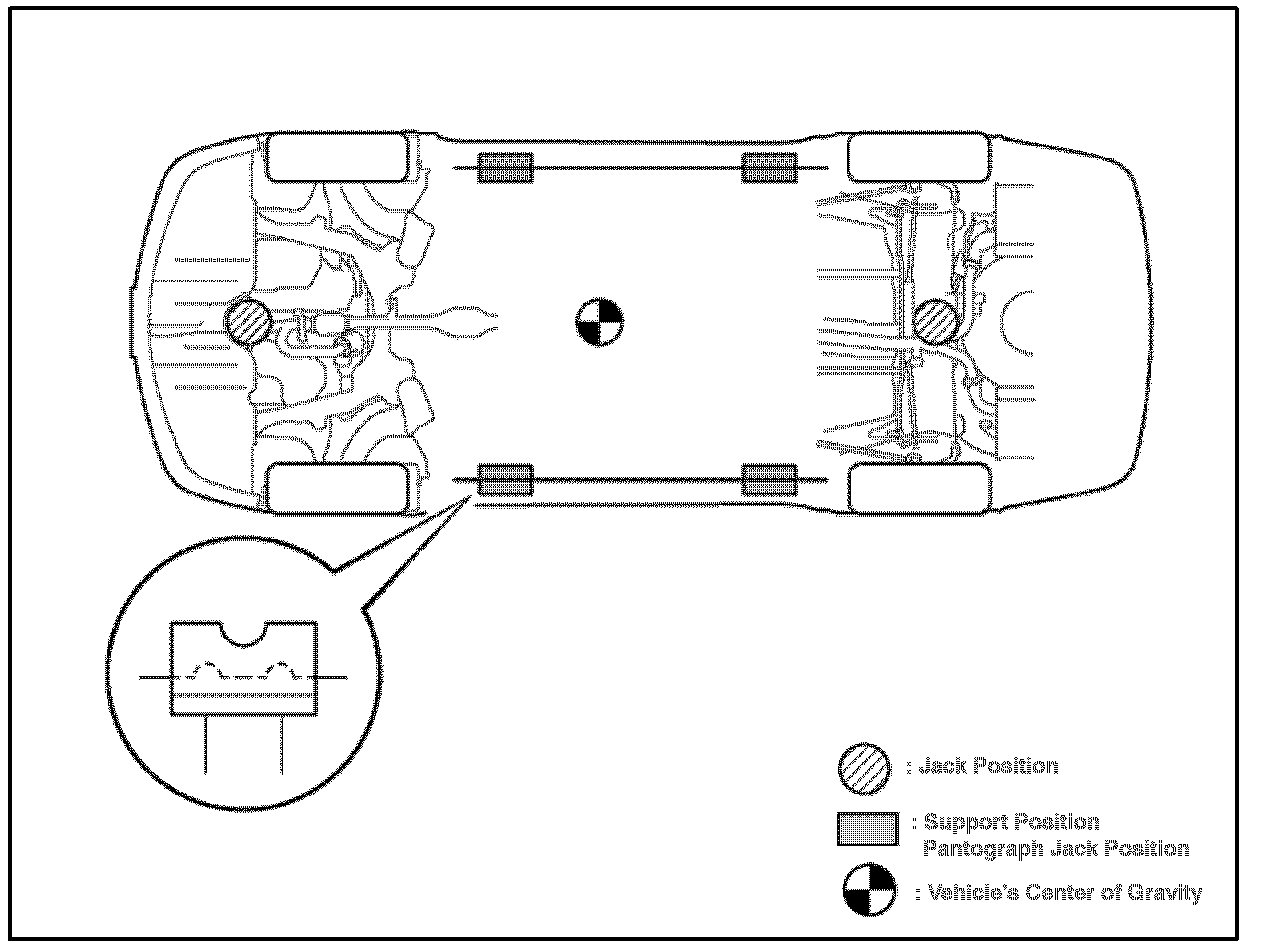

Support Location Overview





Warranty Information

Lifting Procedure

Using swing arm type lift:

1. Follow the instruction manual of the lift for a safe operation.

2. Use a cradle with a rubber attachment, as shown in the Specified Location Overview in this TSIB.

3. Position the vehicle so that it is centered on the lift.

4. Ensure that rubber cushions or swing arms do not contact the cladding or the lower door moldings.

5. Lift the vehicle up until the tires are off the ground, and shake the vehicle to make sure that it is stable.

Using plate type lift:

1. Follow the instruction manual of the lift for a safe operation.

2. Use a plate lift attachment.

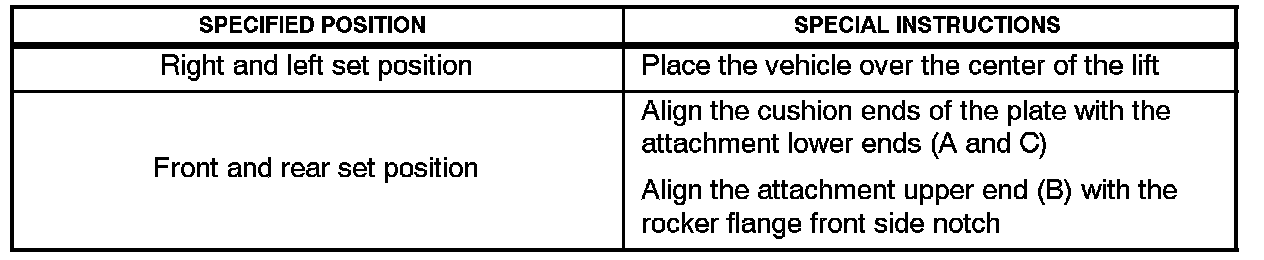

3. Be sure to set the vehicle to the specified position.

4. Ensure that rubber cushions or swing arms do not contact the cladding or the lower door moldings.

5. Lift the vehicle up until the tires are off the ground, and shake the vehicle to make sure that it is stable.

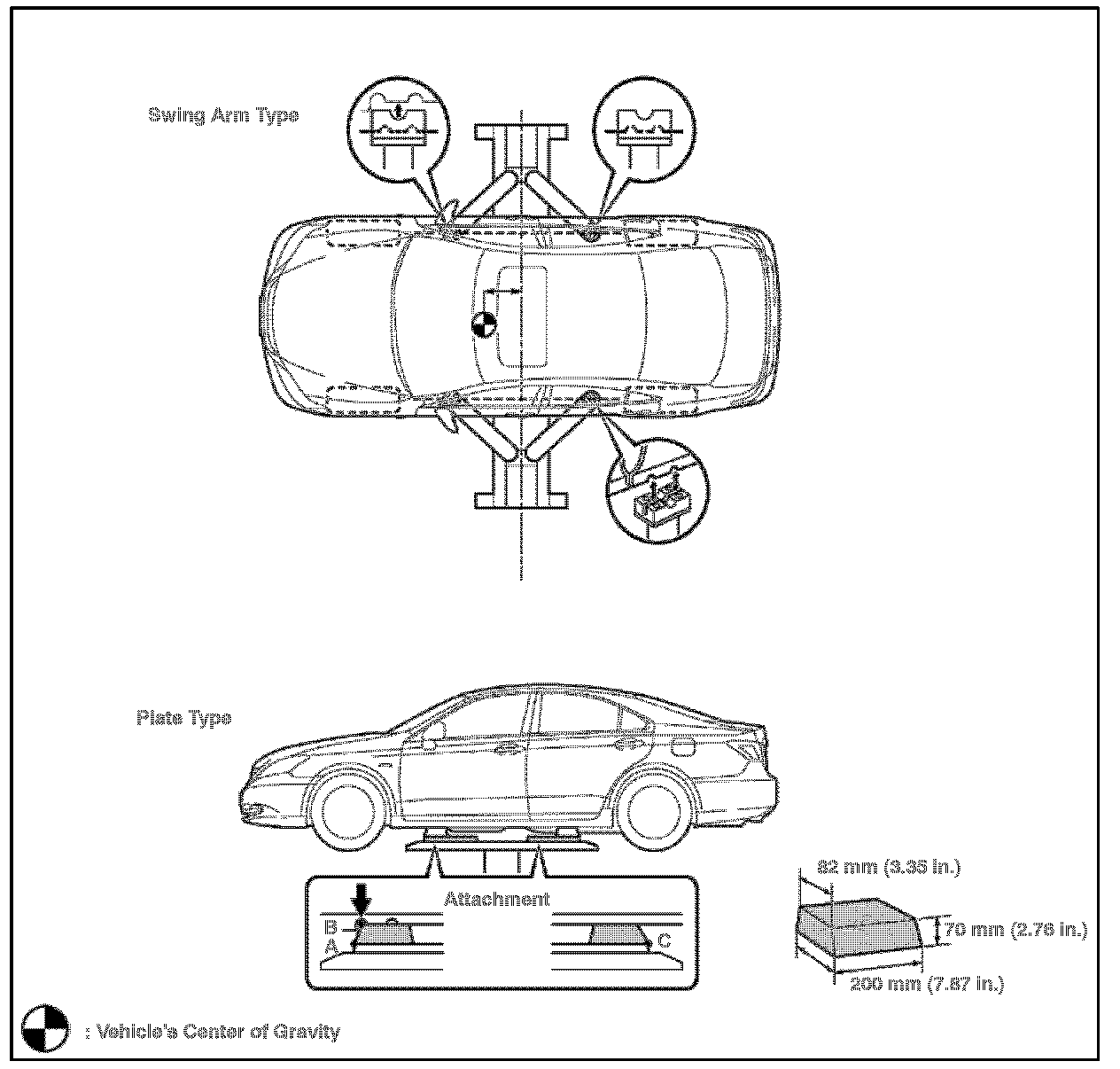

Specified Location Overview
