12 Volt Auxiliary Battery

12V Auxiliary Battery Disconnect Procedures

1. Turn off all lights, accessories, and the hybrid system.
2. Open the luggage compartment.

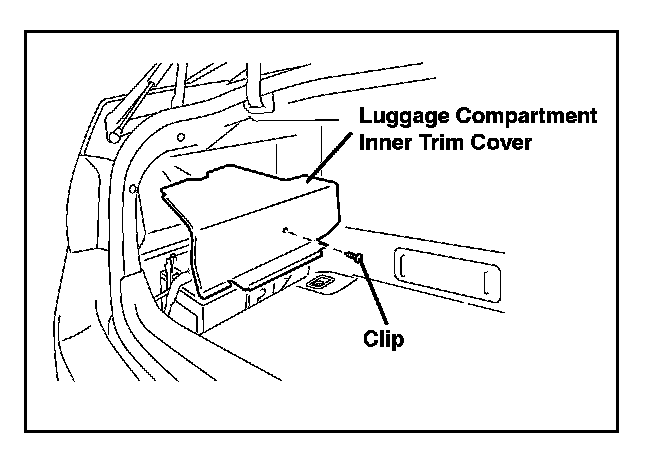

3. Push the core of the clip and remove the clip.




4. Remove the left side luggage compartment inner trim cover.

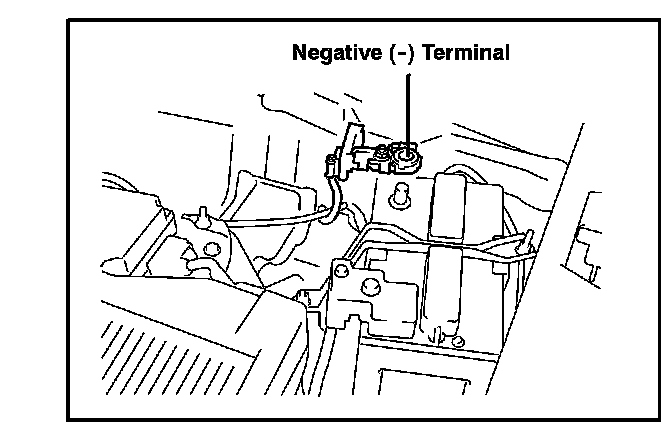

5. Disconnect the negative (-) terminal.

12V Active Stabilizer Battery Disconnect Procedures (if equipped)

1. Turn off all lights, accessories, and the hybrid system.
2. Open the luggage compartment.

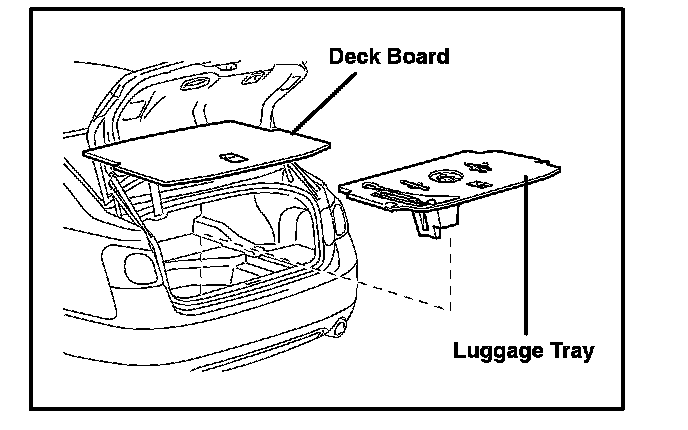

3. Remove the deck board and luggage tray.

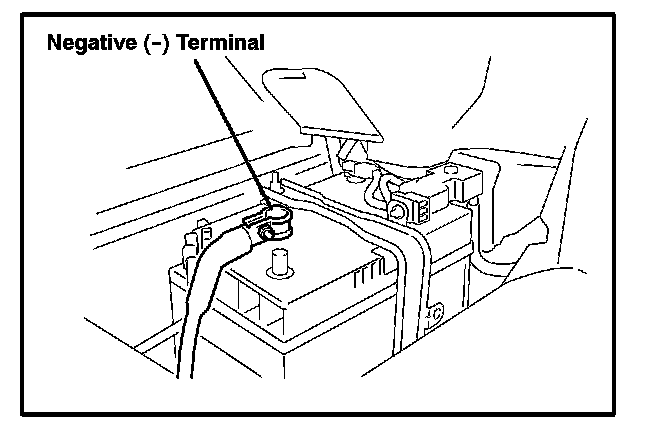

4. Disconnect the negative terminal.
