Antilock Brakes / Traction Control Systems

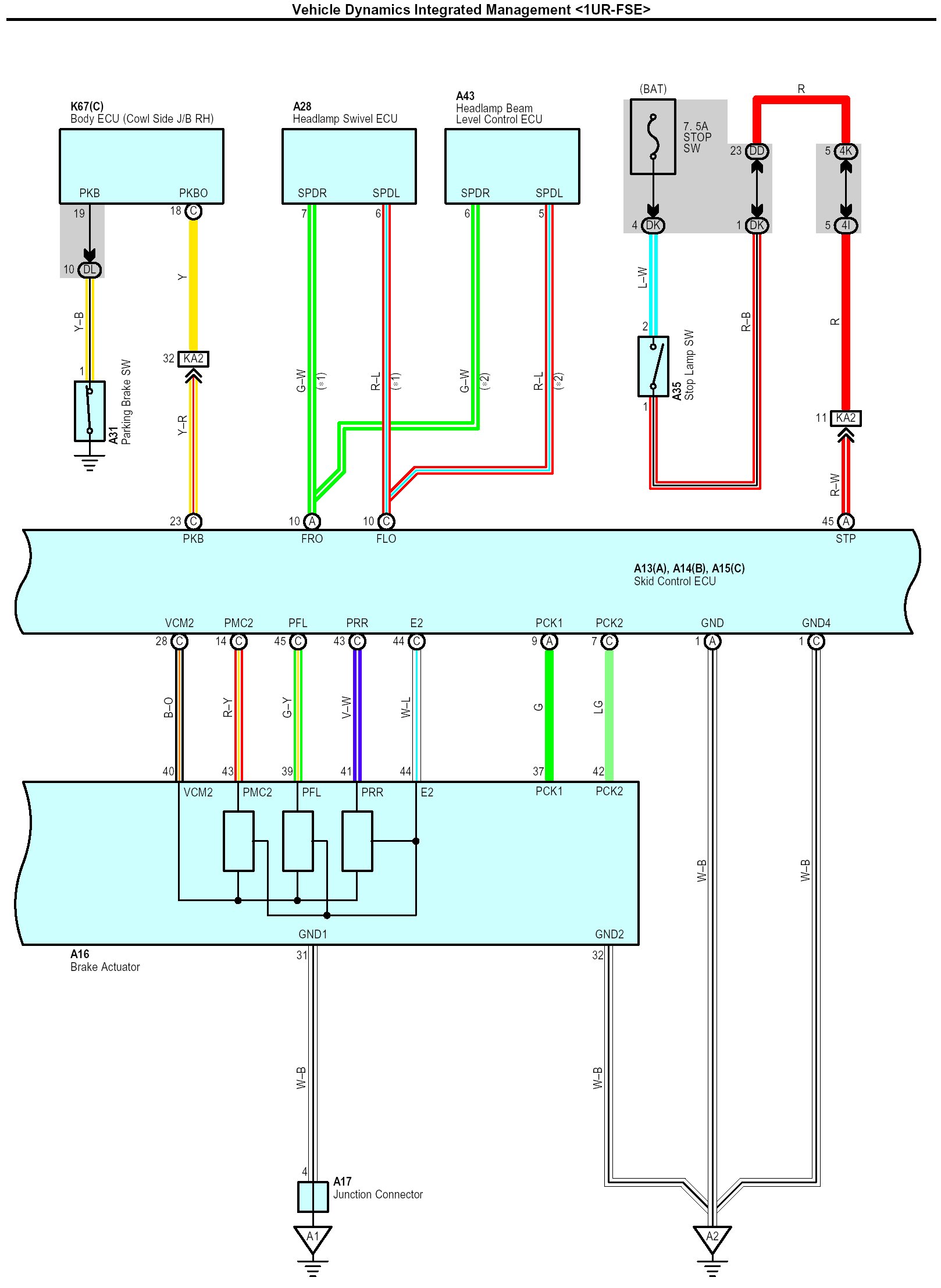

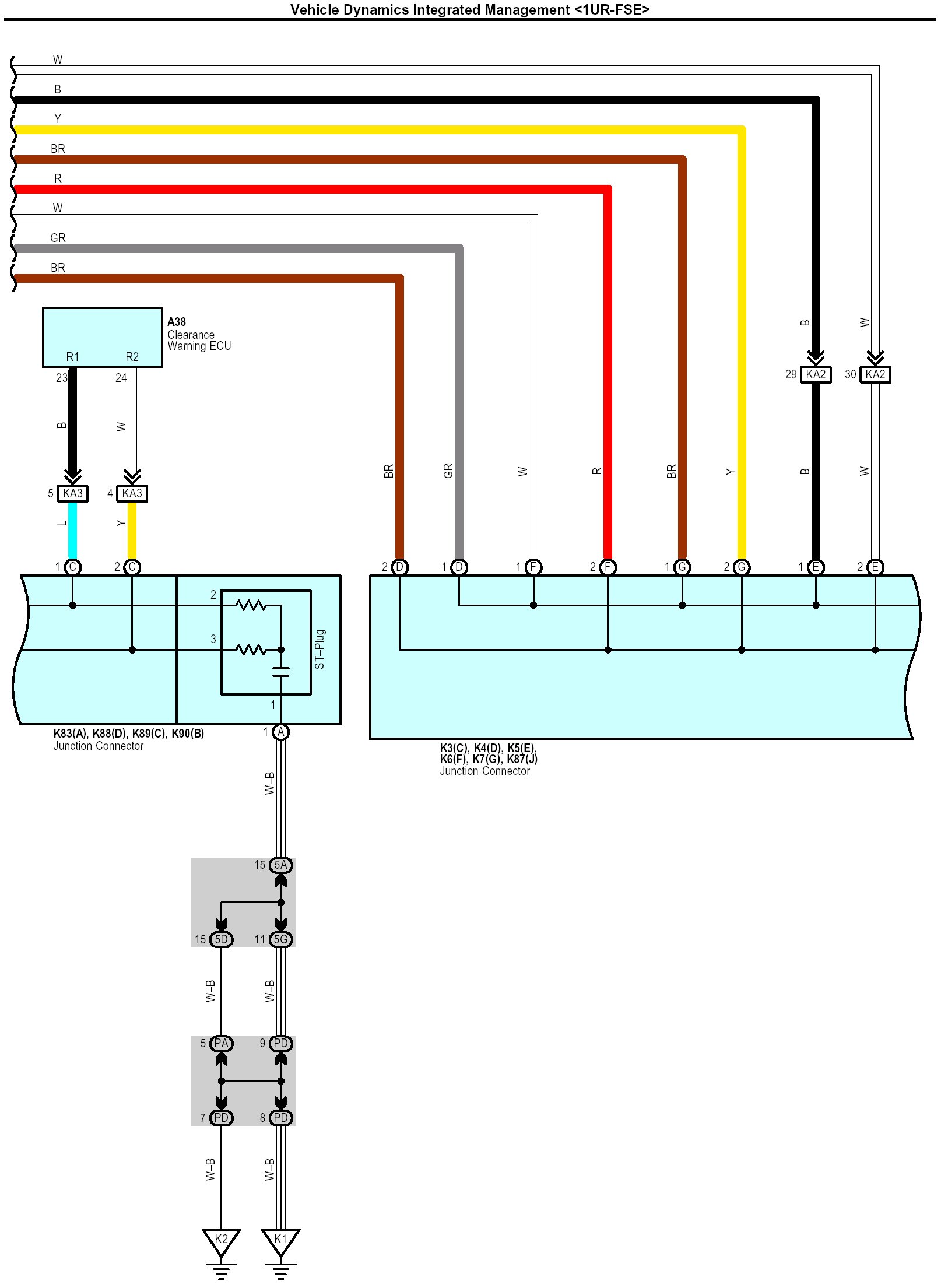

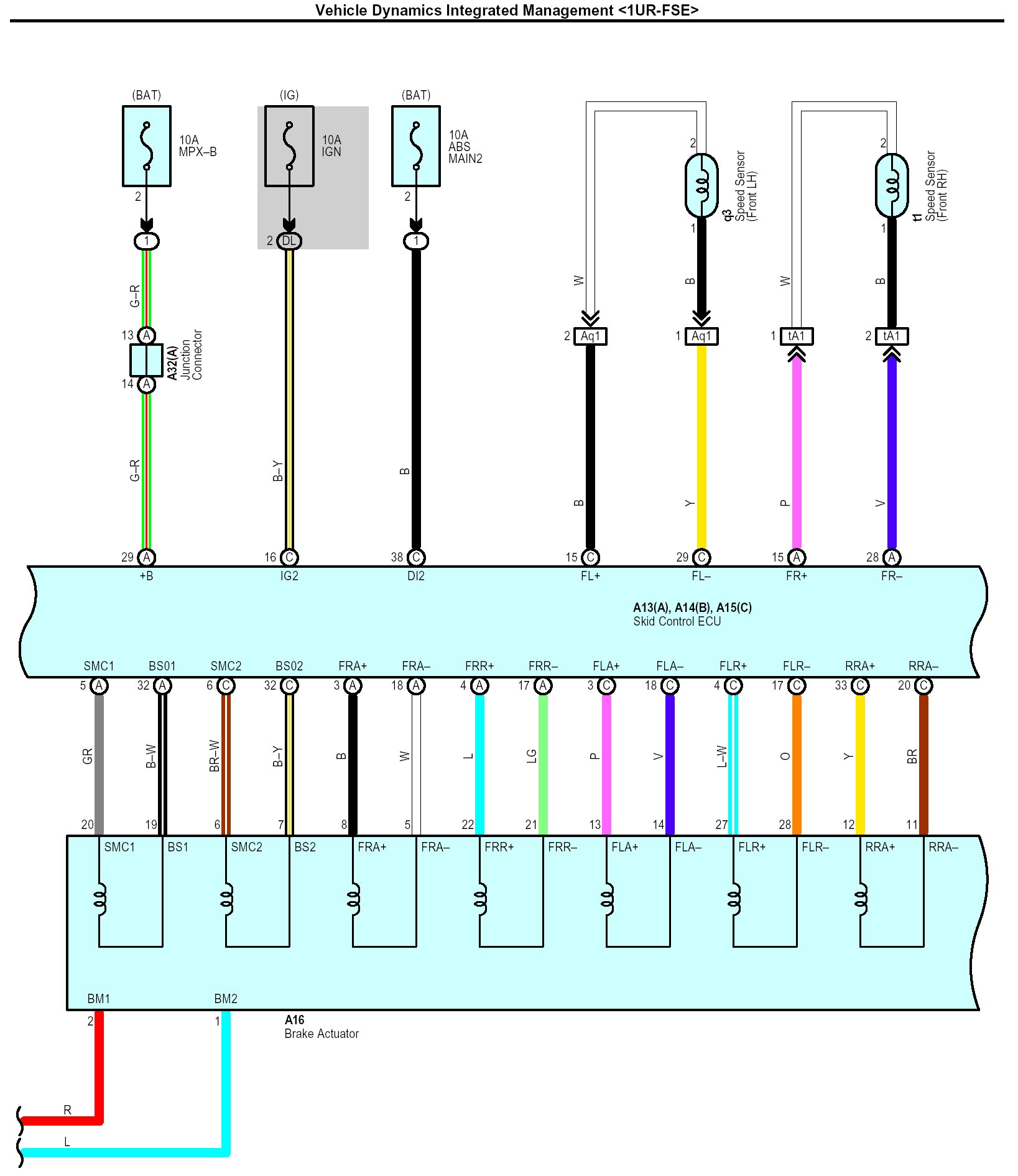

Vehicle Dynamics Integrated Management Part 1:

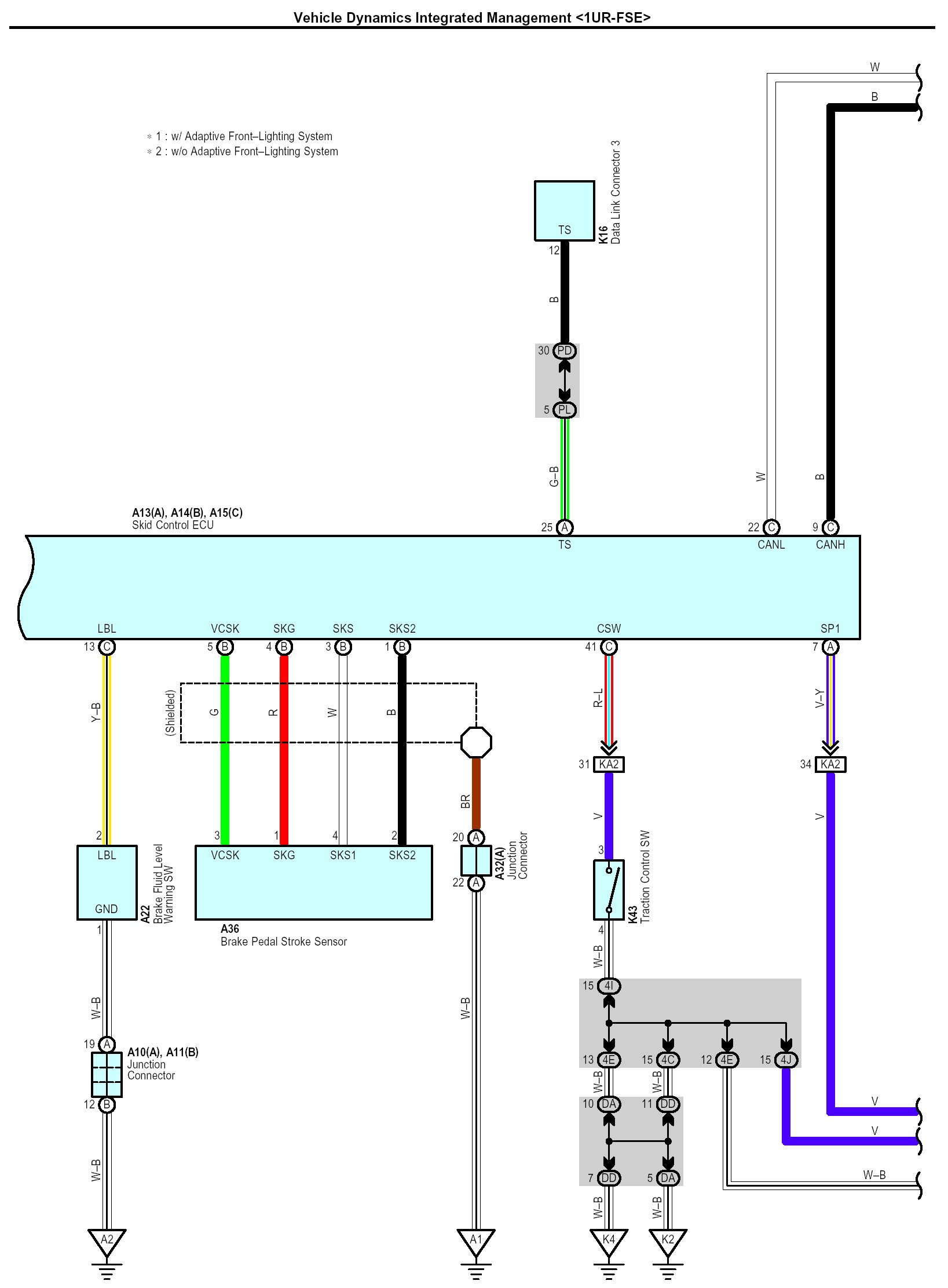

Vehicle Dynamics Integrated Management Part 2:

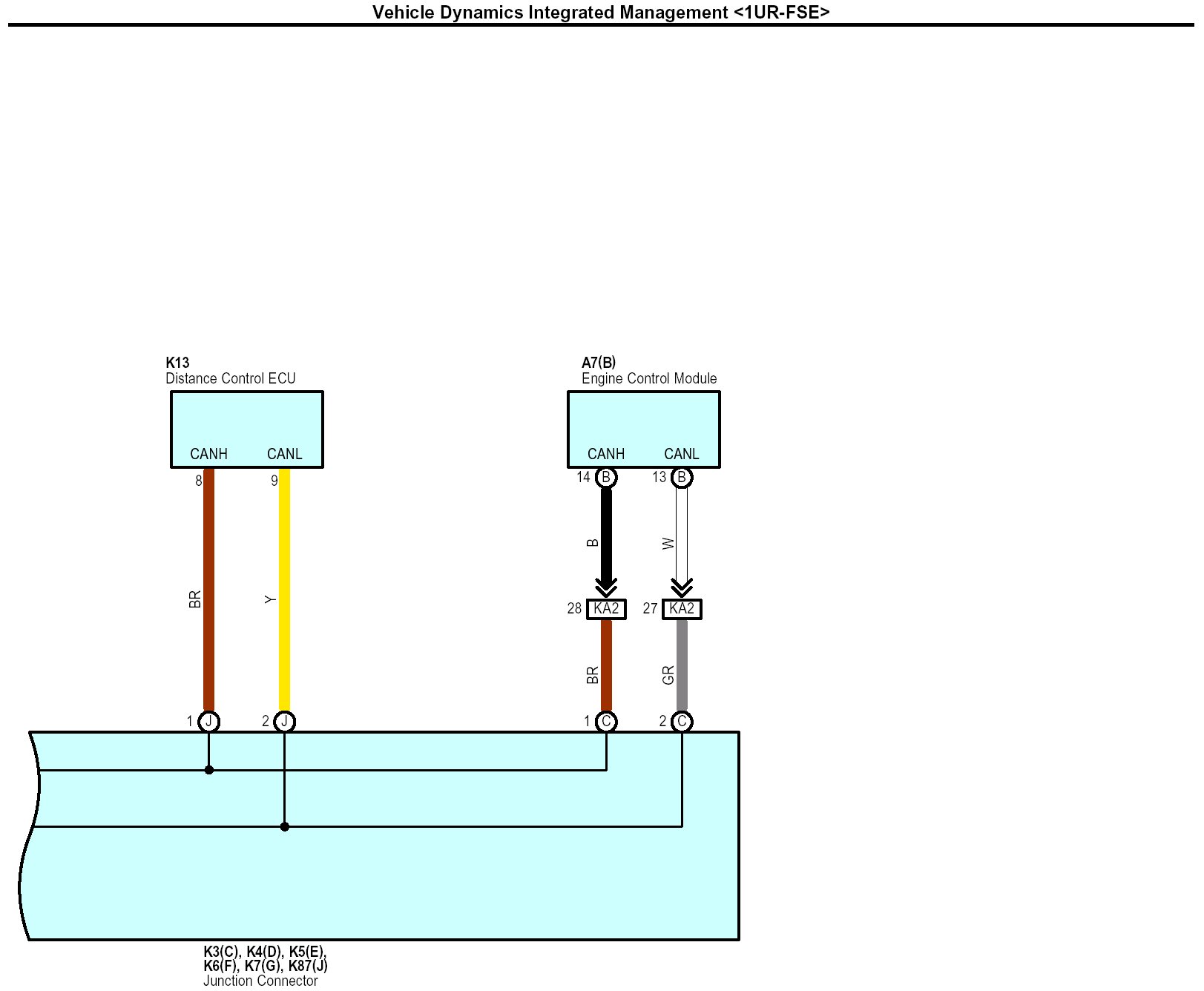

Vehicle Dynamics Integrated Management Part 3:

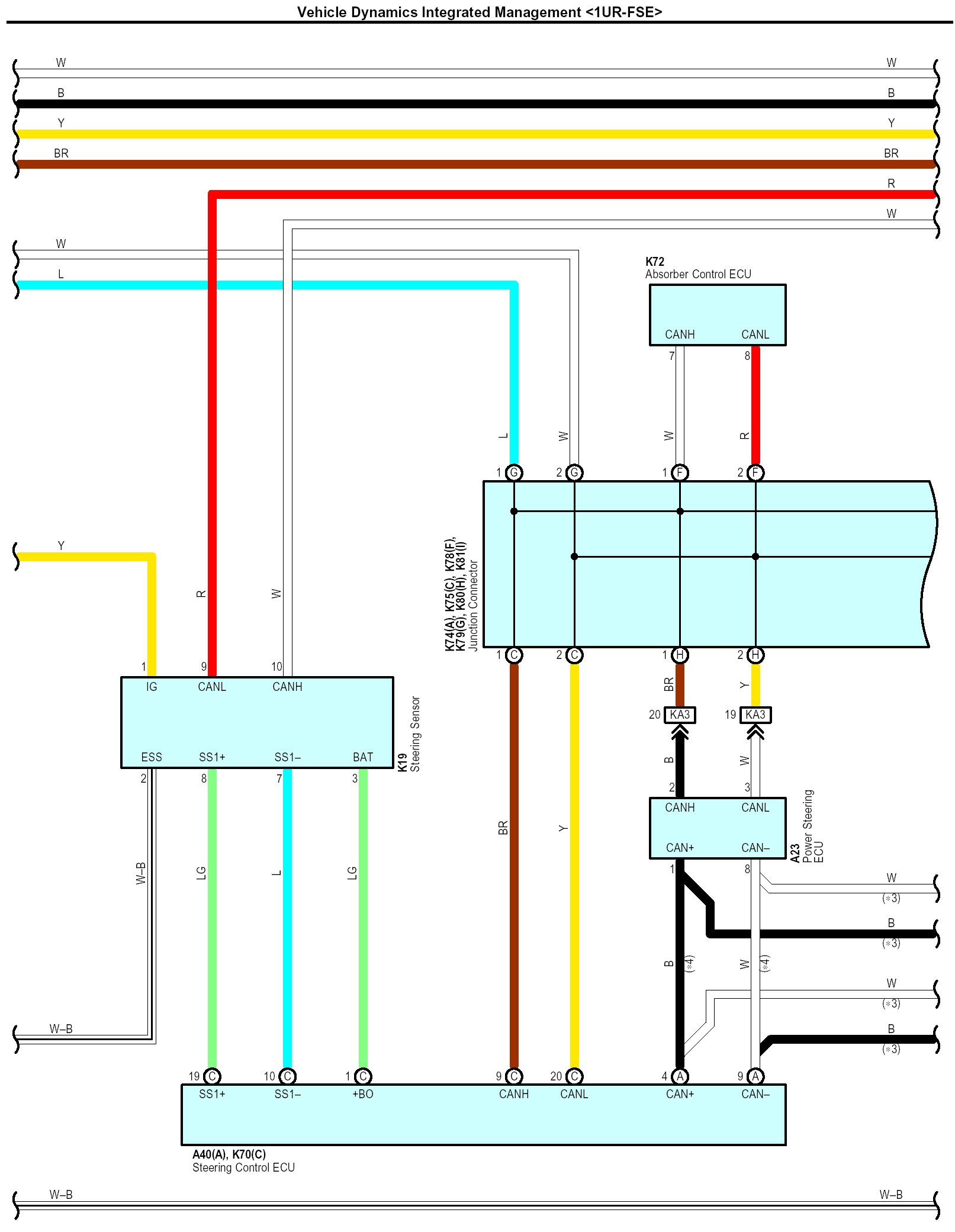

Vehicle Dynamics Integrated Management Part 4:

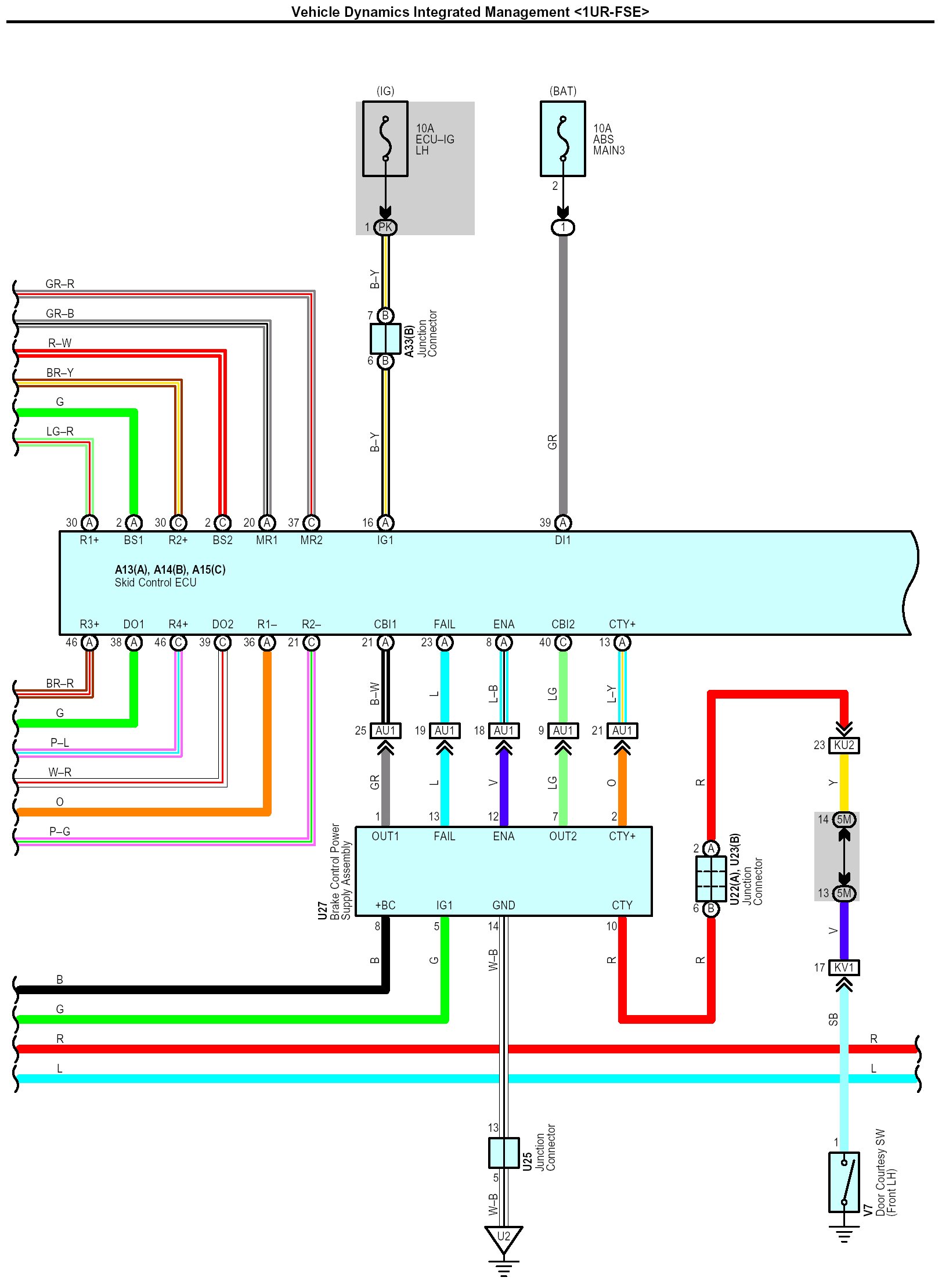

Vehicle Dynamics Integrated Management Part 5:

Vehicle Dynamics Integrated Management Part 6:

Vehicle Dynamics Integrated Management Part 7:

Vehicle Dynamics Integrated Management Part 8:

Vehicle Dynamics Integrated Management Part 9:

Vehicle Dynamics Integrated Management Part 10:

Vehicle Dynamics Integrated Management Part 11:

Vehicle Dynamics Integrated Management Part 12:

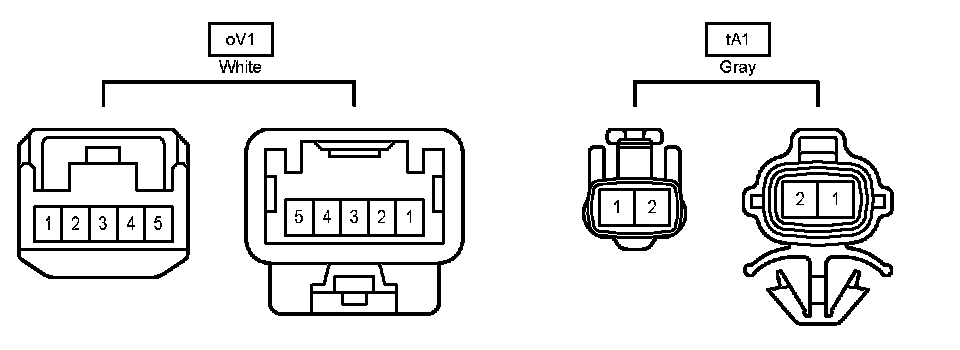

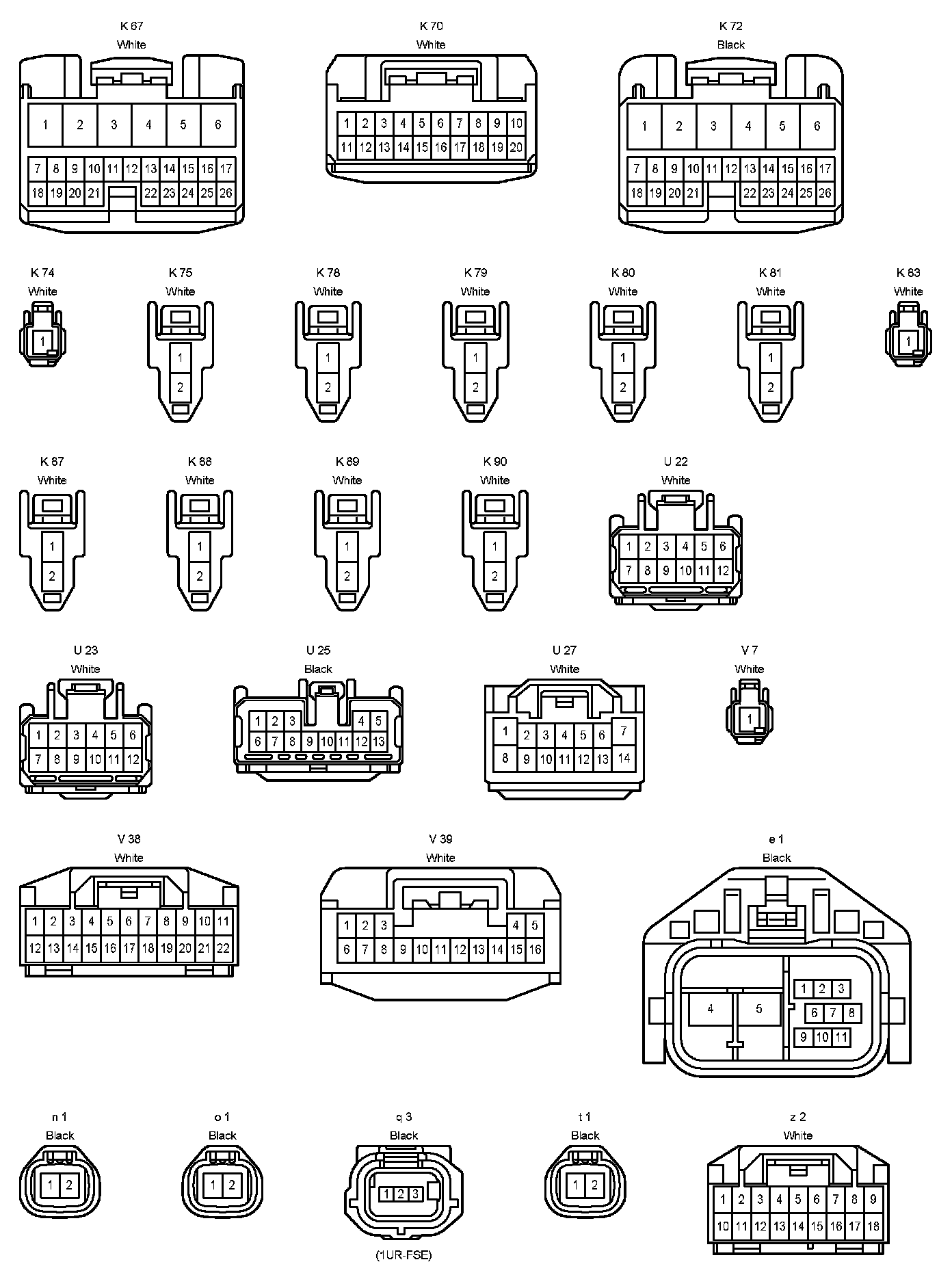

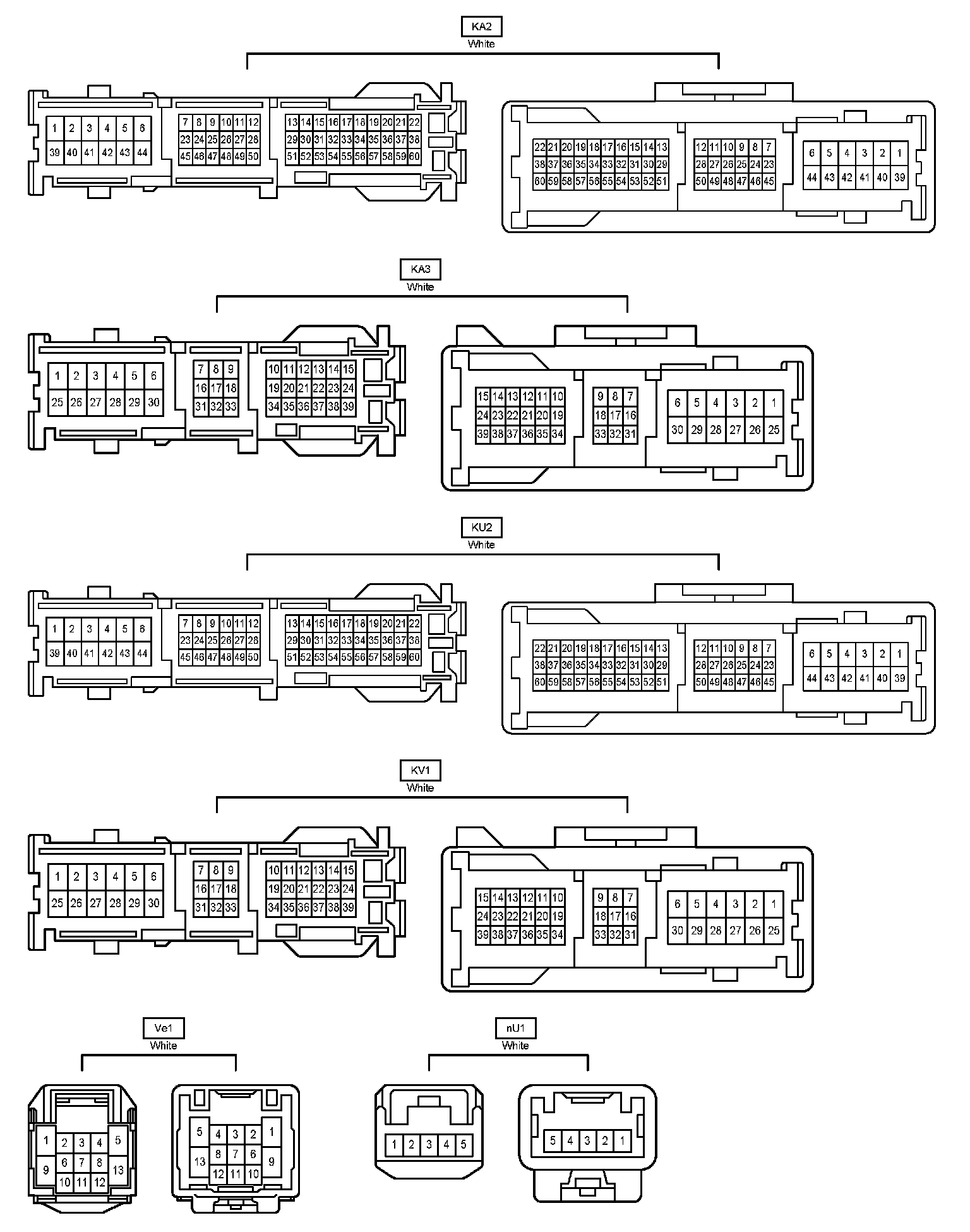

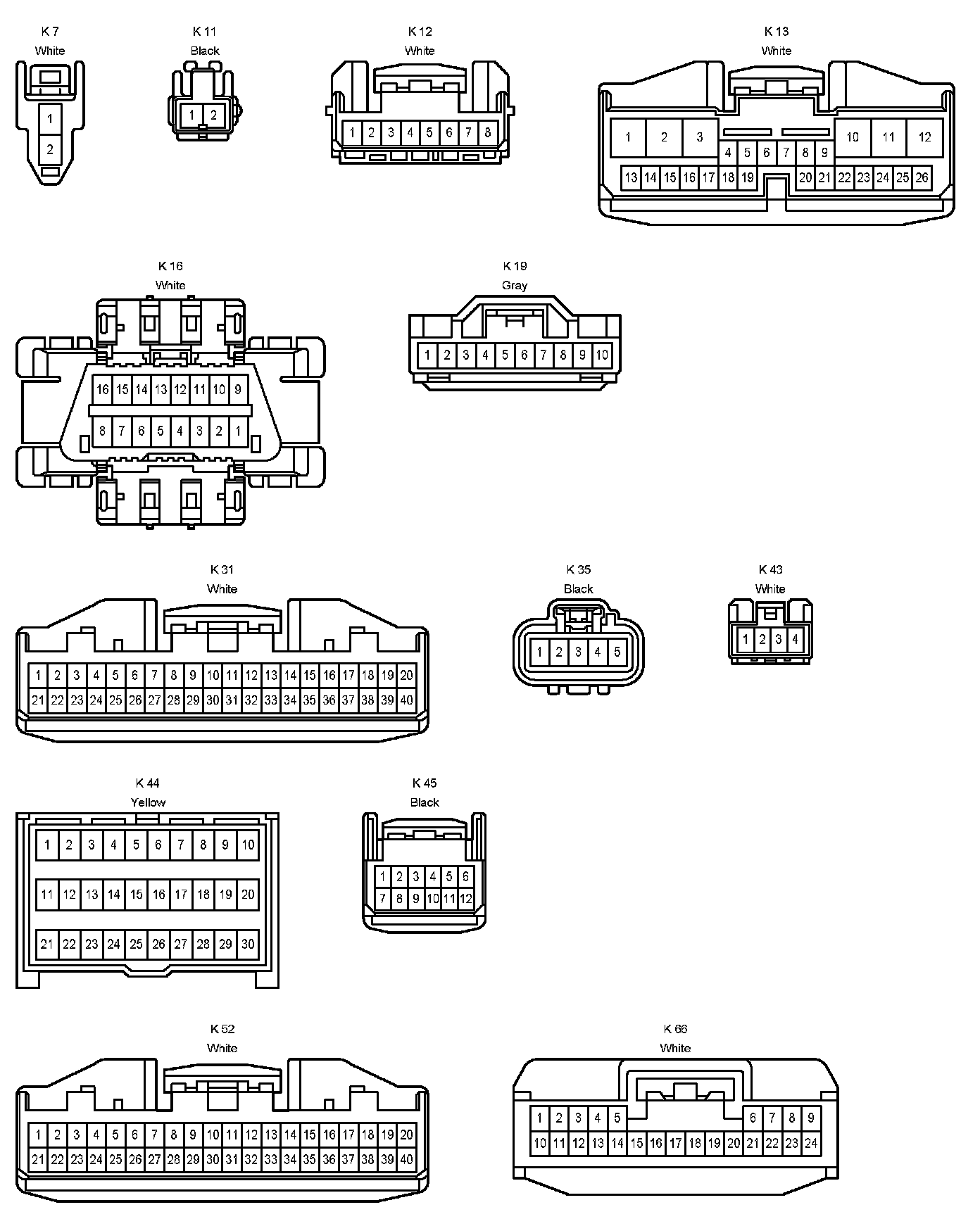

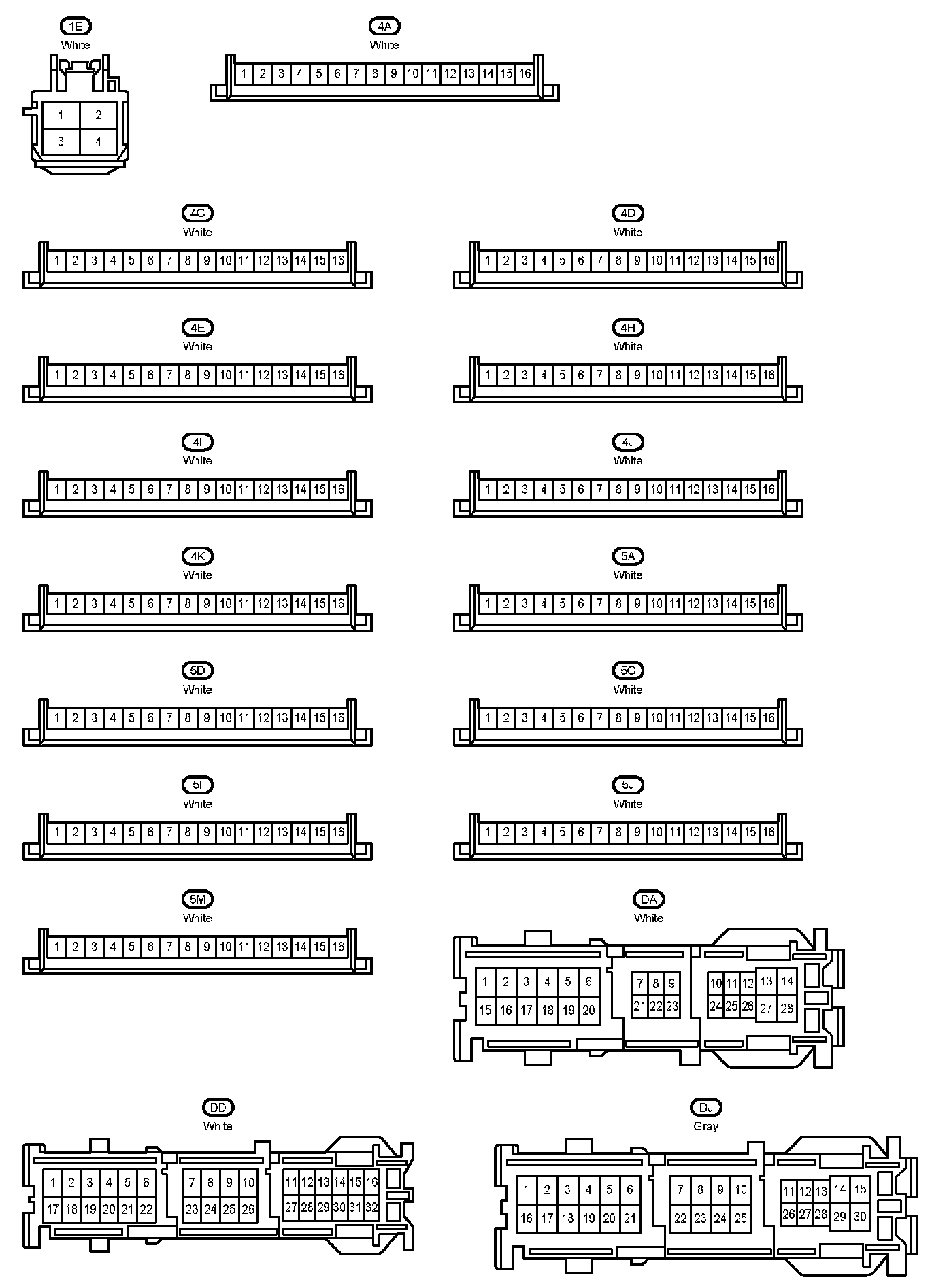

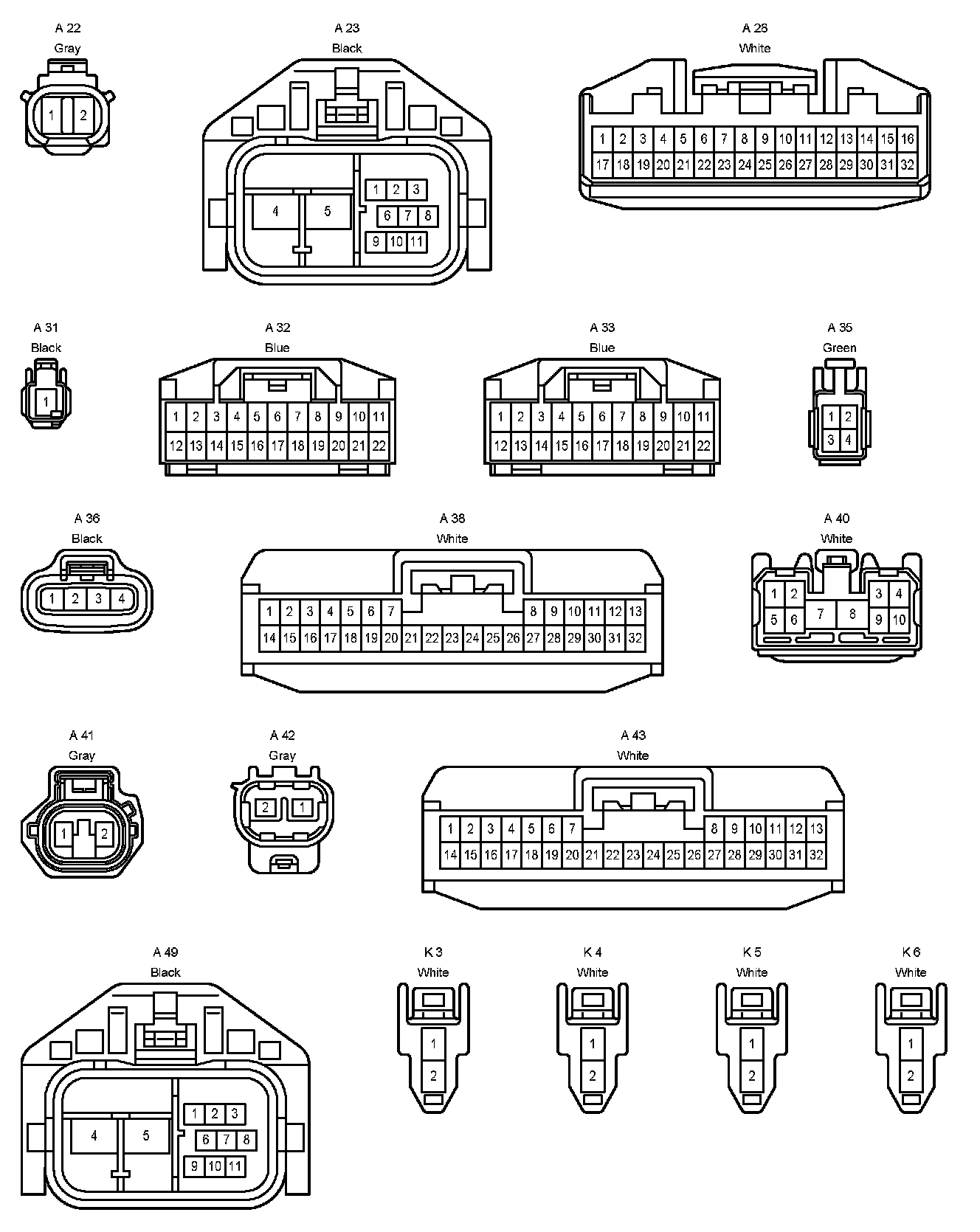

Connector Pin Outs Part 1:

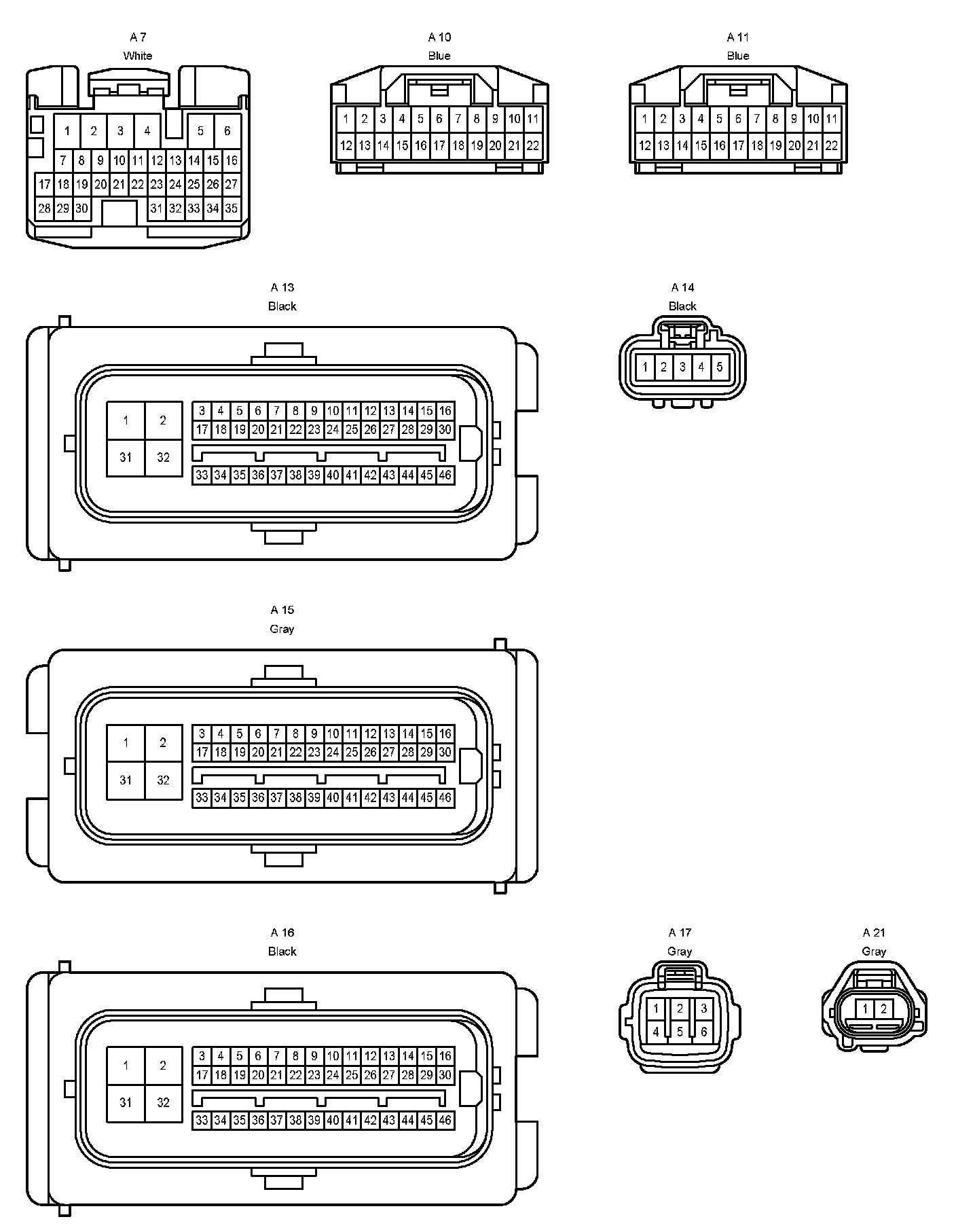

Connector Pin Outs Part 2:

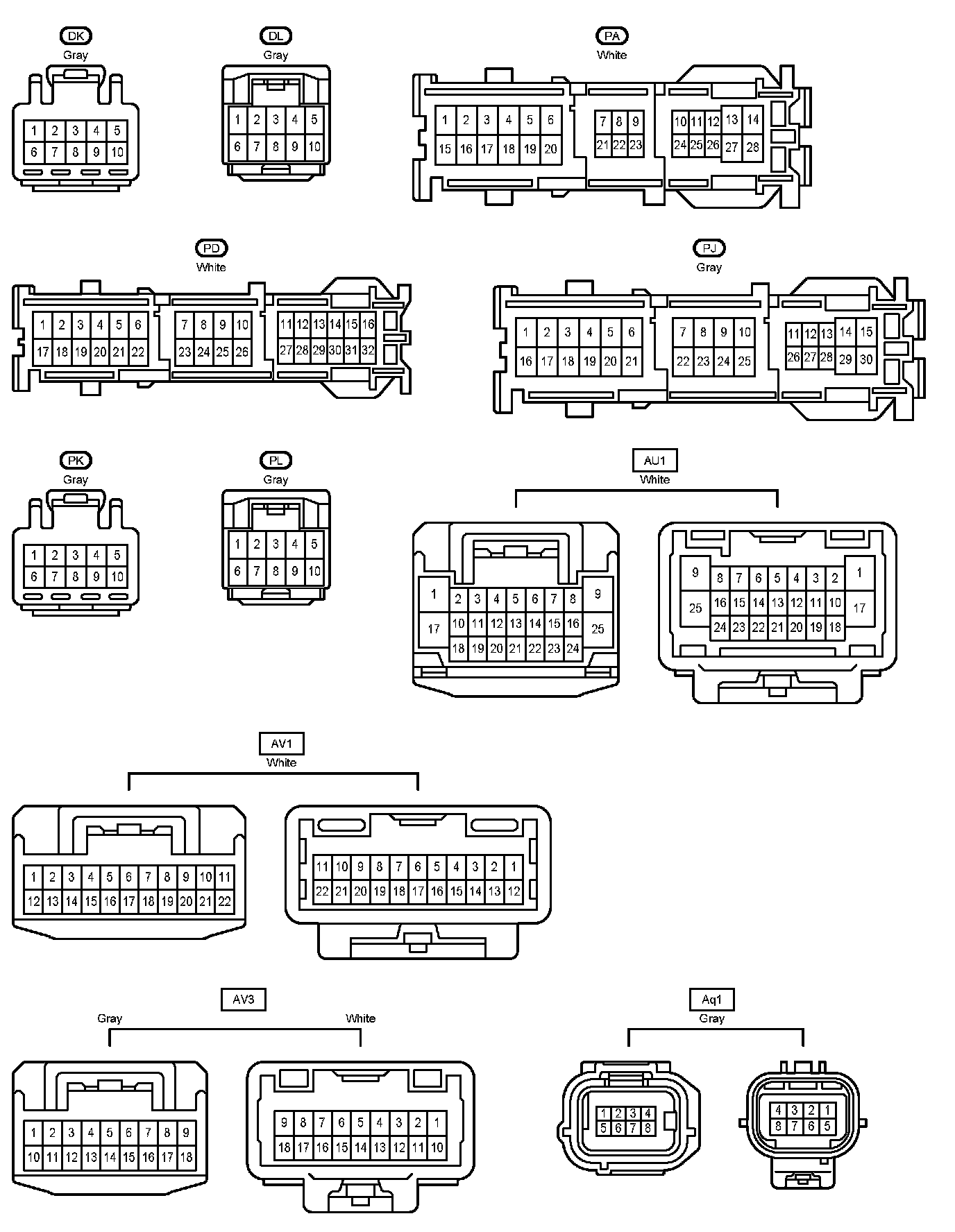

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
