Cruise Control

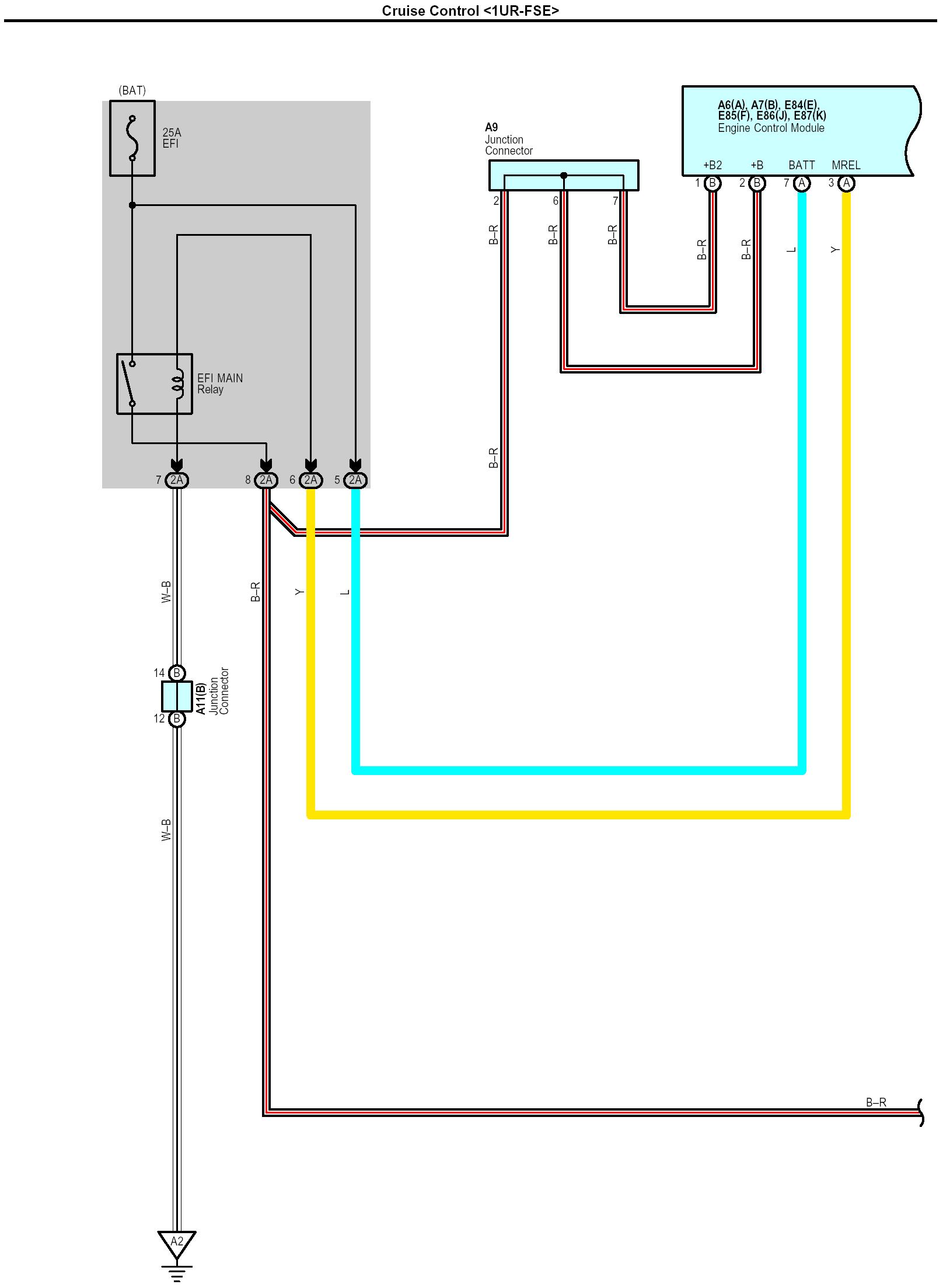

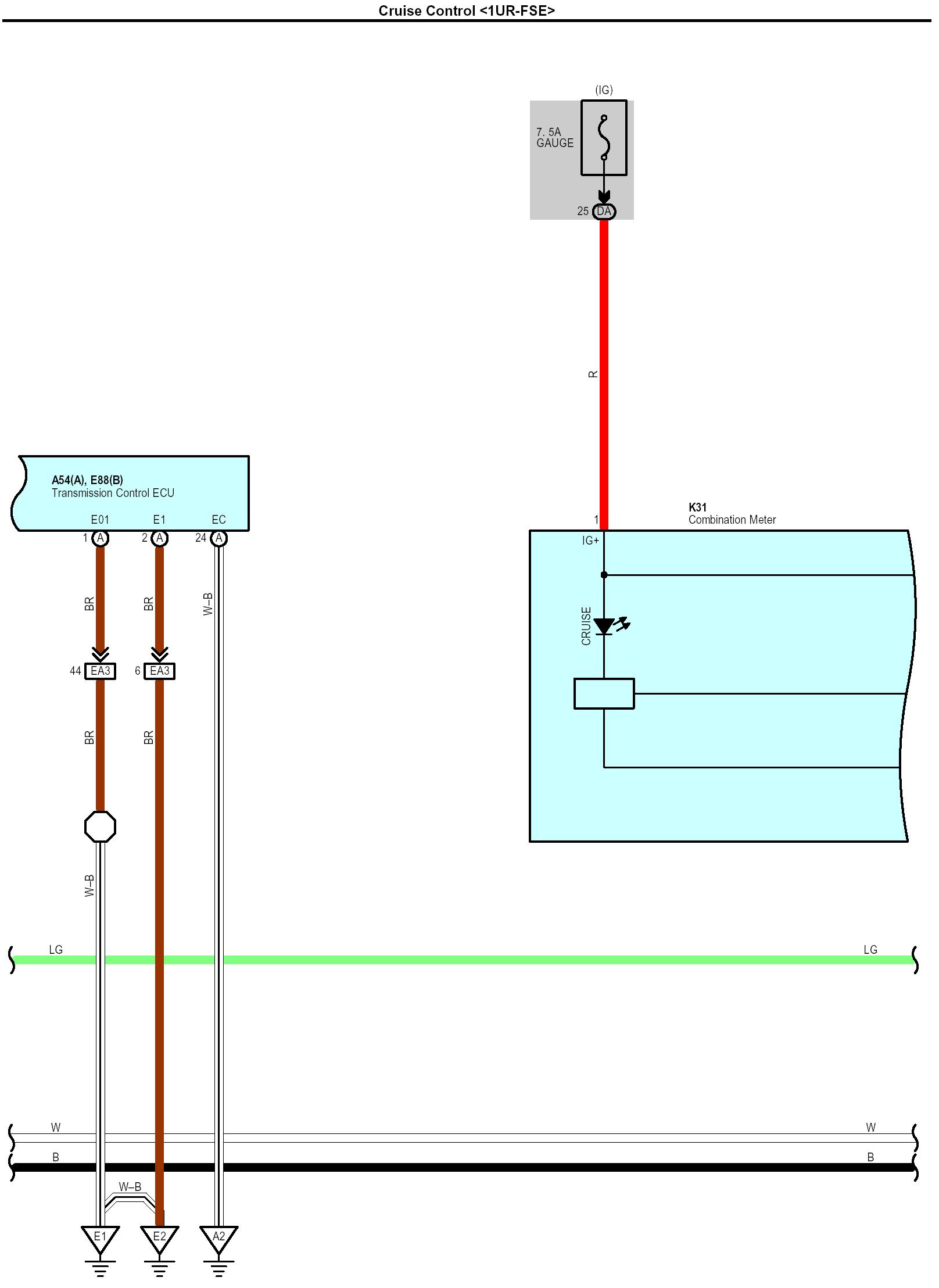

Cruise Control Part 1:

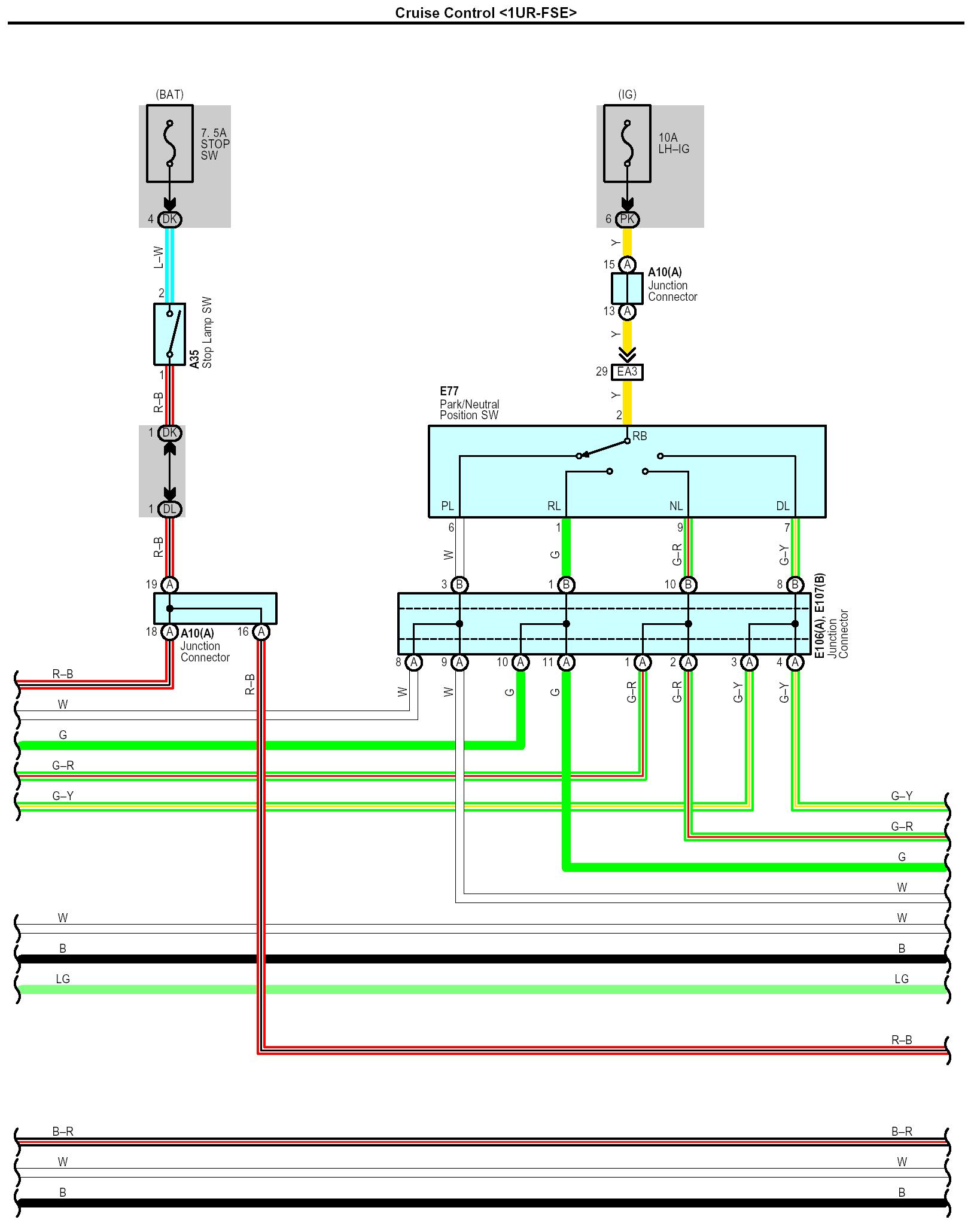

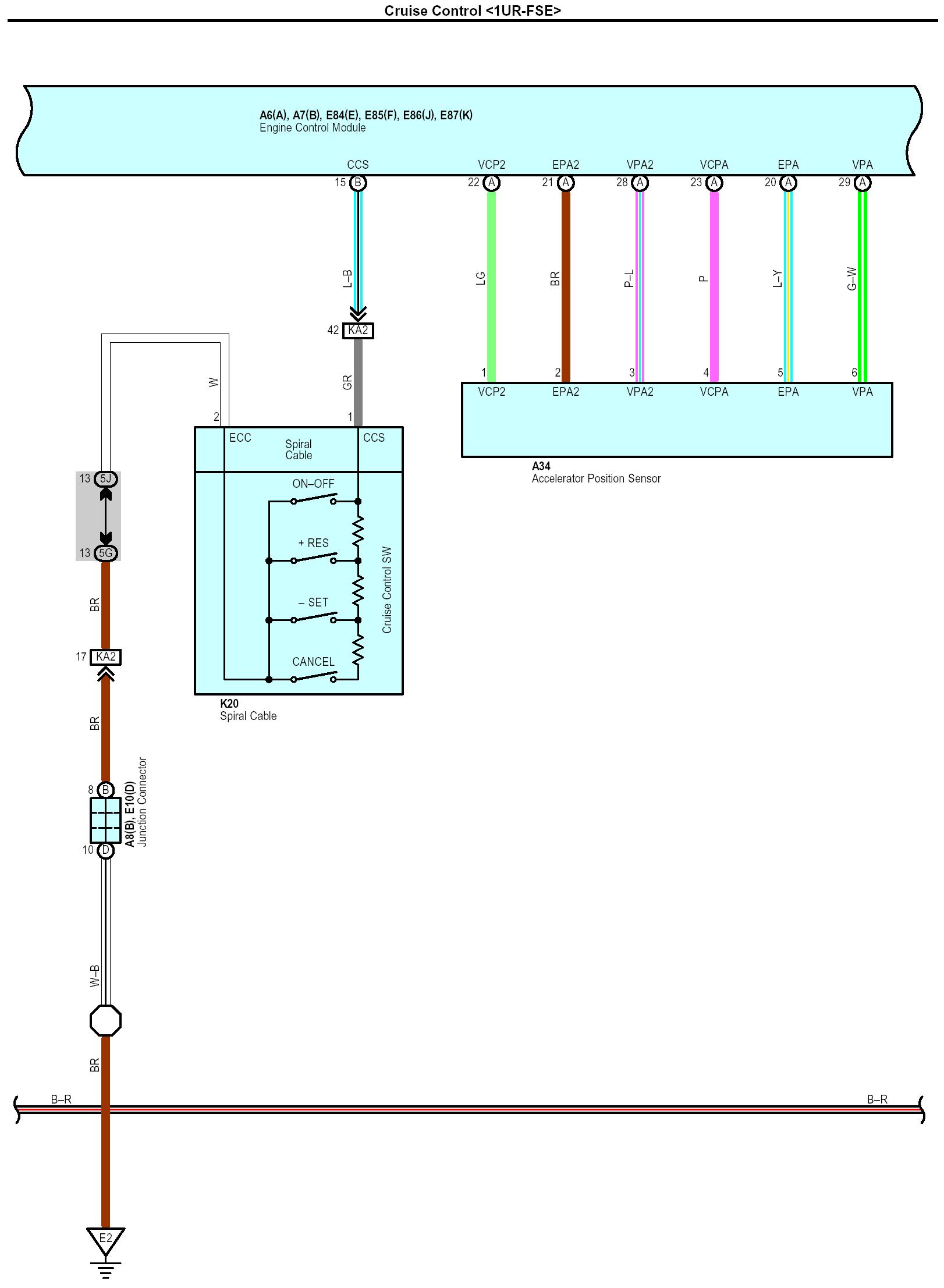

Cruise Control Part 2:

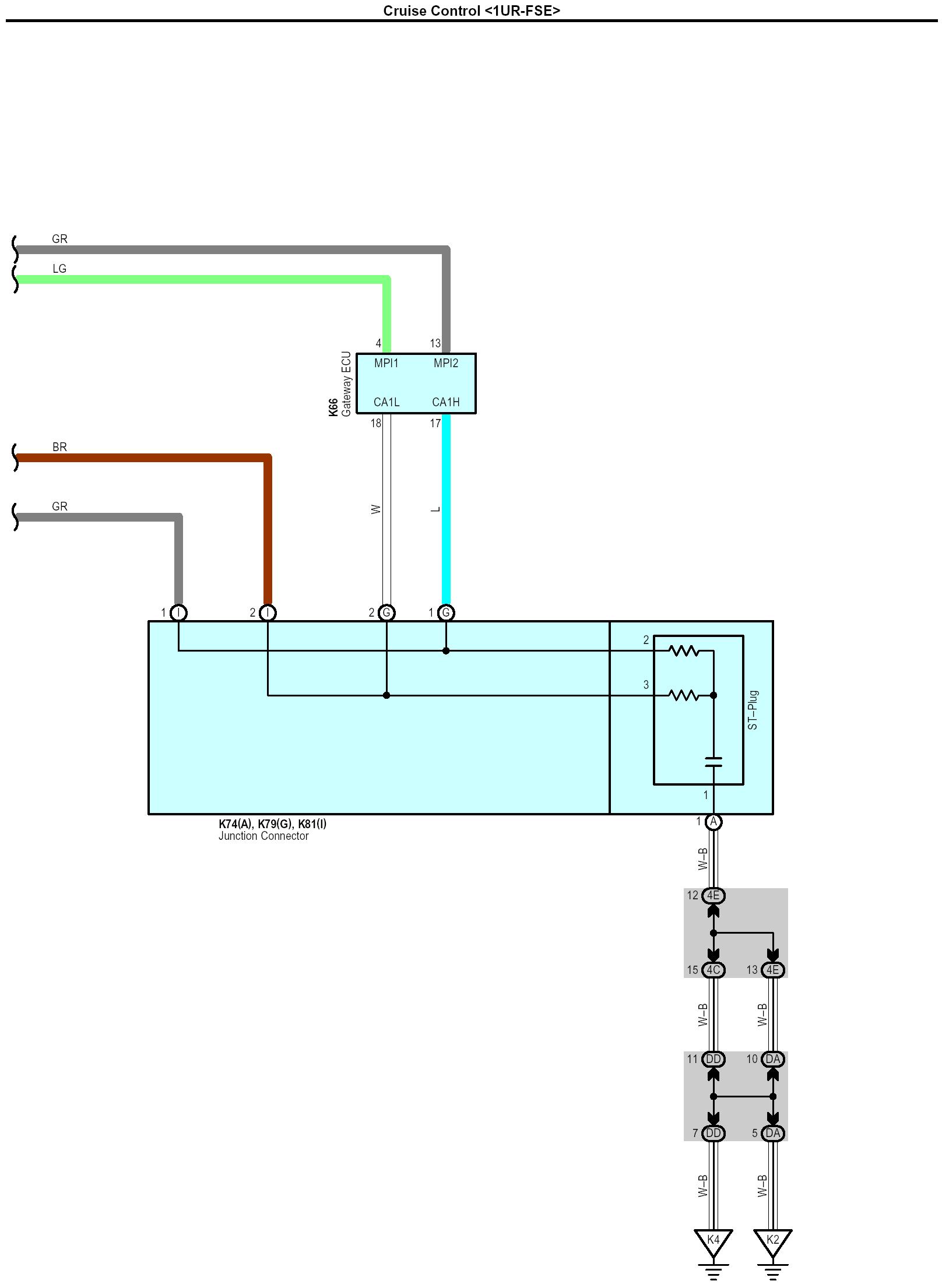

Cruise Control Part 3:

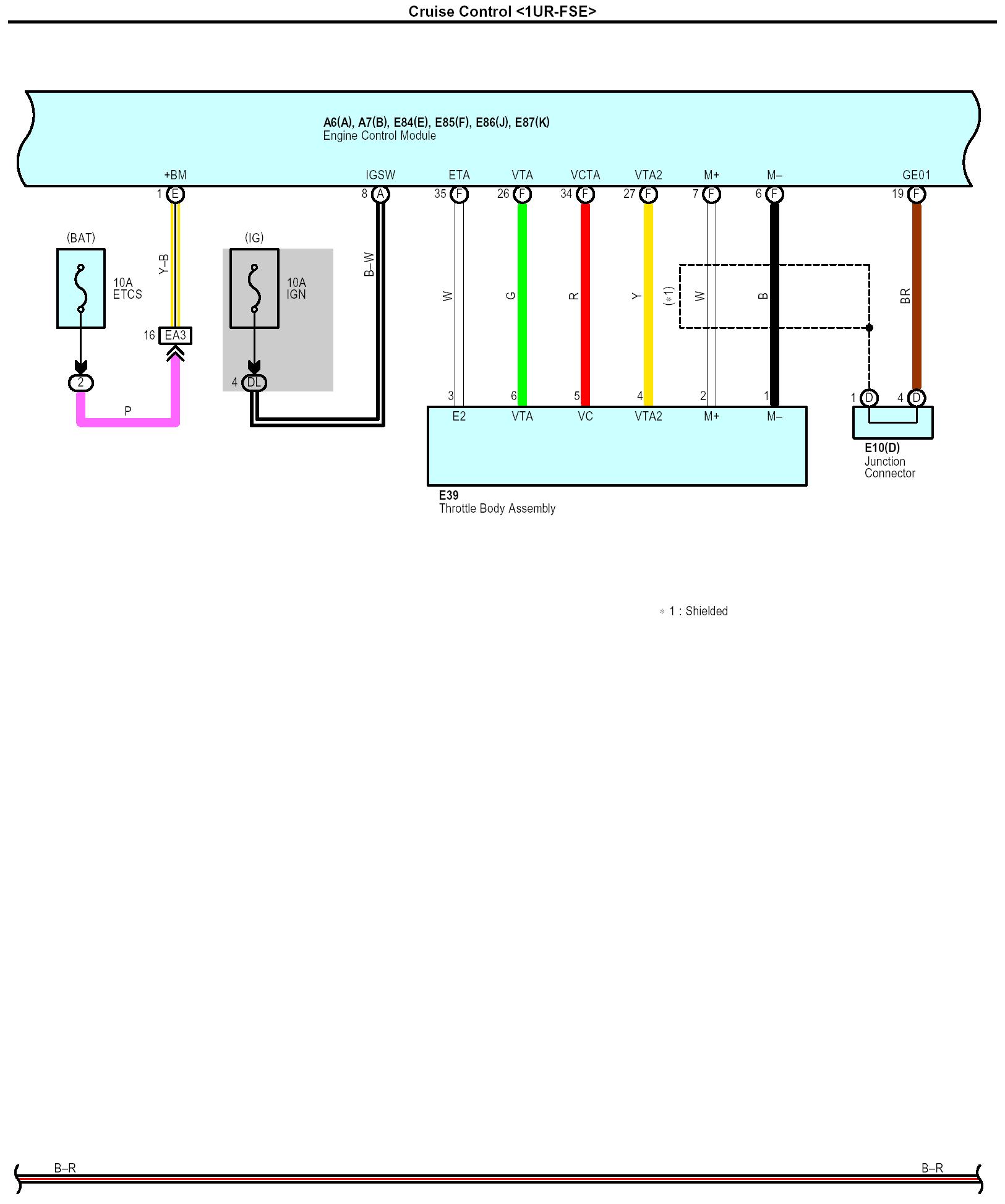

Cruise Control Part 4:

Cruise Control Part 5:

Cruise Control Part 6:

Cruise Control Part 7:

Cruise Control Part 8:

Cruise Control Part 9:

Cruise Control Part 10:

Cruise Control Part 11:

Cruise Control Part 12:

Cruise Control Part 13:

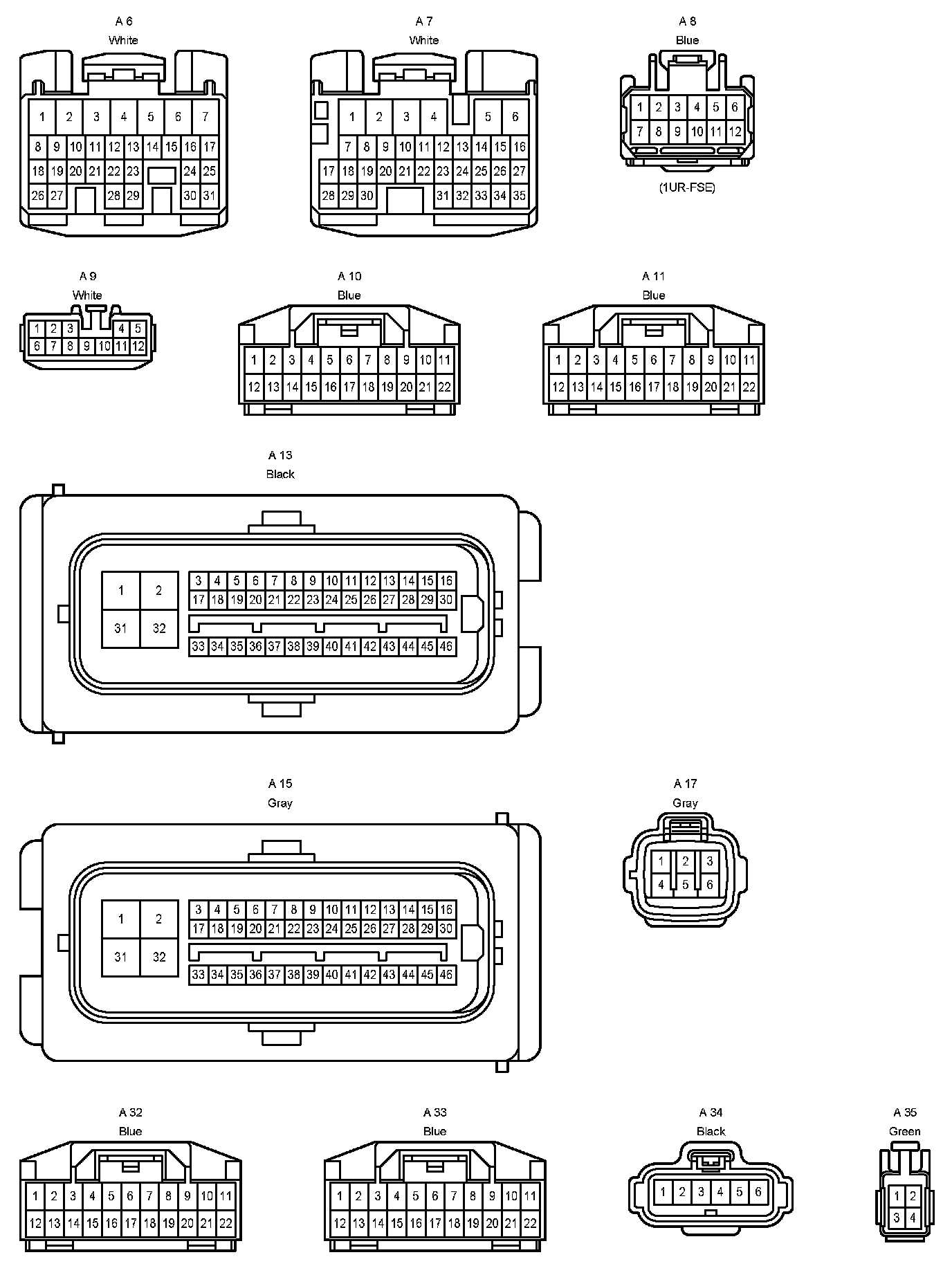

Connector Pin Outs Part 1:

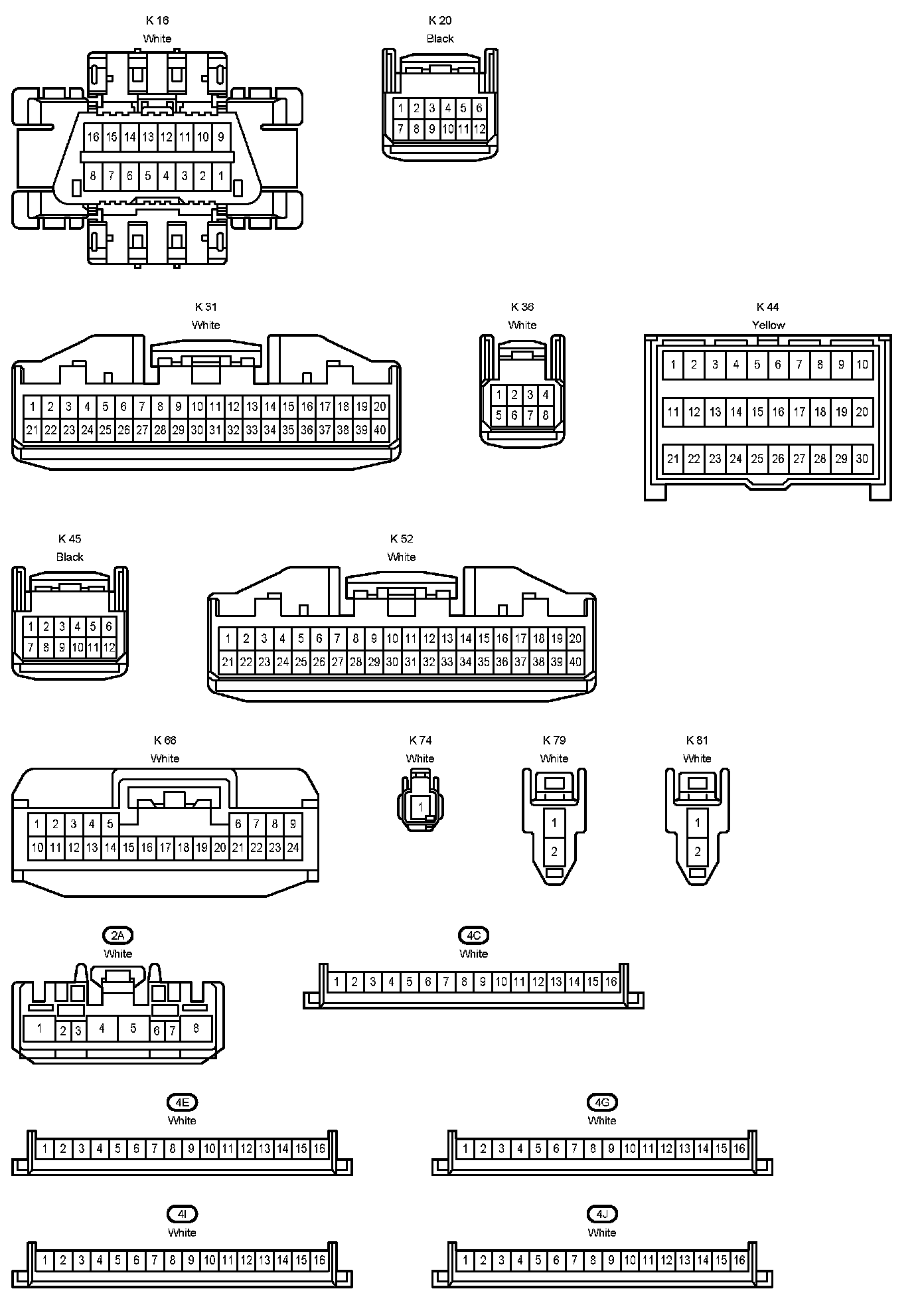

Connector Pin Outs Part 2:

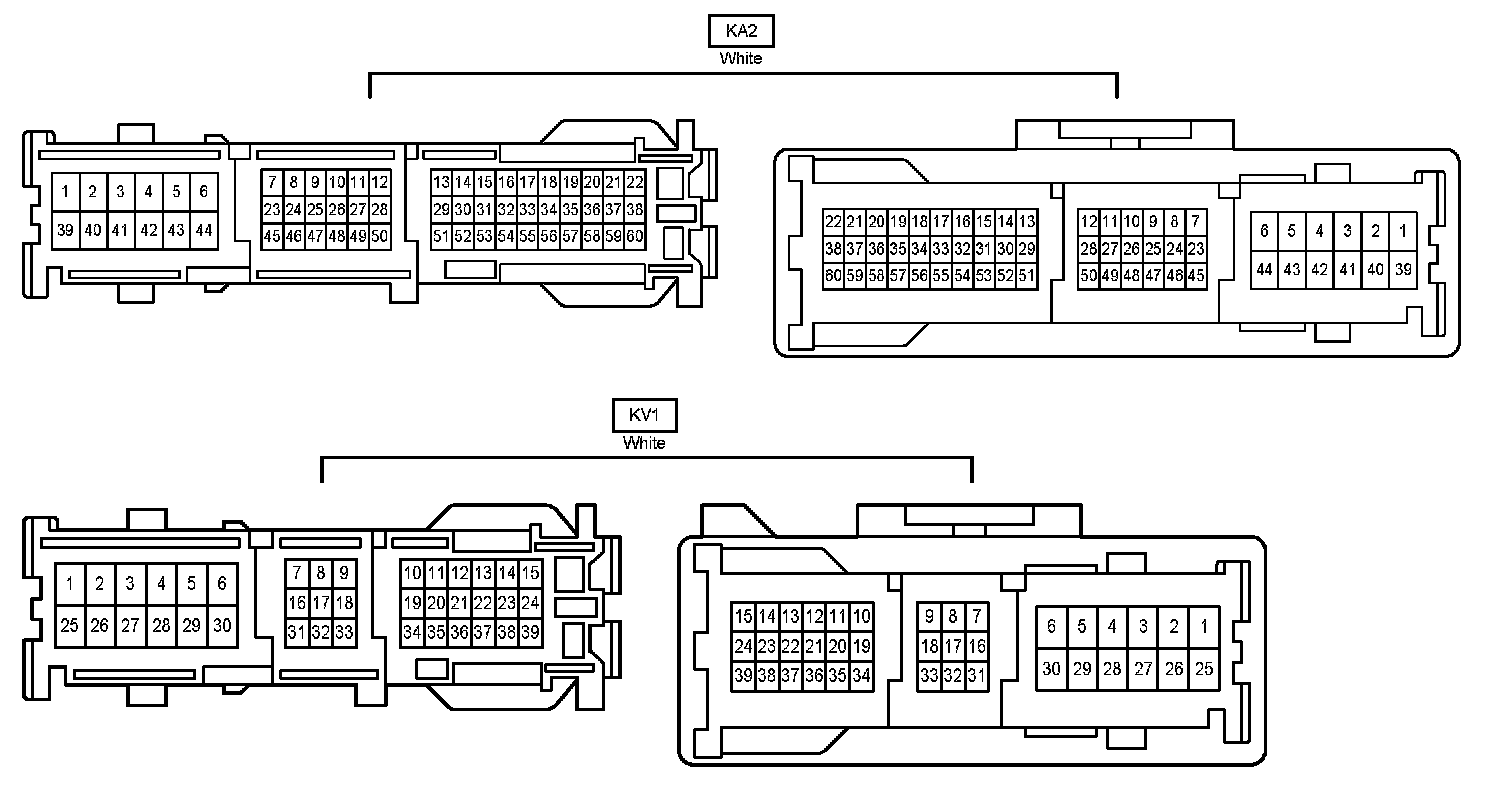

Connector Pin Outs Part 3:

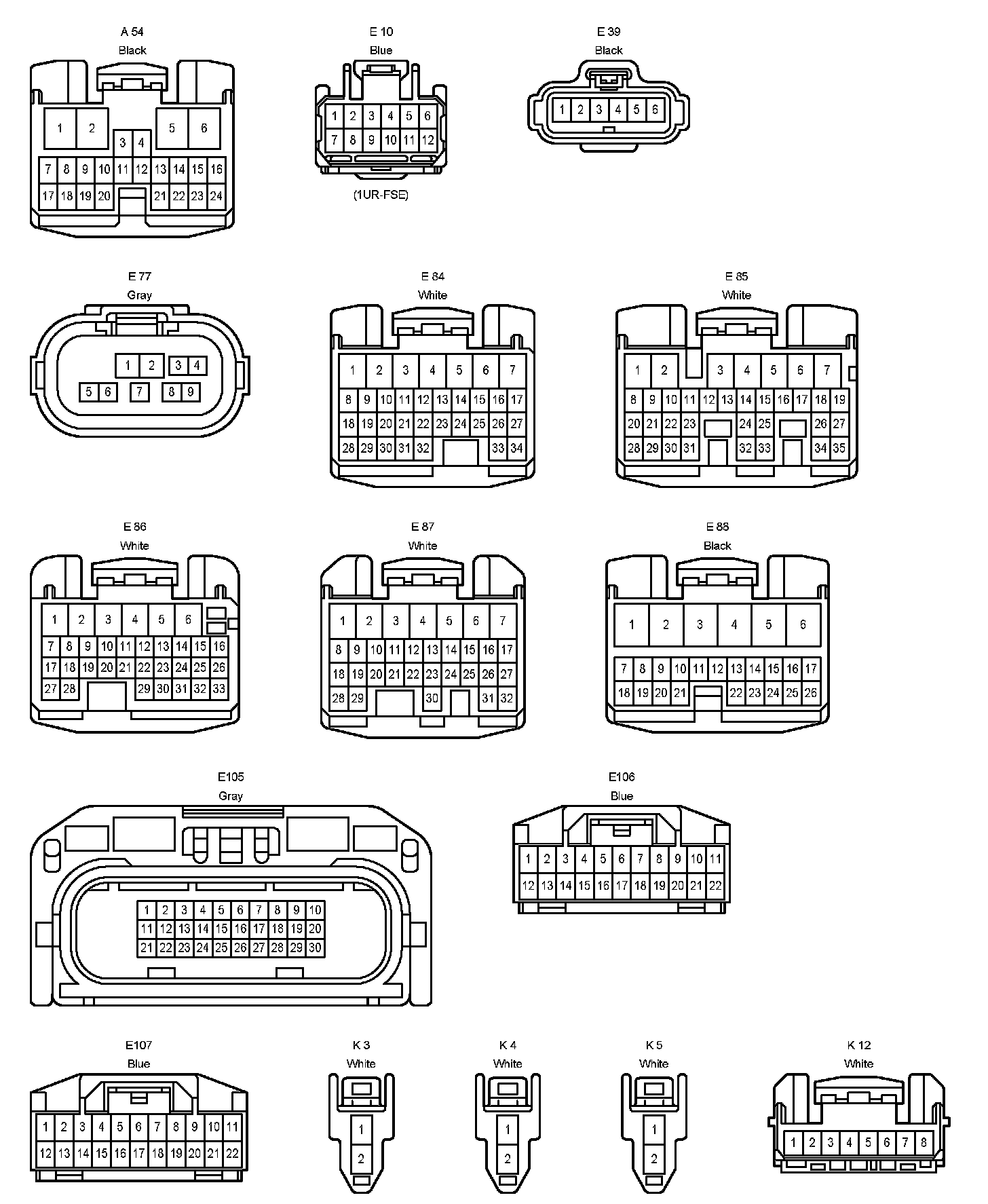

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
