Specifications
>>
Electrical Specifications
>>
Charging System
>>
System Specifications
System Specifications

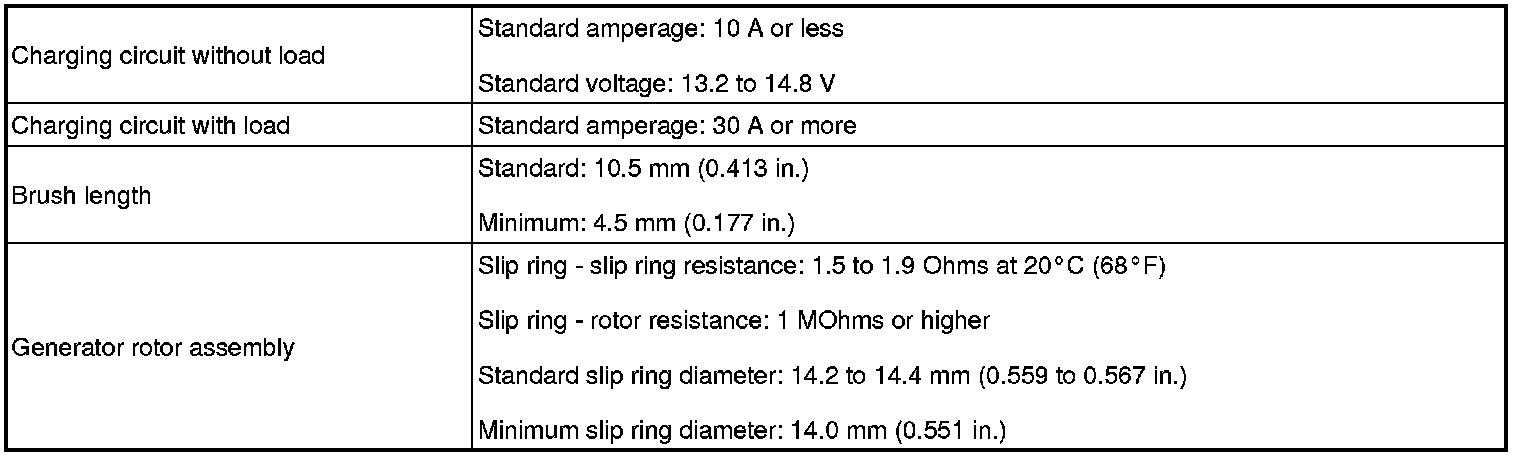

SERVICE SPECIFICATIONS: 1UR-FSE CHARGING: SERVICE DATA
