Audio and Visual System









AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

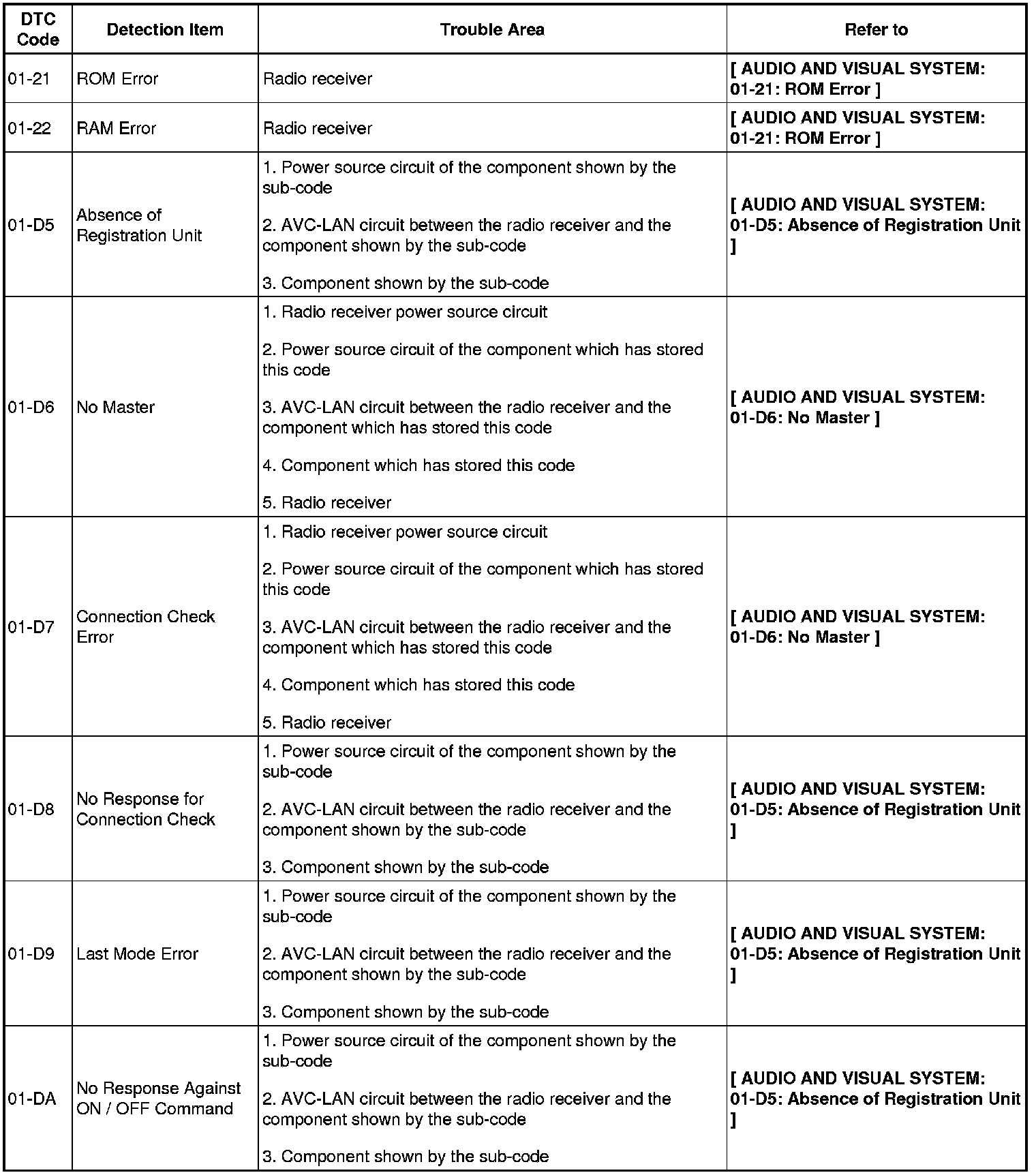

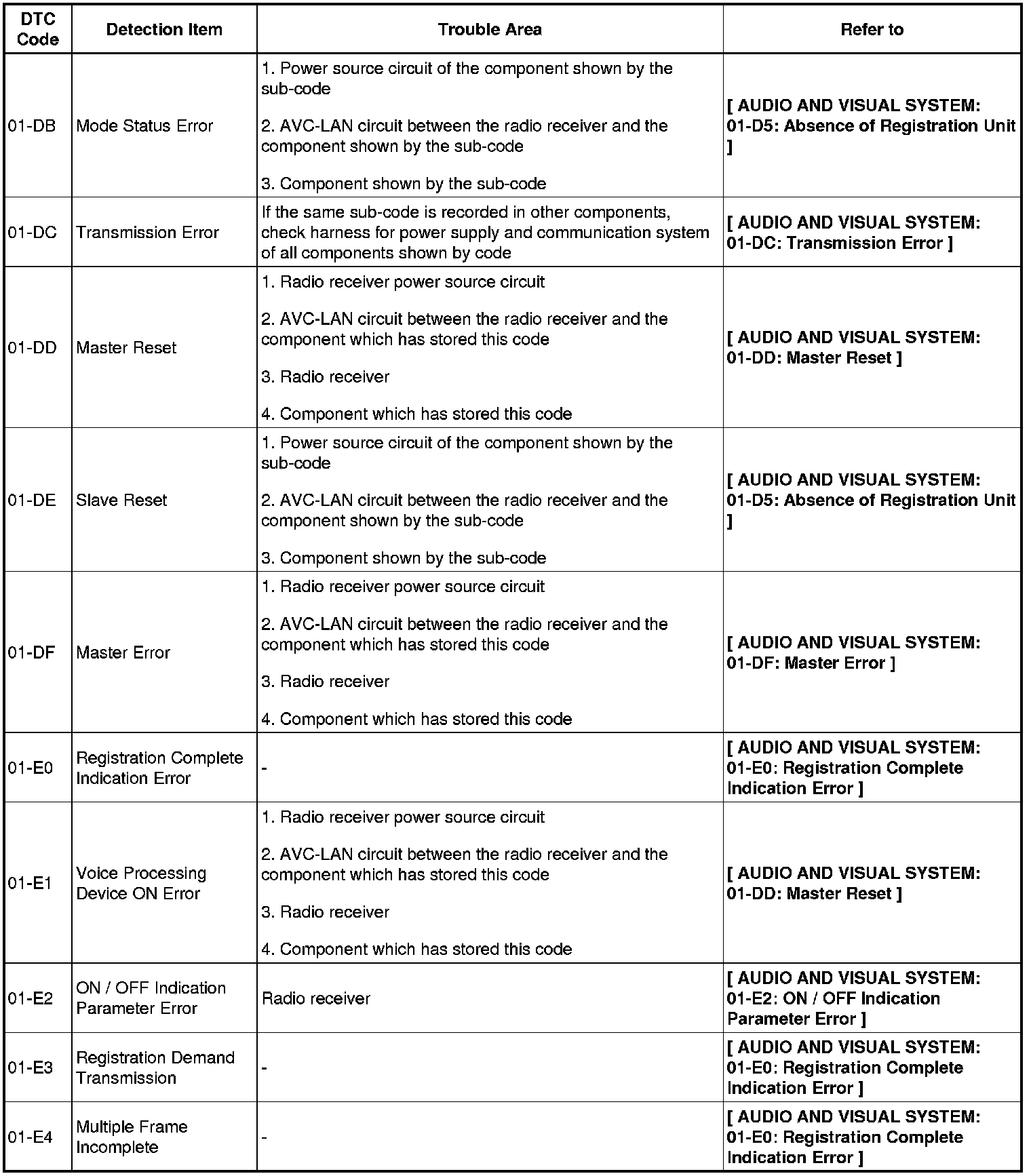

Communication Diagnosis

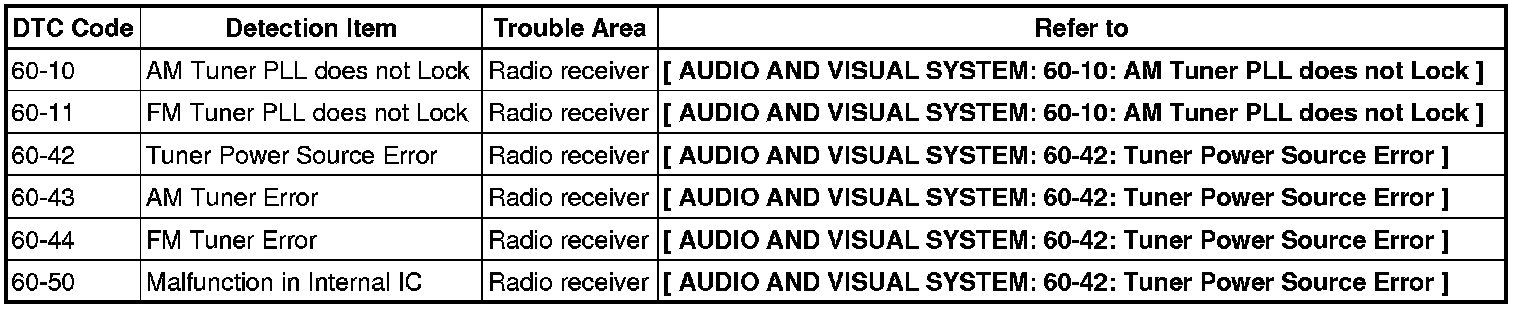

Radio Unit





In-dash CD Changer





Vol
