Power Steering System

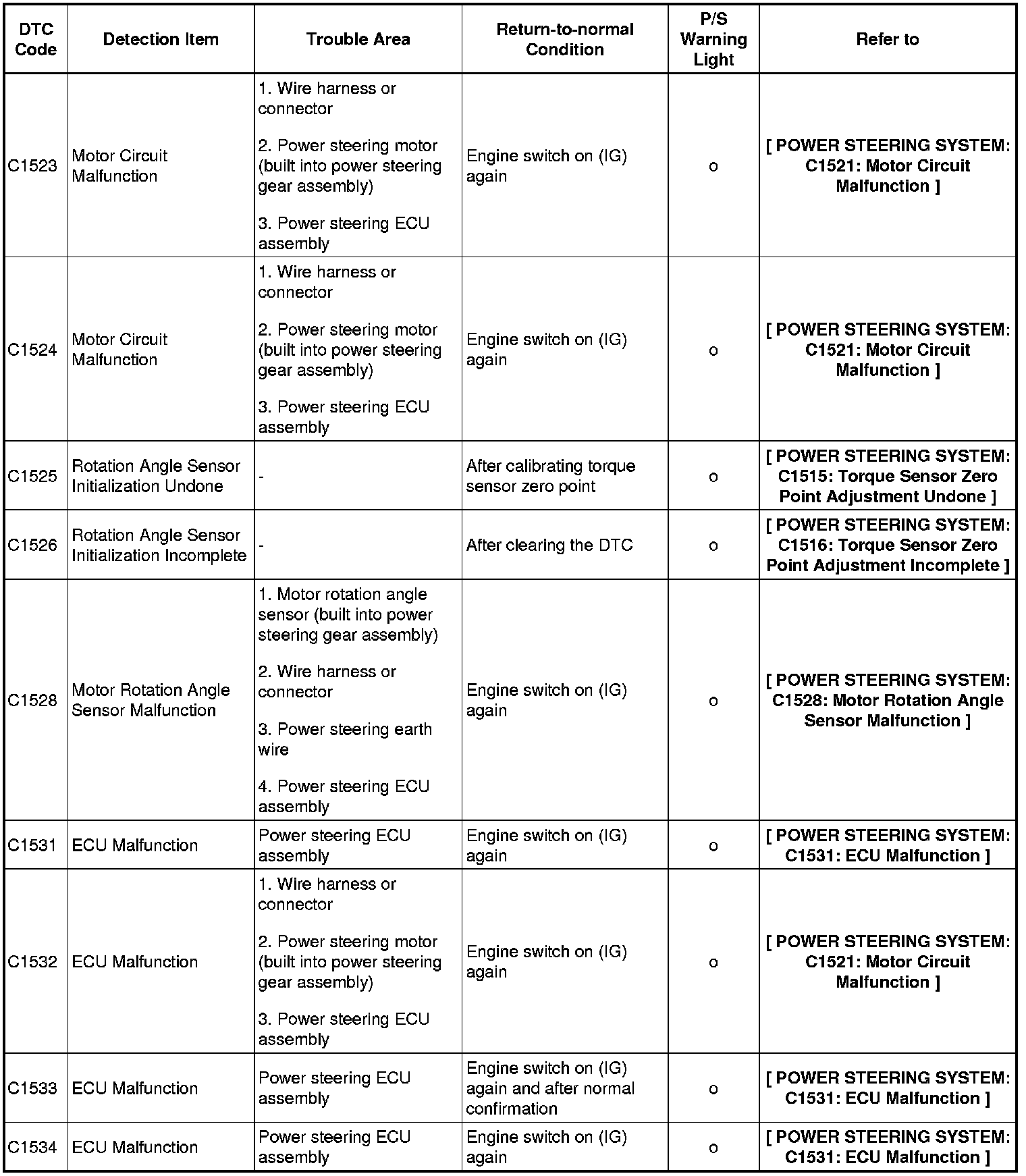

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the under respective "Refer to" in the DTC chart.

Power Steering System













HINT:
- o: Warning light comes on
- X: Warning light goes off (normal reset)
