Radio, Stereo, and Compact Disc: Locations

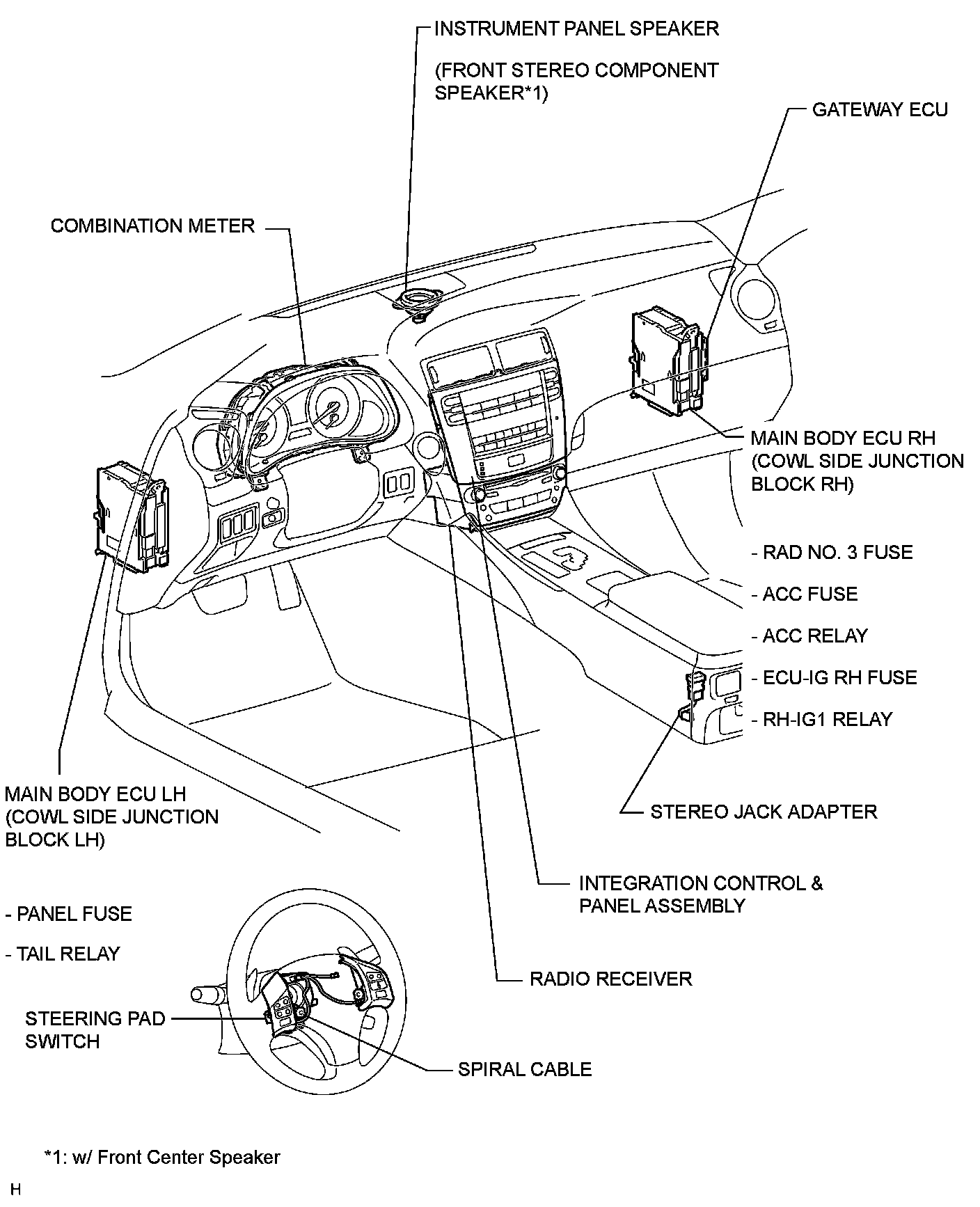

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: PARTS LOCATION

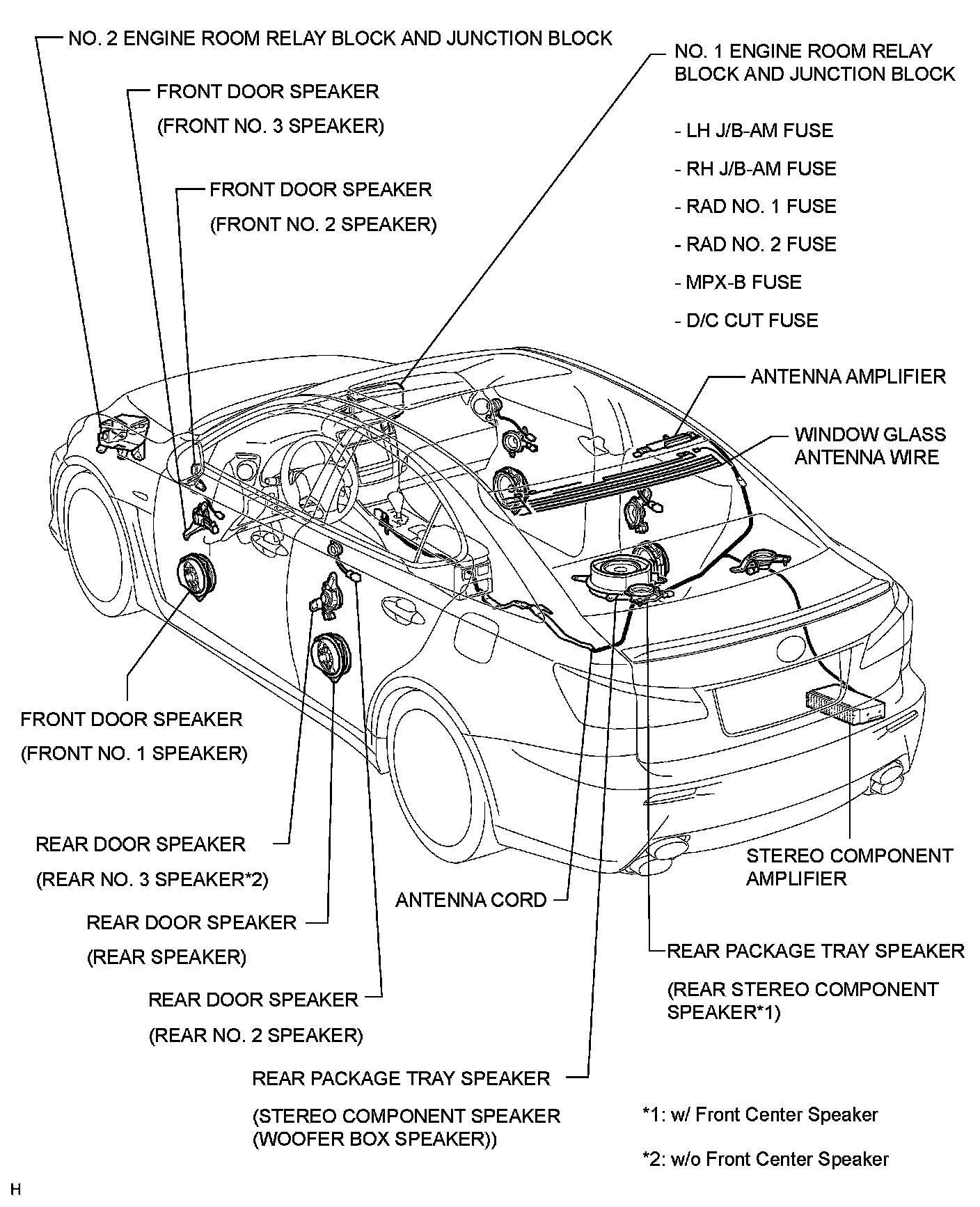

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: PARTS LOCATION

ILLUSTRATION
