Power Locks: Description and Operation

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM:










DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

1. FUNCTION OF MAIN COMPONENTS

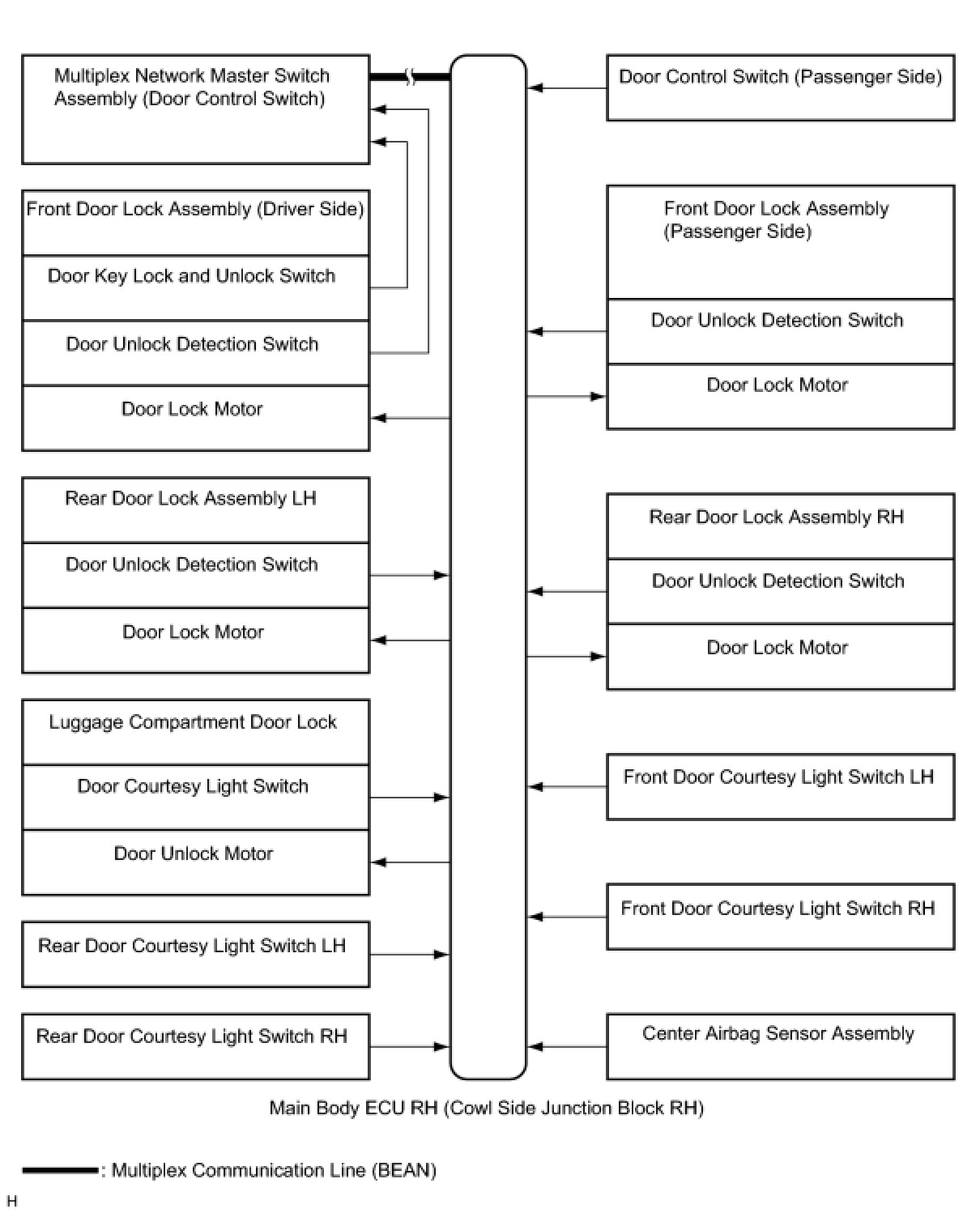

2. SYSTEM DESCRIPTION
(a) The power door lock control system locks/unlocks all doors.

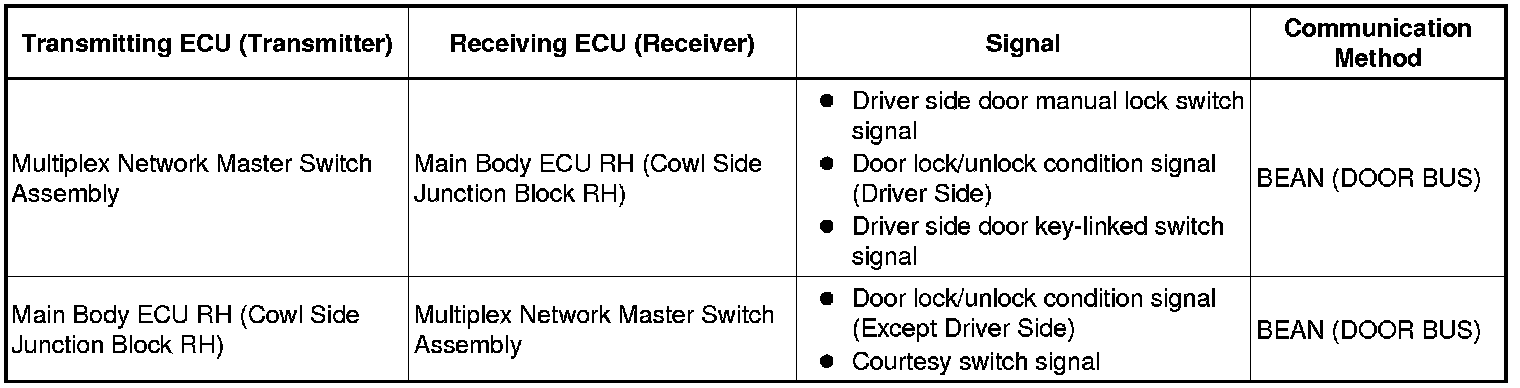

- The door control switch of the master switch uses the BEAN line to send lock/unlock request signals to the main body ECU RH (cowl side junction block RH).
- The driver door key cylinder lock/unlock request signals are sent to the main body ECU RH (cowl side junction block RH) from the front door lock LH.
- The passenger door control switch lock/unlock request signals are sent to the main body ECU RH (cowl side junction block RH).
- The main body ECU RH (cowl side junction block RH) receives the request signals and locks/unlocks each door.
The door control system has the following functions:





*: This function is set through the customize function, as it is off by default.
