Sunroof / Moonroof: Description and Operation

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM:

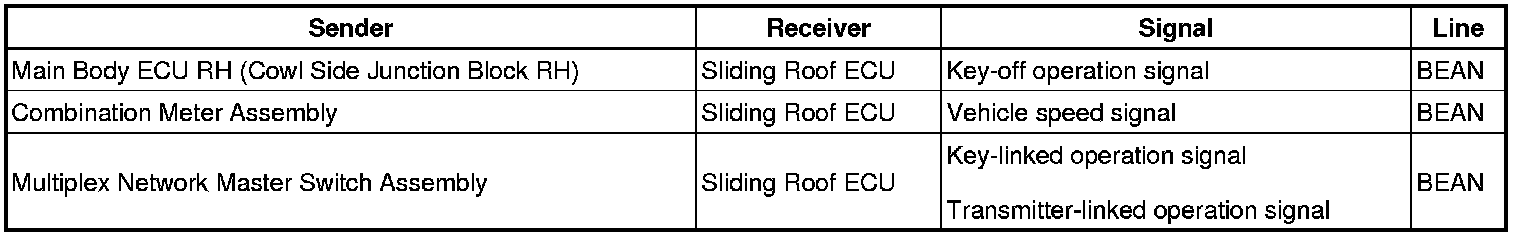

Communication Table

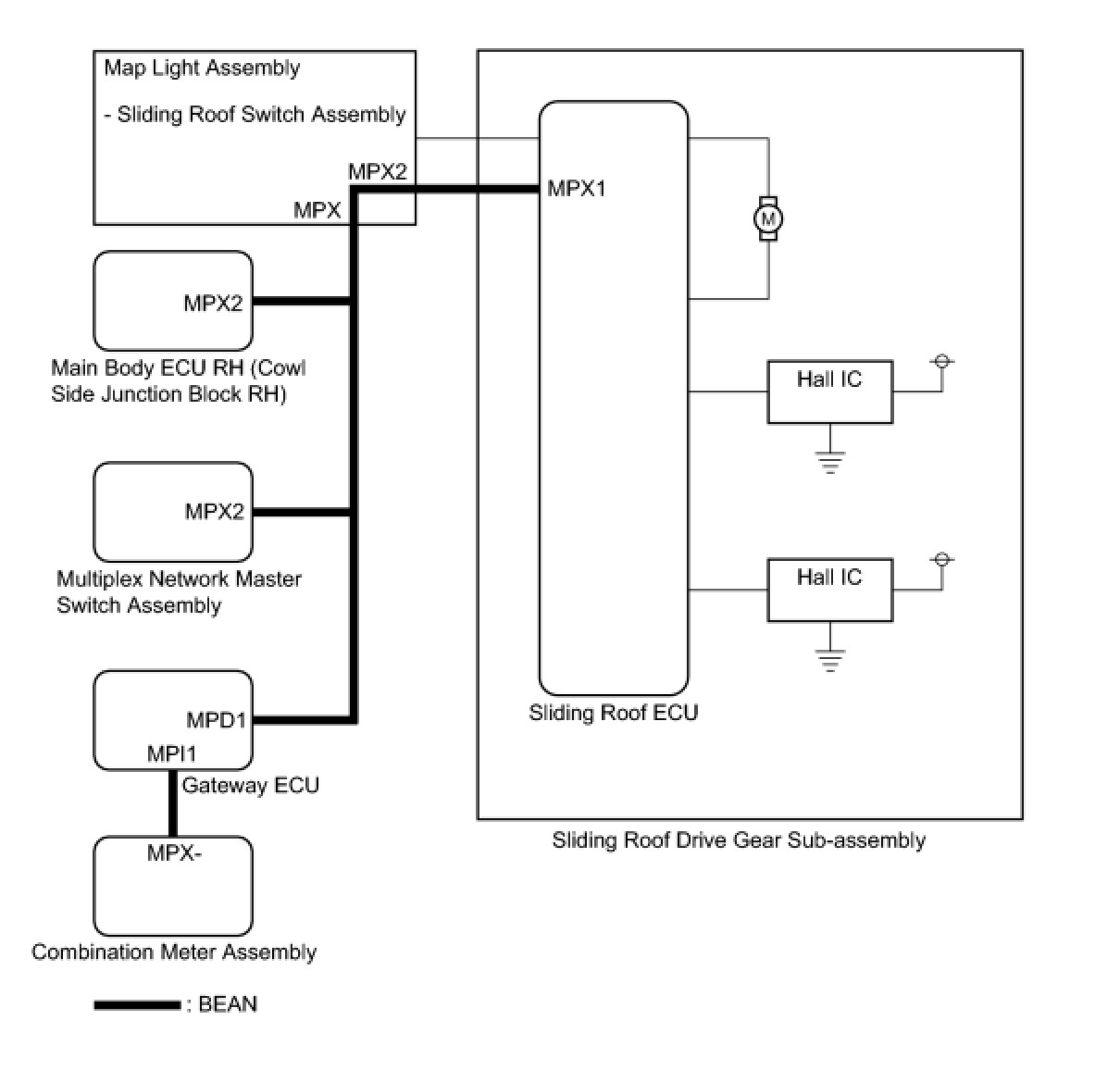

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

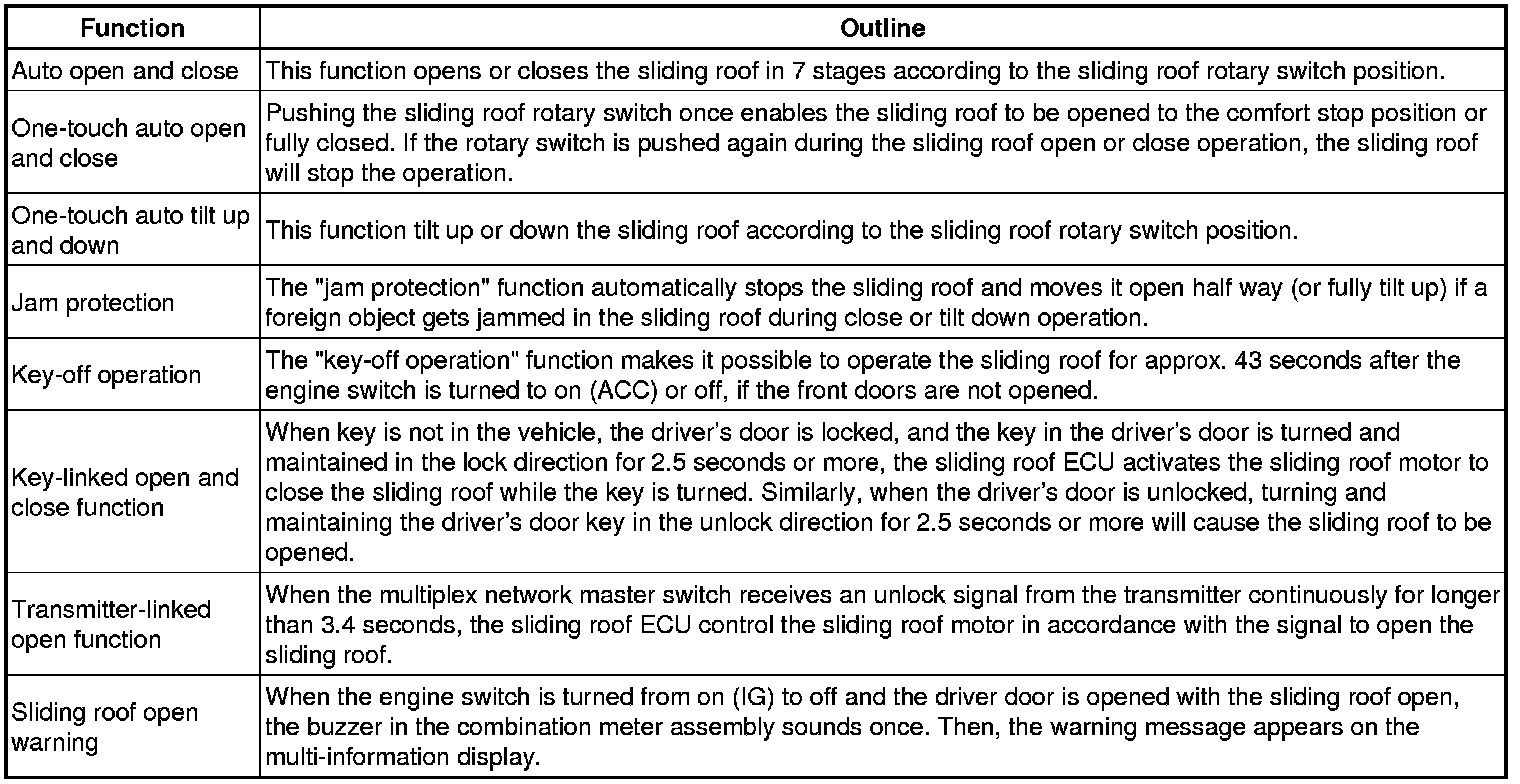

This system has the following functions: auto slide open and close; one-touch auto slide open and close; one-touch auto tilt up and down; jam protection; key off operation; key-linked open and close; and transmitter-linked open.
2. FUNCTION OF MAIN COMPONENT






3. SYSTEM OPERATION
The sliding roof has the following features.
