Driver/Vehicle Information Display
Driver/Vehicle Information Display

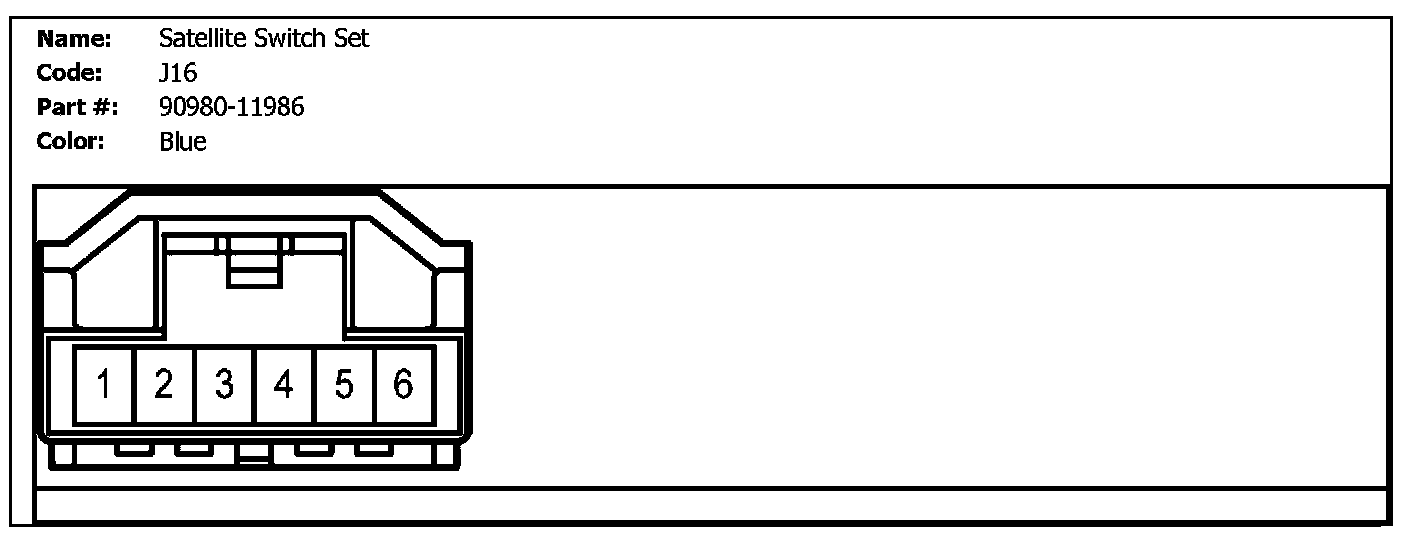

J16 (Satellite Switch Set):

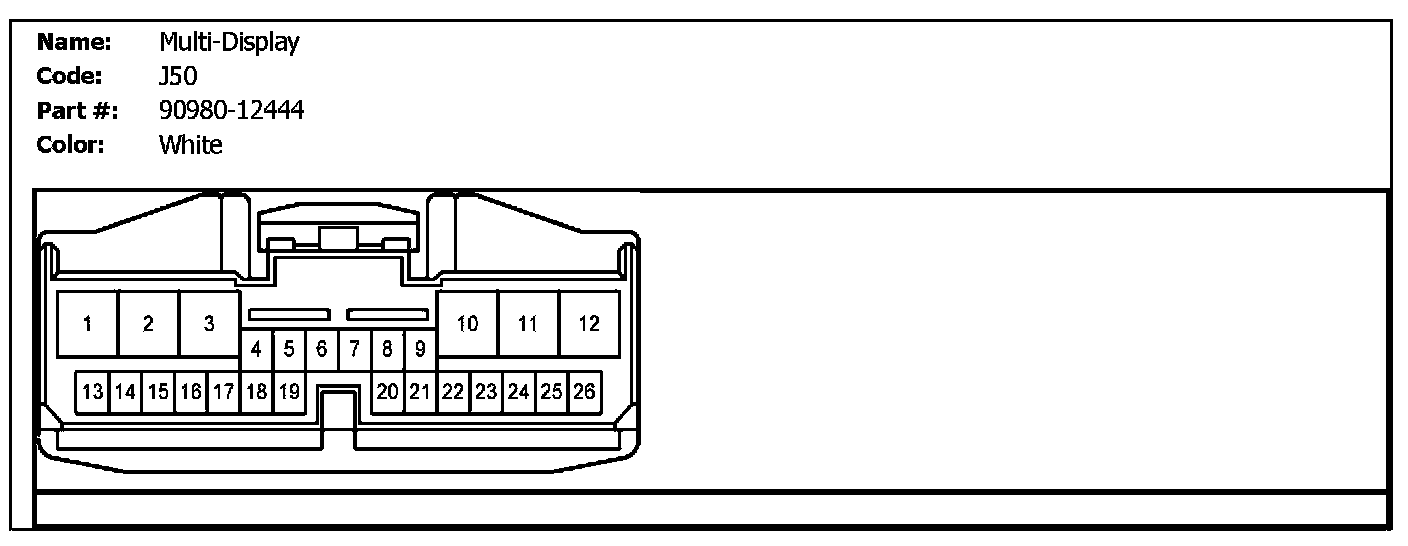

J50 (Multi-Display):
J51 (Multi-Display):

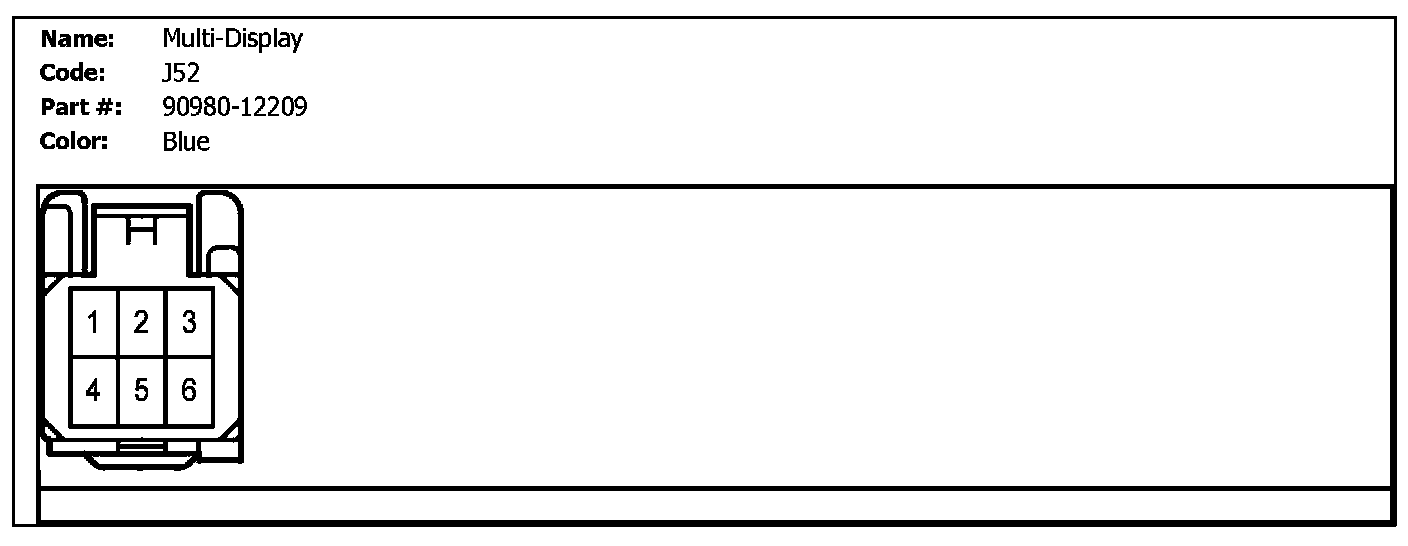

J52 (Multi-Display):

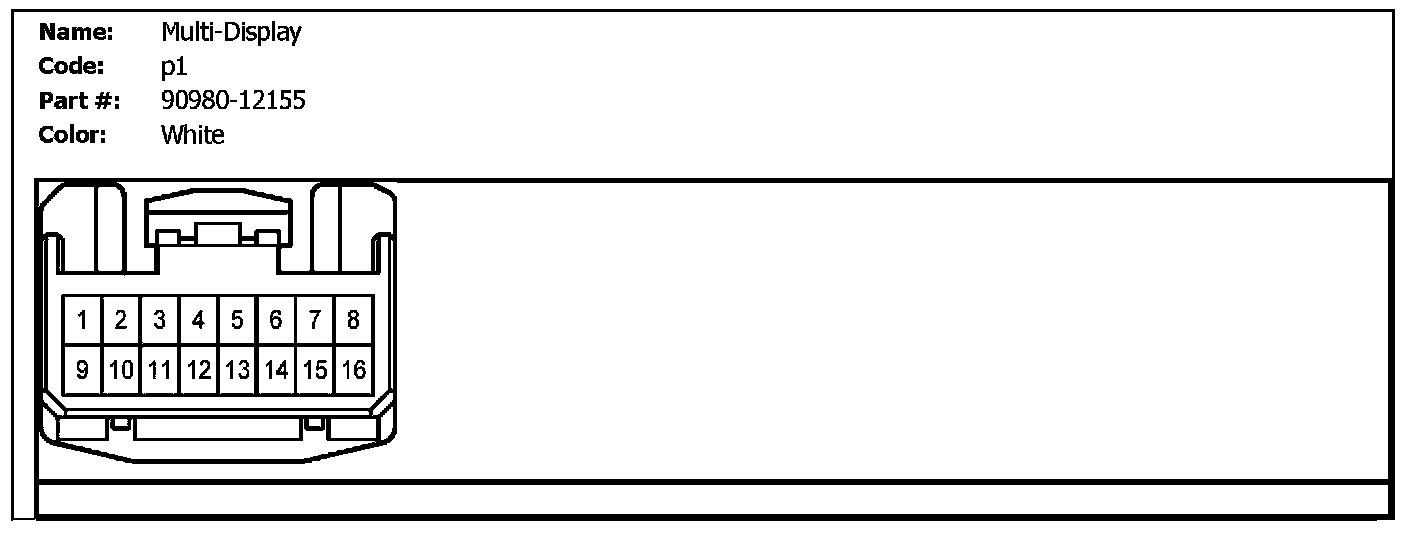

p1 (Multi-Display):
q1 (Multi-Display):
