Floor Wire

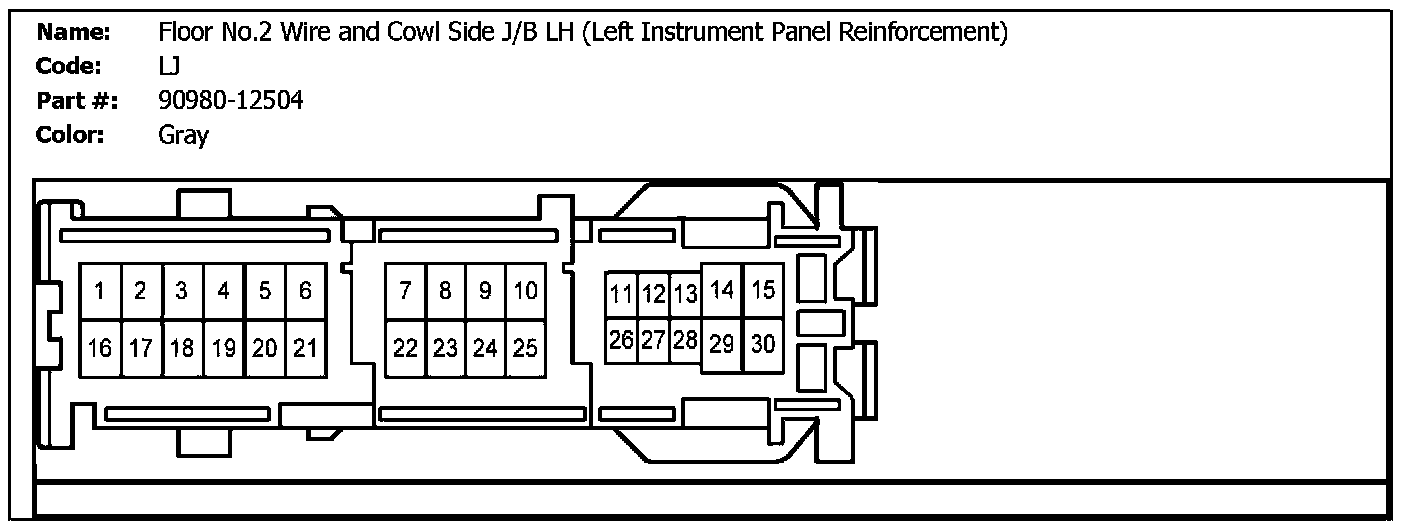

LJ (Floor No.2 Wire And Cowl Side J/B LH (Left Instrument Panel Reinforcement)):

Pc1 (Floor No.1 Wire And Front Seat RH Airbag Assembly (Under Front Seat Cushion RH)):

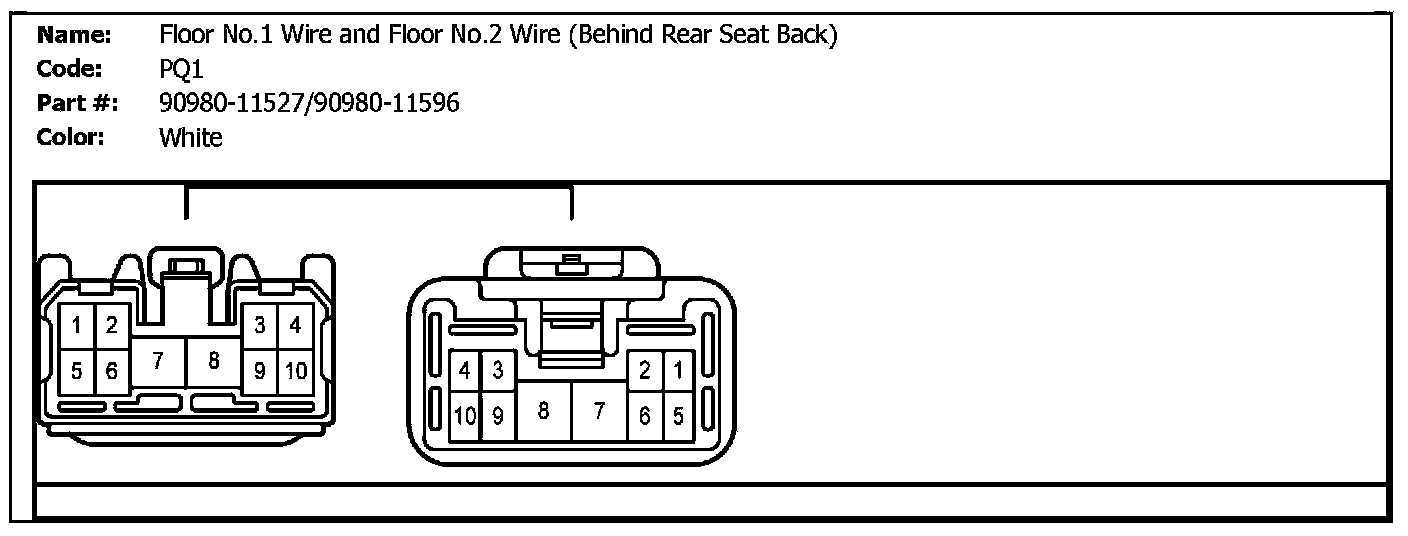

PQ1 (Floor No.1 Wire And Floor No.2 Wire (Behind Rear Seat Back)):

PQ2 (Floor No.1 Wire And Floor No.2 Wire (Behind Rear Seat Back)):

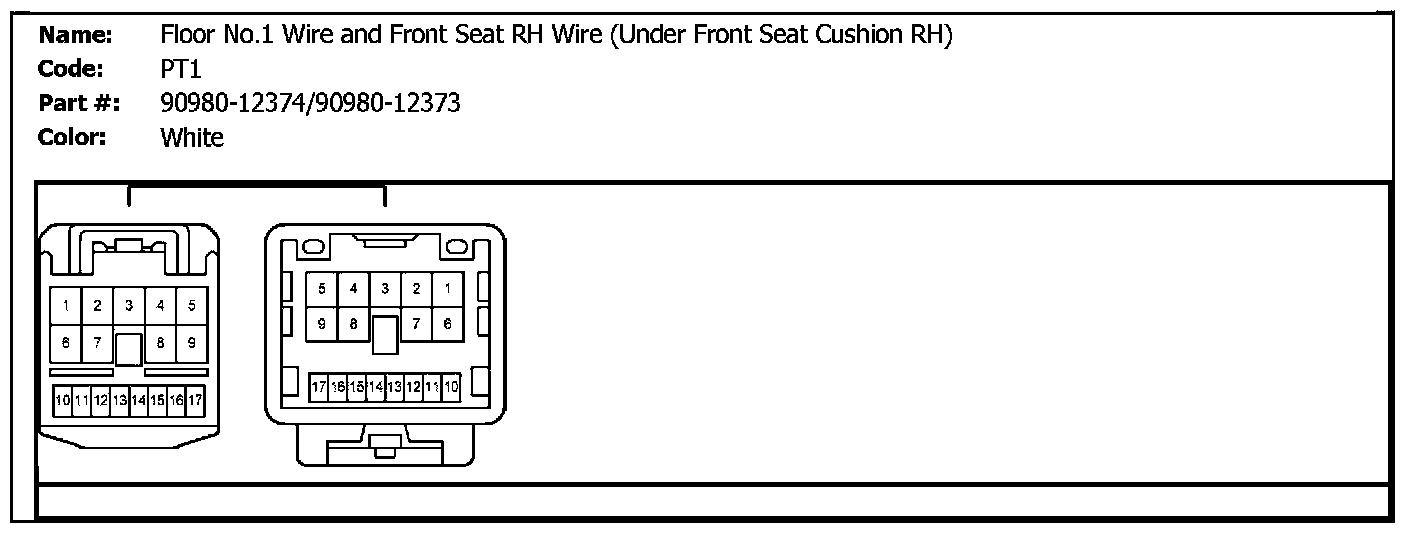

PT1 (Floor No.1 Wire And Front Seat RH Wire (Under Front Seat Cushion RH)):

PT2 (Floor No.1 Wire And Front Seat RH Wire (Under Front Seat Cushion RH)):

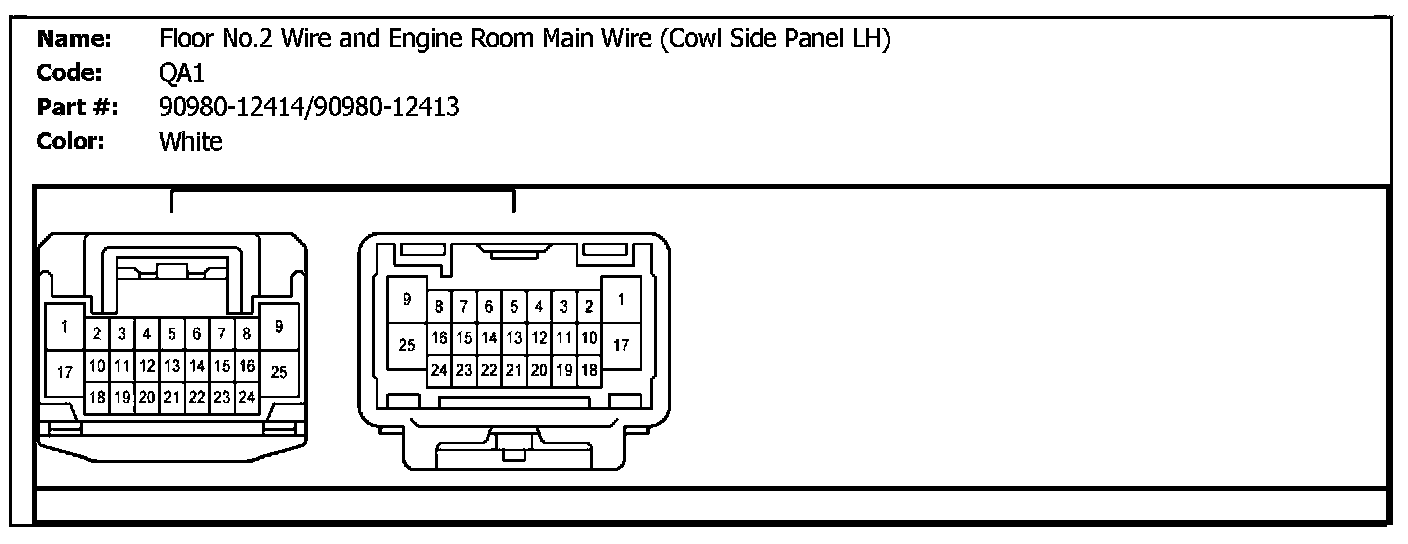

QA1 (Floor No.2 Wire And Engine Room Main Wire (Cowl Side Panel LH)):

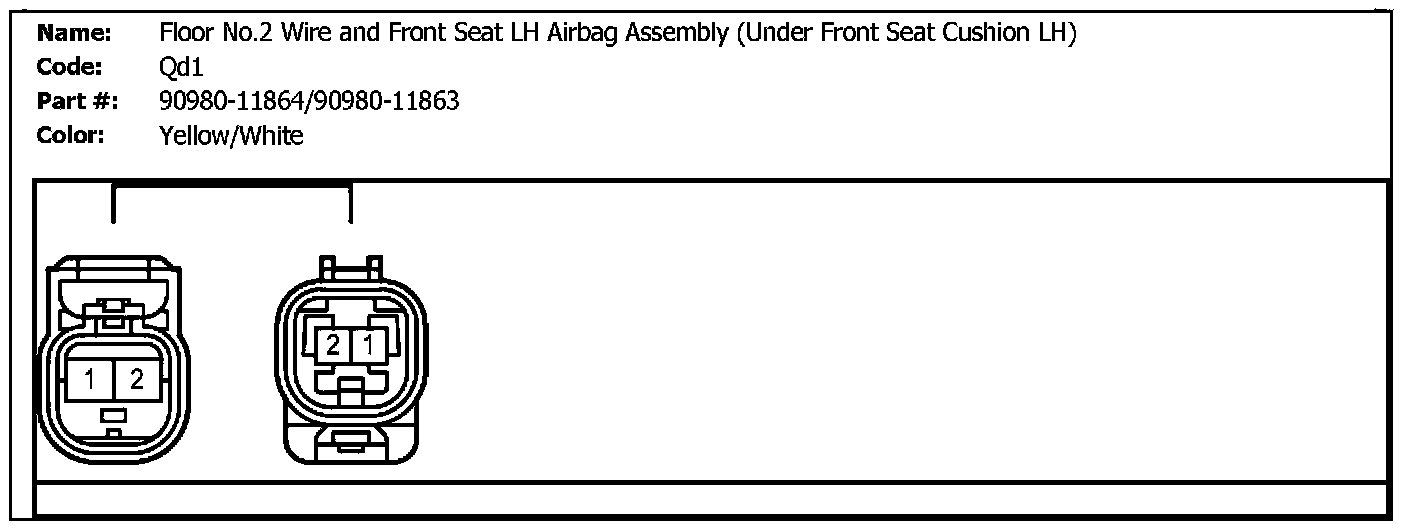

Qd1 (Floor No.2 Wire And Front Seat LH Airbag Assembly (Under Front Seat Cushion LH)):

RJ (Floor No.1 Wire And Cowl Side J/B RH (Right Instrument Panel Reinforcement)):
