Power Window Switch
Power Window Switch
L13 (Front Power Window Regulator Switch Assembly RH):

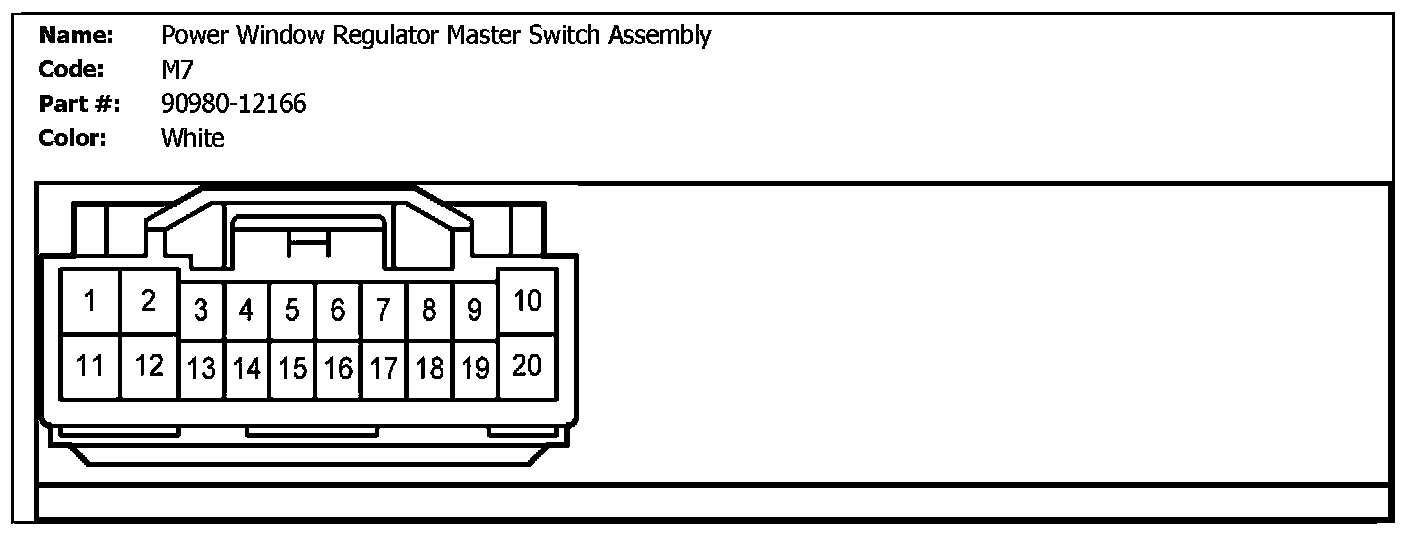

M7 (Power Window Regulator Master Switch Assembly):

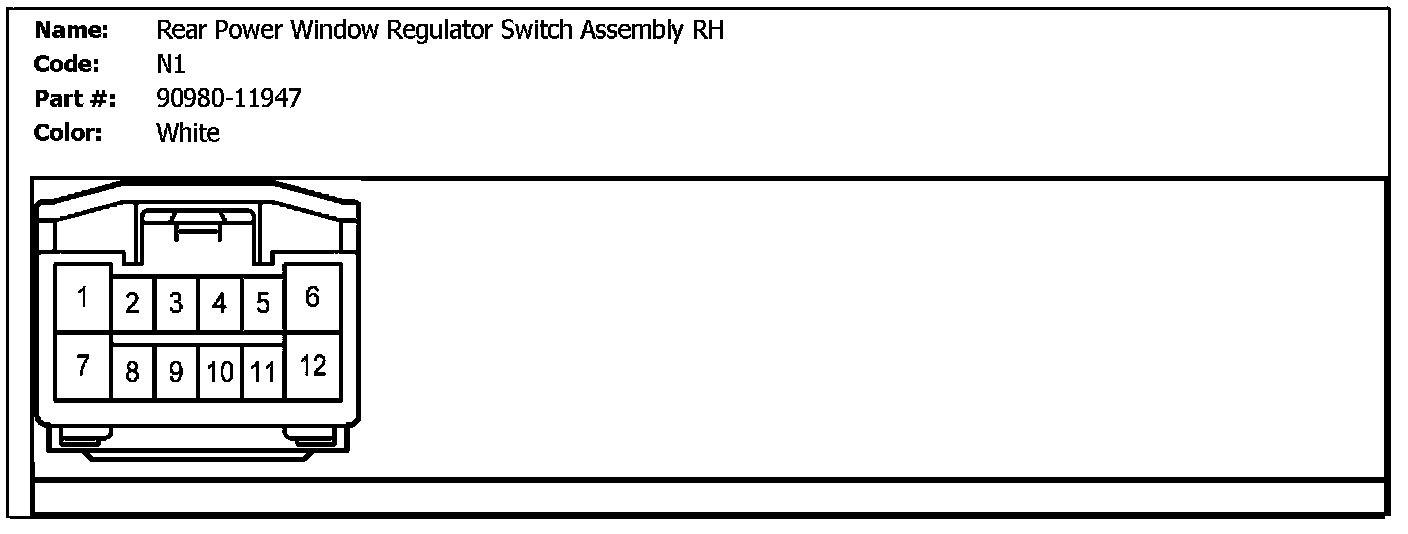

N1 (Rear Power Window Regulator Switch Assembly RH):

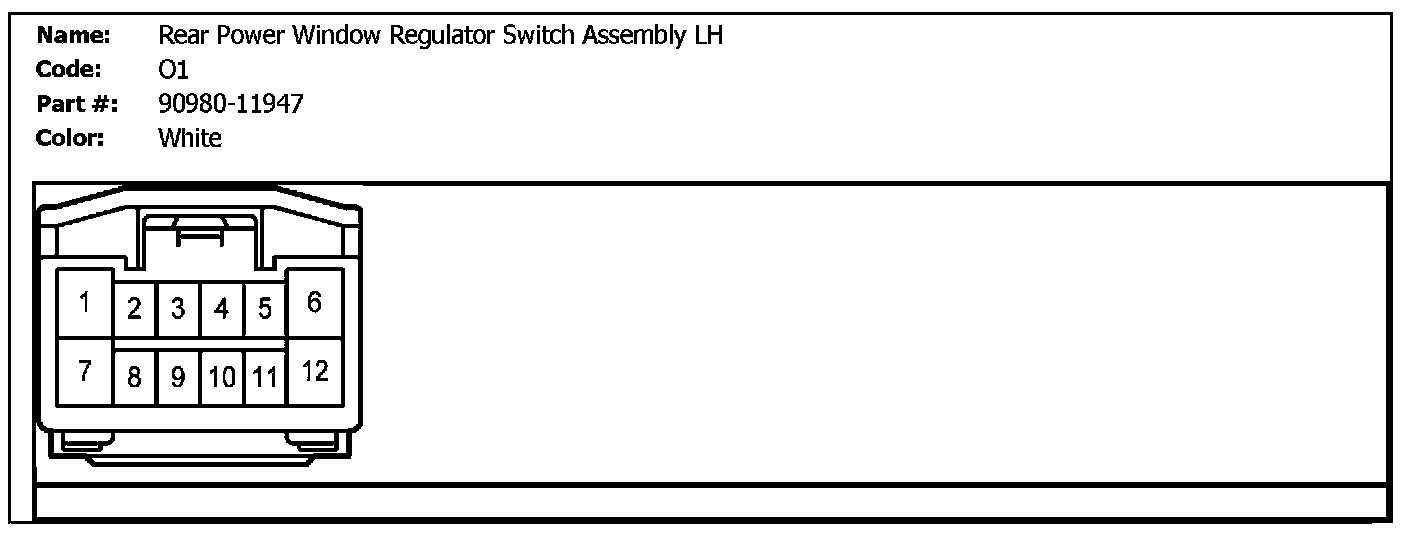

O1 (Rear Power Window Regulator Switch Assembly LH):
