Seat Fan
Seat Fan
T12 (Seat Cushion Climate Control Blower RH):

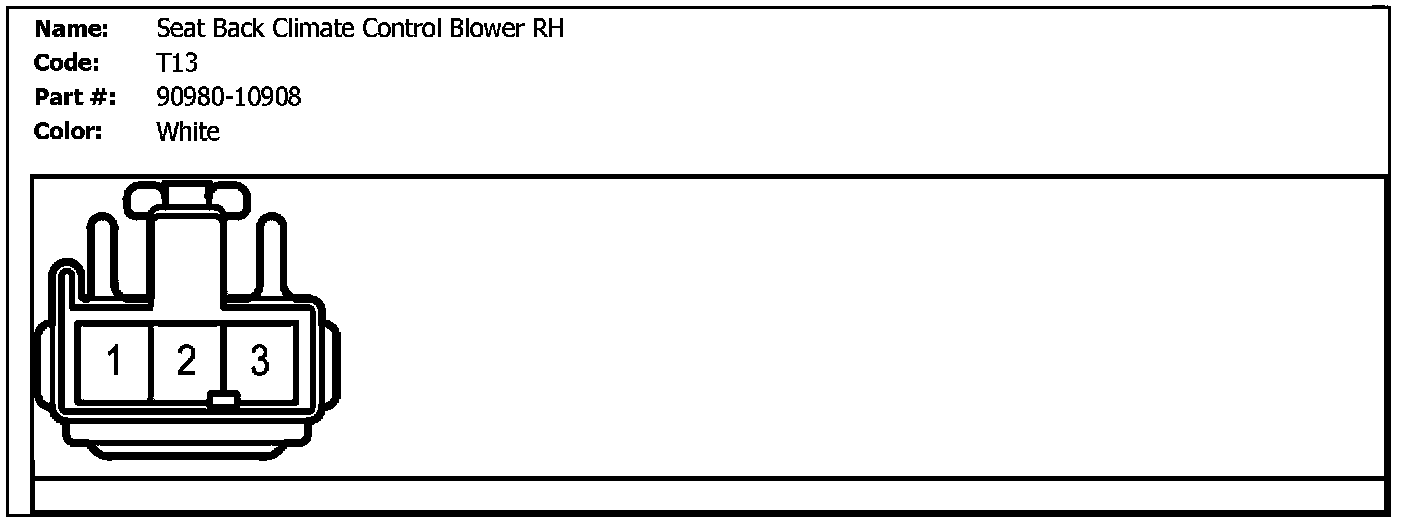

T13 (Seat Back Climate Control Blower RH):
U12 (Seat Cushion Climate Control Blower LH):

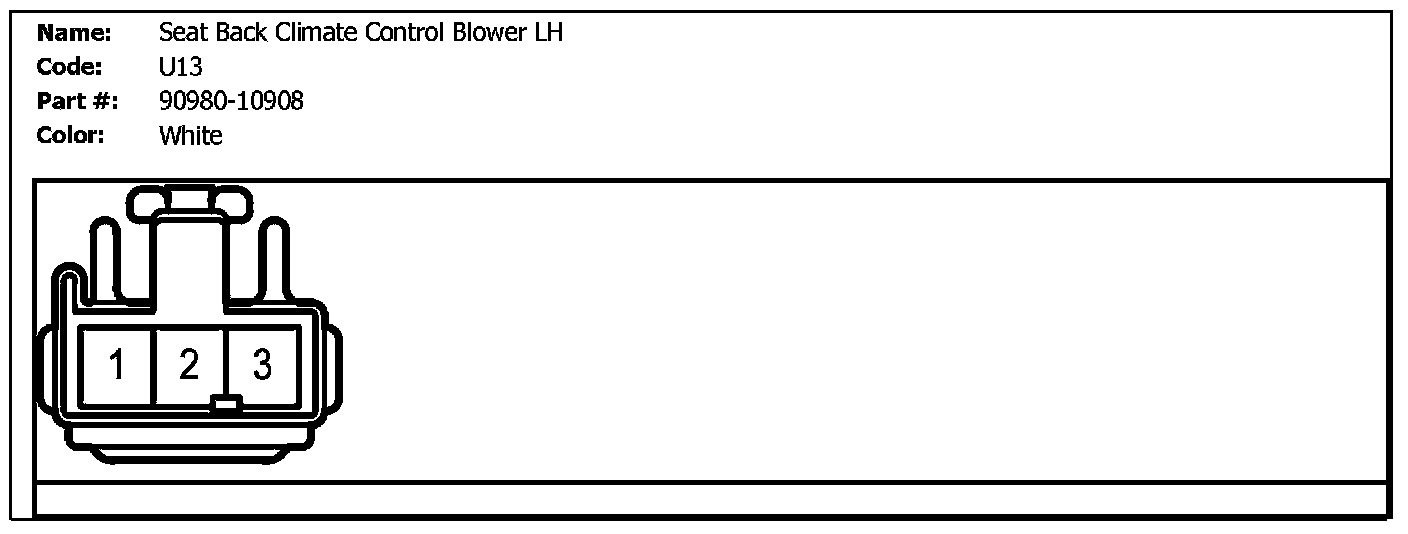

U13 (Seat Back Climate Control Blower LH):
