Wheel Speed Sensor

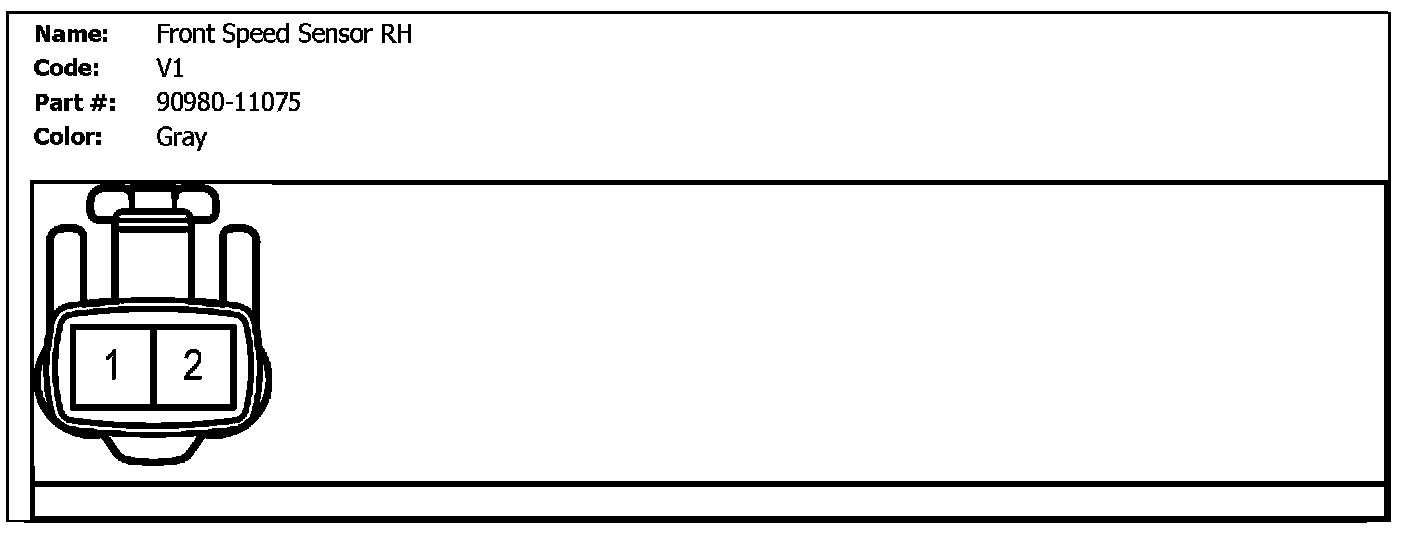

V1 (Front Speed Sensor RH):

VA1 (Skid Control Sensor Wire Front RH And Engine Room Main Wire (Front Fender Apron RH)):

W3 (Front Speed Sensor LH):

X1 (Rear Speed Sensor RH):

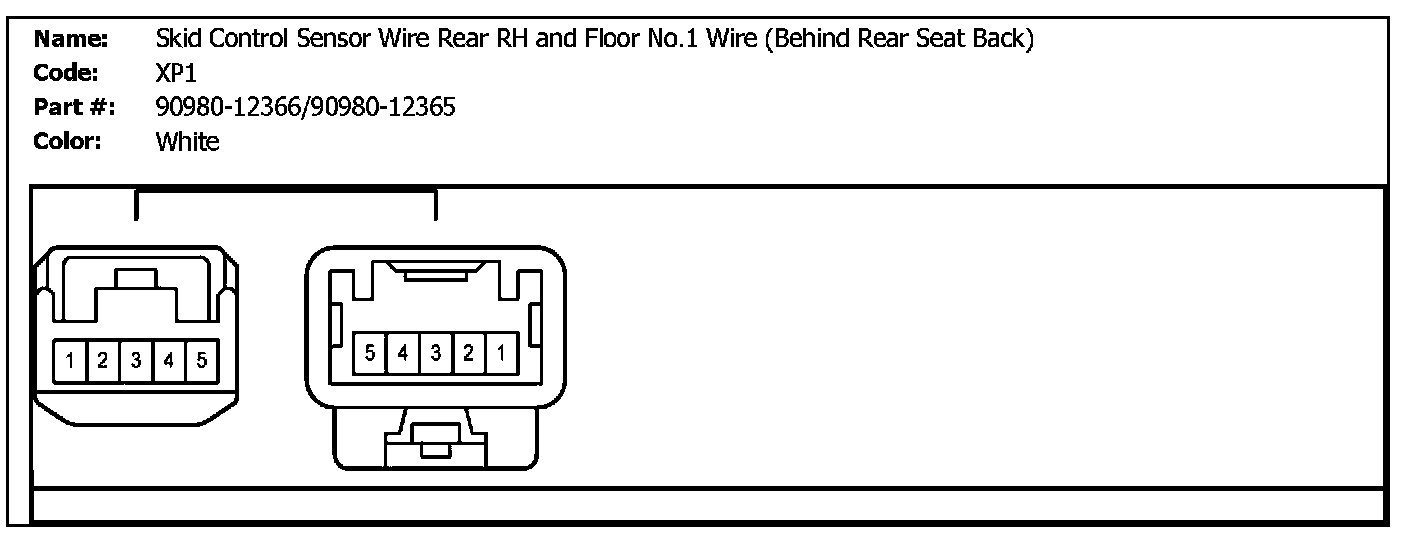

XP1 (Skid Control Sensor Wire Rear RH And Floor No.1 Wire (Behind Rear Seat Back)):

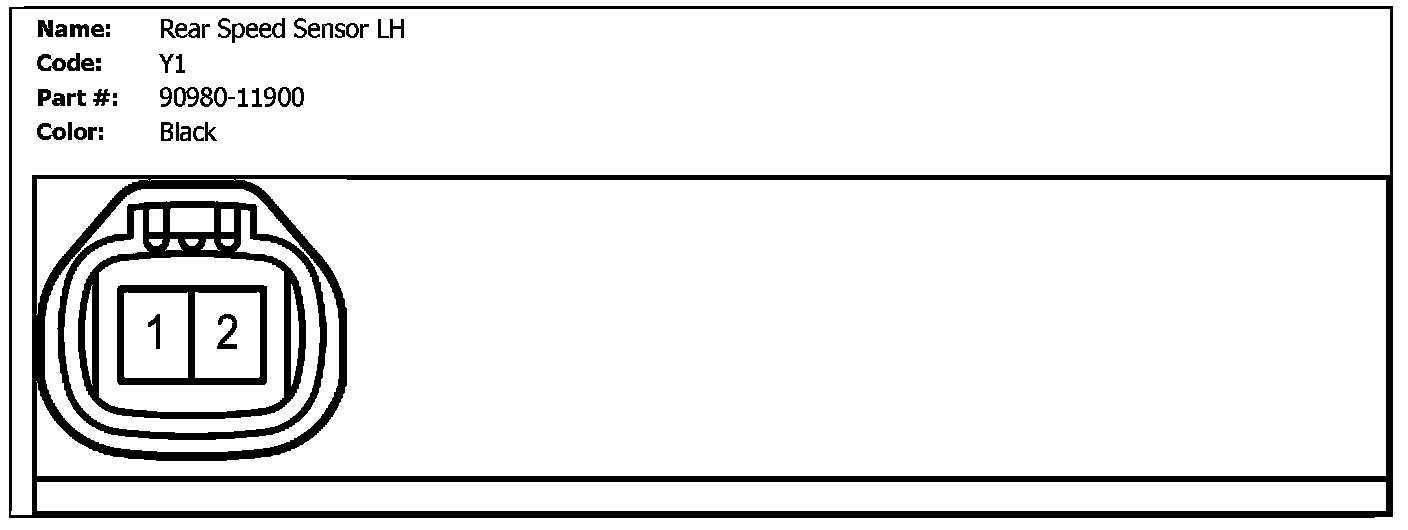

Y1 (Rear Speed Sensor LH):

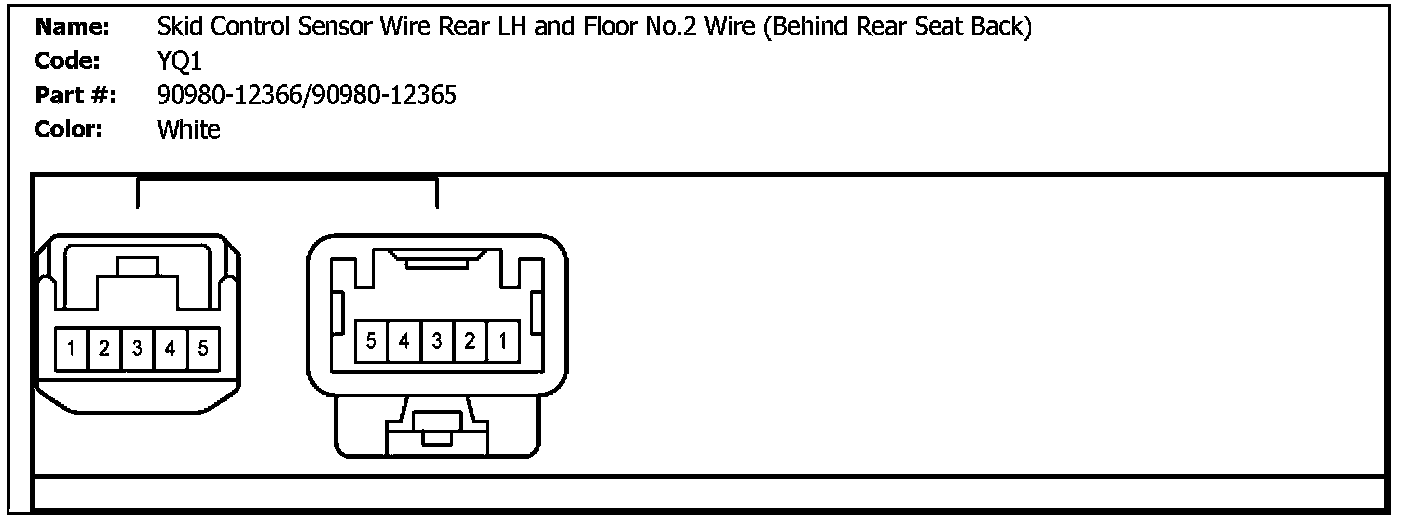

YQ1 (Skid Control Sensor Wire Rear LH And Floor No.2 Wire (Behind Rear Seat Back)):
