Radiator Cooling Fan: Locations

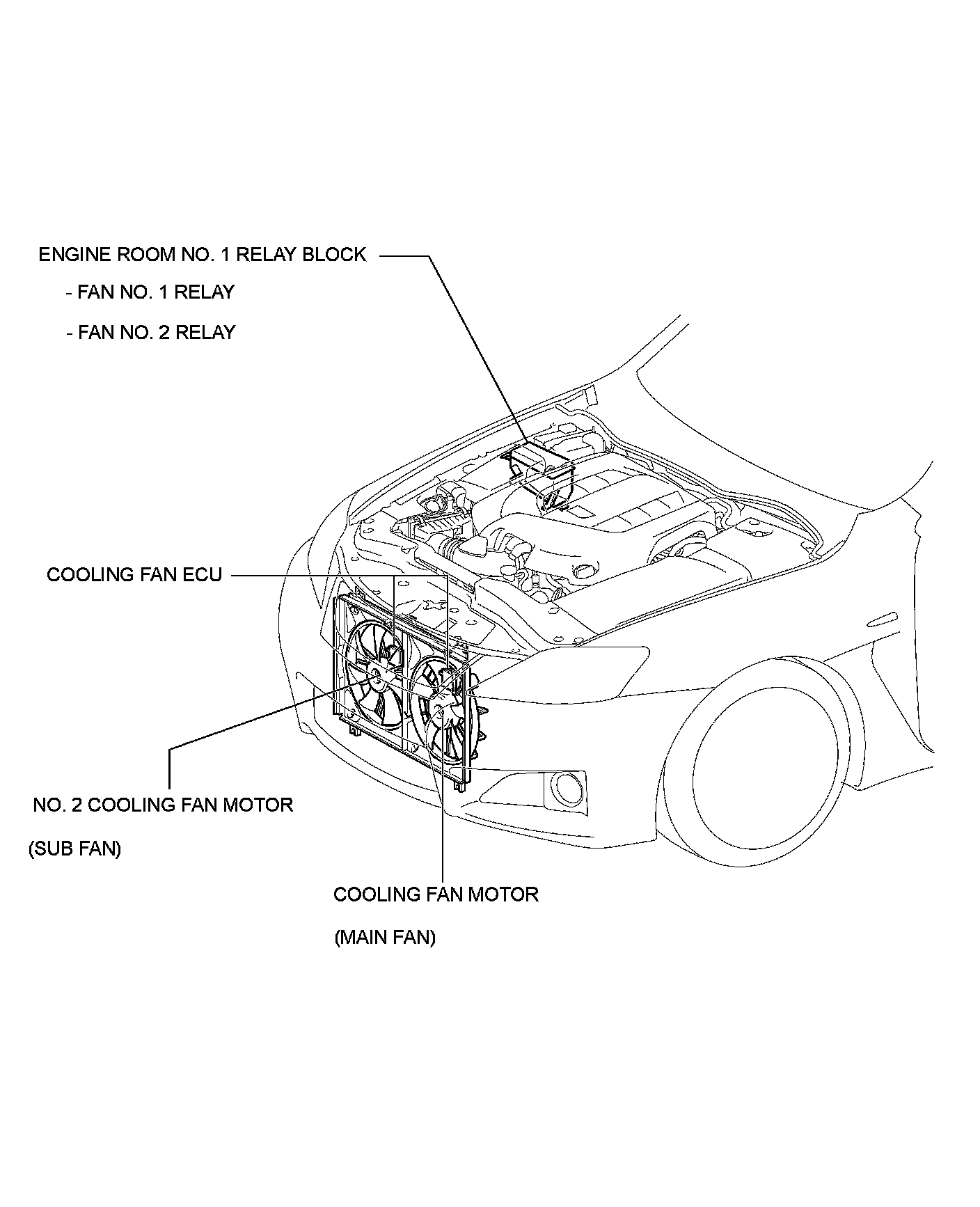

2UR-GSE COOLING: COOLING FAN SYSTEM: PARTS LOCATION

2UR-GSE COOLING: COOLING FAN SYSTEM: PARTS LOCATION

ILLUSTRATION
