HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSPECTION

HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSPECTION

1. INSPECT AMBIENT TEMPERATURE SENSOR






(a) Measure the resistance according to the value(s) in the table below.

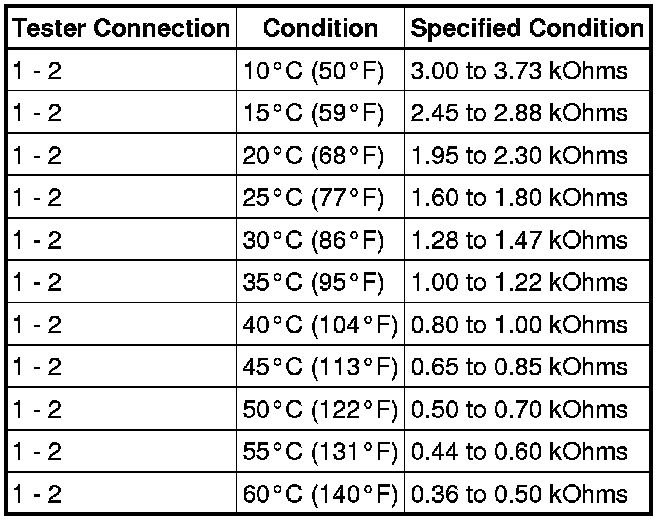

Standard Resistance:





NOTICE:
- Hold the sensor only by its connector. Touching the sensor may change the resistance value.
- When measuring, the sensor temperature must be the same as the ambient temperature.
HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance is not as specified, replace the ambient temperature sensor.
