Home >> Lexus >> 2008 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Clock >> Locations

Clock: Locations

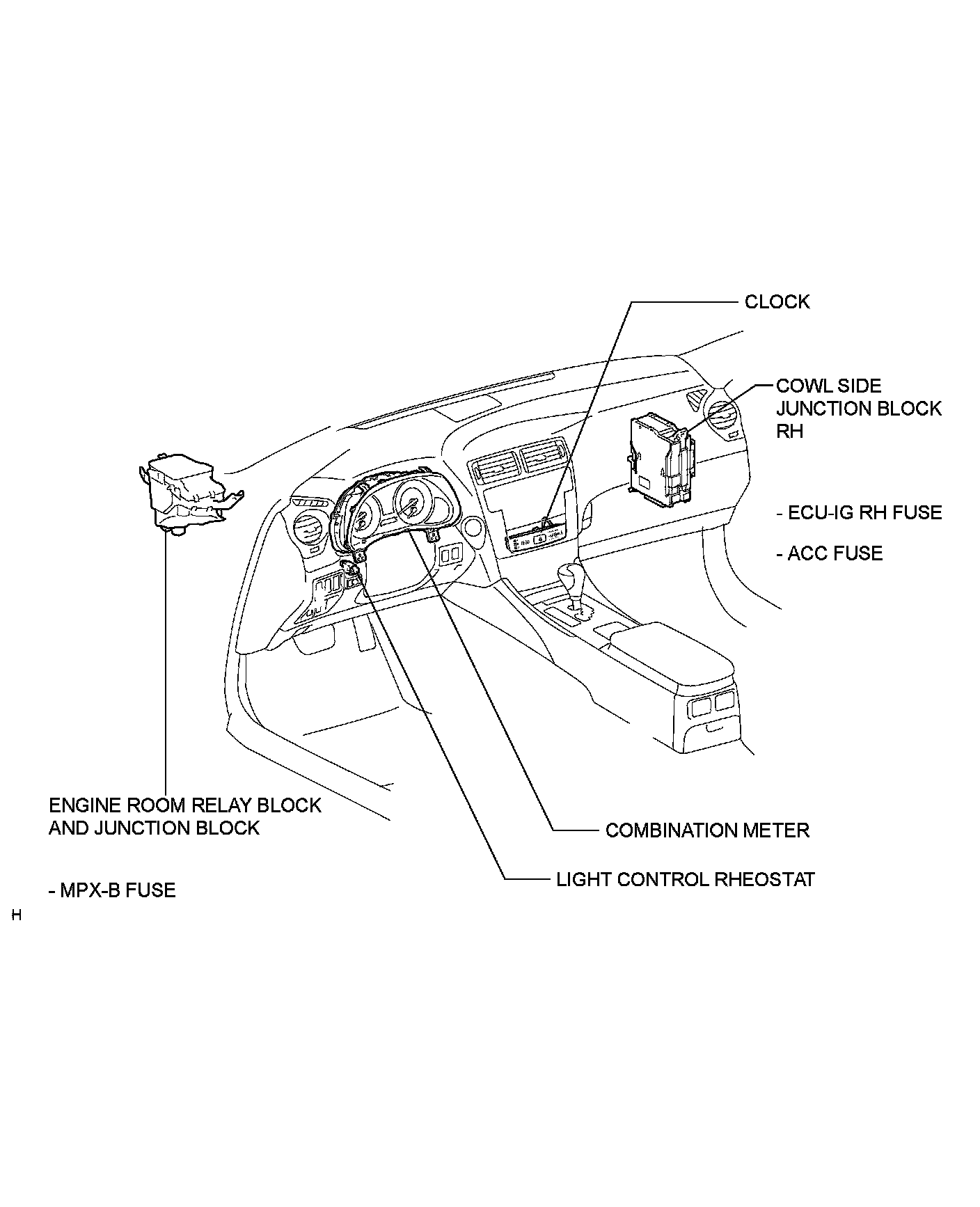

METER / GAUGE / DISPLAY: CLOCK SYSTEM: PARTS LOCATION

METER / GAUGE / DISPLAY: CLOCK SYSTEM: PARTS LOCATION

ILLUSTRATION
