Reassembly

INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

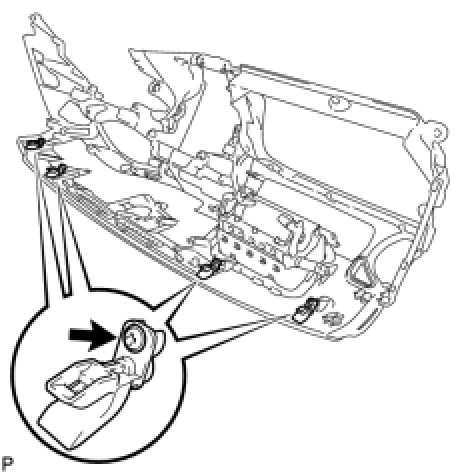

1. INSTALL NO. 1 INSTRUMENT PANEL PIN






(a) Install the 4 No. 1 instrument panel pins with the 4 screws [E].
2. INSTALL INSTRUMENT PANEL SPACER






(a) Install the instrument panel spacer.
3. INSTALL ENGINE SWITCH






(a) Engage the 2 claws and install the engine switch.
4. INSTALL AUTOMATIC LIGHT CONTROL SENSOR






(a) Engage the 2 claws and install the automatic light control sensor.
5. INSTALL DEFROSTER NOZZLE GARNISH






(a) Engage the 8 claws and 2 clips, and install the defroster nozzle garnish.
6. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation

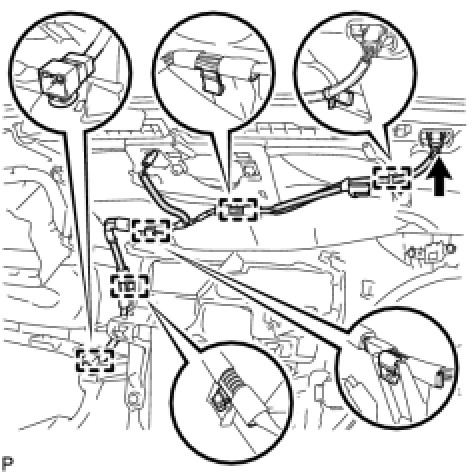

7. INSTALL NO. 2 INSTRUMENT PANEL WIRE






(a) Engage the 5 clamps.
(b) Connect the connector and install the No. 2 instrument panel wire.
8. INSTALL NAVIGATION ANTENNA ASSEMBLY Installation

9. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY Installation

10. INSTALL SIDE DEFROSTER NOZZLE






(a) Engage the 4 claws and install the side defroster nozzle.

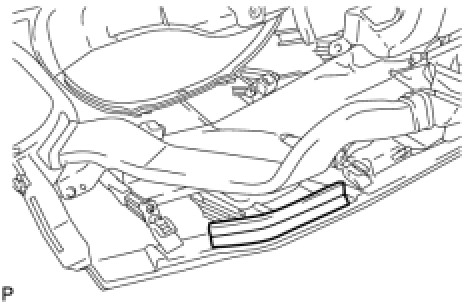

11. INSTALL NO. 2 HEATER TO REGISTER DUCT






(a) Install the No. 2 heater to register duct with the 4 screws [E].
12. INSTALL DEFROSTER NOZZLE ASSEMBLY






(a) Install the defroster nozzle assembly with the 3 screws [E].
13. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT






(a) Install the side No. 2 defroster nozzle duct with the screw [E].
14. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT






(a) Install the side No. 1 defroster nozzle duct with the screw [E].
15. INSTALL NO. 3 HEATER TO REGISTER DUCT






(a) Install the No. 3 heater to register duct with the 3 screws [E].
16. INSTALL NO. 1 HEATER TO REGISTER DUCT






(a) Install the No. 1 heater to register duct with the 3 screws [E].
